STA-RITE SERIES ABG - Electrical

Values given in table below are for PUMP MOTOR ONLY. If additional accessories are installed on pump
motor circuit (heater, blower, etc.), include their amperage draw when figuring wire and circuit breaker sizes.

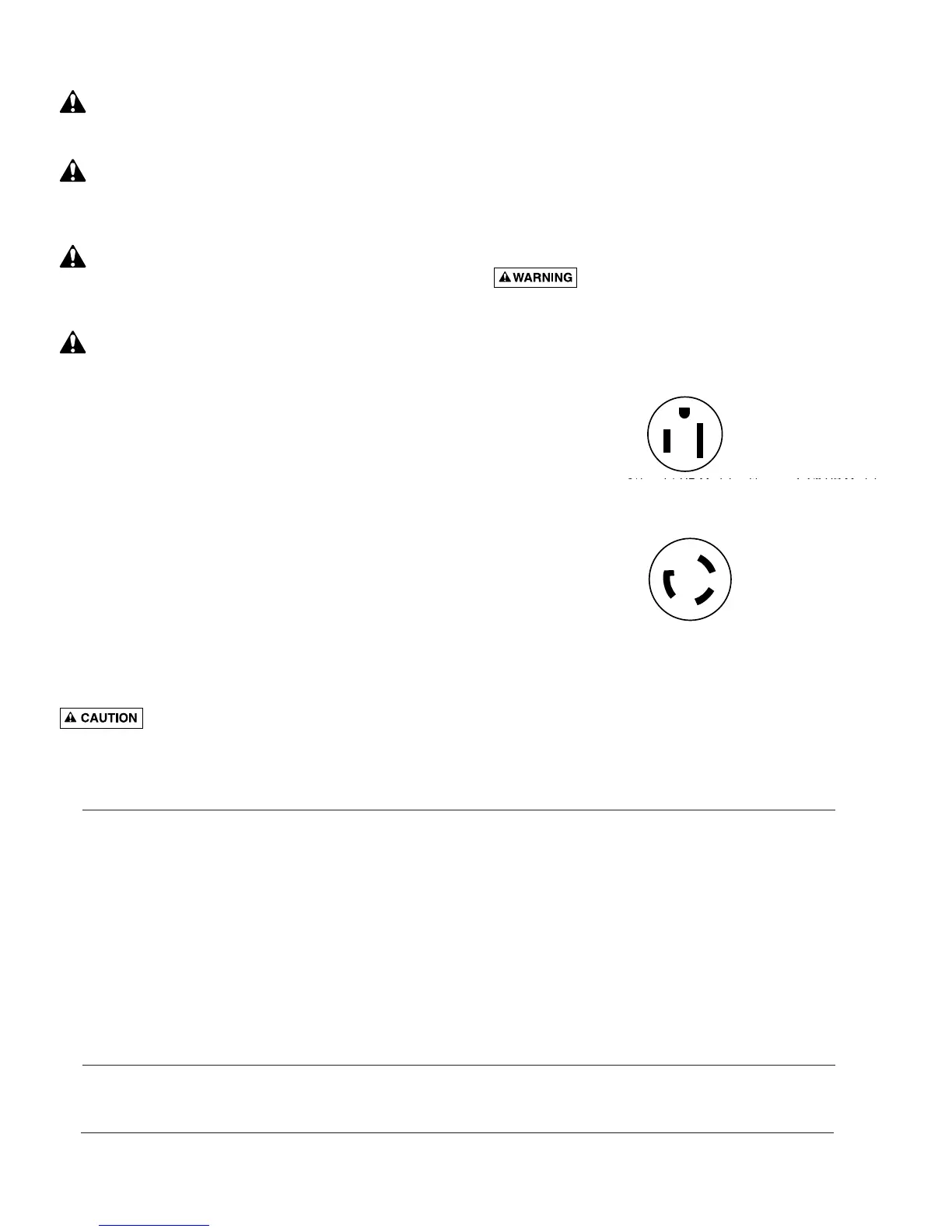

FIGURE 2 - Plug Configurations
3/4 and 1 HP Models with
1-1/2 HP Models w
“ABG” Models with -2A2, -2A4, -6A2 and -3A4 suffix
use 15-amp straight outlet.
“ABG” Models with -2A1 and -6A1 suffix use 20-amp twist-lock outlet.
1-1/2 HP Models with
NOTICE: Determine circuit breaker rating from Table I.
Determine correct outlet required from illustration below.
Model Number Branch Fuse Rating Amps* Max Load Amps Voltage/Hz/Phase
1-Speed
ABG4CL-6A_, ABG4C7L-6A_ 15 5.9 115/60/1
ABG4DL-6A_, ABG4D7L-6A_ 15 8.0 115/60/1
ABG4EL-6A_, ABG4E7L-6A_ 15 10.5 115/60/1
ABG4FL-6A_, ABG4F7L-6A_ 15 12.0 115/60/1
ABG4C, ABG4C7 15 8.0 115/60/1
ABG4D, ABG4DL, ABG4D7, ABG4D7L 15 9.0 115/60/1
ABGS4D, ABGS4D7 15 8.0 115/60/1
ABG4DC, ABG4D7C 15 9.4 115/60/1
ABG4E, ABG4EL, ABG4E7L, ABG4E7 15 12.0 115/60/1
ABGS4E, ABGS4E7 15 9.0 115/60/1
ABG4EC, ABG4E7C 15 11.9 115/60/1
ABG4F, ABG4F7 20 16.0 115/60/1
ABGS4FC, ABGS4F7C 15 11.9 115/60/1
ABGS4F, ABGS4F7 15 12.0 115/60/1
2-Speed
ABG4YD, ABGS4YE7 15 9.0/2.7 115/60/1
ABG4YE, ABG4YE7, ABGS4YF7 15 11.7/3.39 115/60/1
ABG4YF, ABG4YF7, ABGS4YG7 25 16.6/3.6 115/60/1
*Time delay fuses are recommended instead of standard fuses in any motor circuit.
RECOMMENDED FUSING DATA
4
ELECTRICAL
To avoid dangerous or fatal electrical shock,
turn OFF power to motor before working on
electrical connections.
Ground Fault Circuit Interrupter (GFCI) tripping
indicates an electrical problem. If GFCI trips and
will not reset, have a qualified electrician inspect and
repair electrical system.
Exactly match supply voltage to nameplate volt-
age! Incorrect voltage can cause fire or serious-
ly damage motor and voids warranty. If in doubt con-
sult a licensed electrician.
Plug cord of pump directly into a GFCI protected
receptacle.
Voltage:
Voltage at motor must be not more than 10% above or
below motor nameplate rated voltage or motor may over-
heat, causing overload tripping and reduced component
life. If voltage is less than 90% or more than 110% of
rated voltage when motor is running at full load, consult
power company.
Wiring:
Do not alter cord or plug on cord-connected units. Plug in
to a GFCI protected, grounded outlet only. If plug and
outlet do not match, consult a licensed electrician.
Table I, gives correct circuit breaker sizes for the pump
alone. If other lights or appliances are also on the same
circuit, be sure to add their amp loads to pump amp load
before figuring circuit breaker sizes. (If unsure how to do
this or if this is confusing, consult a licensed electrician.)
Use the load circuit breaker as the master on-off switch.
Install a Ground Fault Circuit Interrupter (GFCI) in circuit;
it will sense a short-circuit to ground and disconnect
power before it becomes dangerous to pool users. For
size of GFCI required and test procedures for GFCI, see
manufacturer’s instruction.
In case of power outage, check GFCI for tripping (which
will prevent normal pump operation). Reset if necessary.
NOTICE: If you do not use conduit when wiring motor, be
sure to seal wire opening on end of motor to prevent dirt,
bugs, etc., from entering.
Hazardous voltage. Can shock, burn, or cause
death. Plug pump into a grounded power supply. Do not alter
cord or plug.
