STA-RITE SLD - Page 10

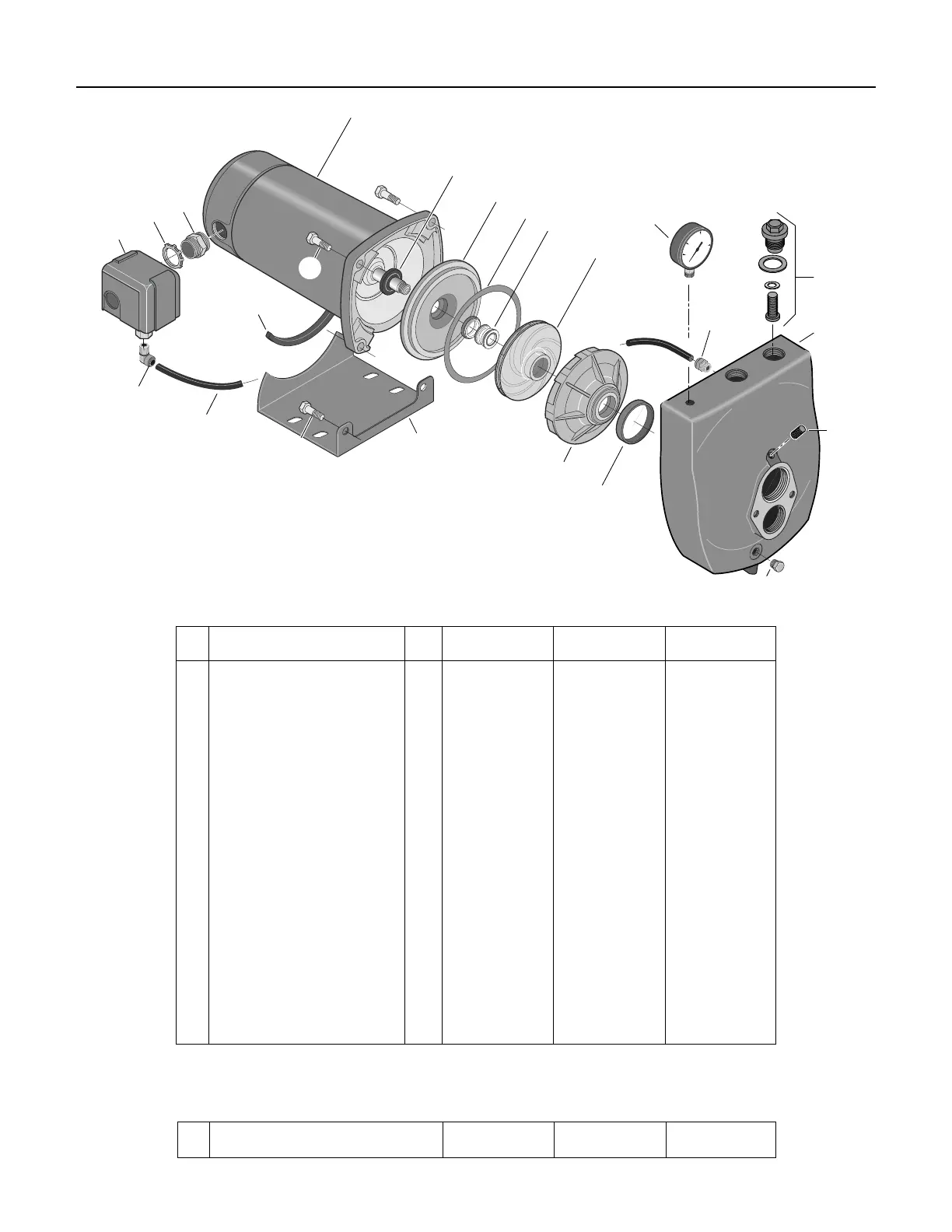

Repair Parts 10
1
2
3
4
5
6
7
8
16
17
18
19
20
21
15A
15
16
14
9
11
10
2879 0697
12
13
20
40
60
80
100
Key Part SLC-L SLD-L HLC-L
No. Description Qty. 1/2 HP 3/4 HP 1/2 HP
1 Motor 1 A100CLL A100DLL A100CHL
#§2 Water Slinger 1 17351-0009 17351-0009 17351-0009
3 Seal Plate 1 N3-9 N3-9 N3-9
#§4 Seal Plate Gasket 1 N20-35 N20-35 N20-35
#§5 Shaft Seal 1 U109-6A U109-6A U109-6A
#6 Impeller 1 J105-40P J105-86P J105-86P
#7 Diffuser 1 L1-25P L1-48P L1-48P
#§8 Diffuser Ring 1 L21-1 L21-1 L21-1
9 Quick Connect – Straight 1 U11-217P U11-217P U11-217P
10 Pressure Gauge 1 – – U239-2
11 Control Valve Assembly 1 01322 01322 01322
12 Pump Body 1 L76-48 L76-48 L76-48
13 Pipe Plug 1 U78-56ZPS U78-56ZPS U78-56ZPS
14 Drain Plug 1 U78-941ZPV U78-941ZPV U78-941ZPV
15 Base 1 J104-9C J104-9C J104-9C
15A Motor Pad 1 C35-5 C35-5 C35-5
16 3/8-16x1-1/4” Capscrew 4 U30-75ZP U30-75ZP U30-75ZP
17 Switch Tube 1 U37-672P U37-672P U37-672P
18 Quick Connect – Elbow 1 U11-218P U11-218P U11-218P
19 Pressure Switch 1 U217-1225 U217-1225 U217-1216
20 Lock Nut 1 U36-112ZP U36-112ZP U36-112ZP
21 Connector 1 L43-5C L43-5C L43-5C
• Plug 1 U78-941ZPV U78-941ZPV –
Repair Parts – Cast Iron Jet Pumps
SERVICE KITS
§ Seal and Gasket Kit PP1551 PP1551 PP1551
# Overhaul Kit PP1560 PP1565 PP1566
NOTE: § Included in Seal and Gasket Kit. # Included in Overhaul Kit.
• Not illustrated.
