* Not available separately. • Not illustrated.
** See Page 5-5 Key Nos. 7, 8, 9 and 10 for Safeties and Relief Valve Plug.
Model
SR400NA
SR200NA SR333NA SR400LP
SR200LP SR333LP SRC400NA
Key SRC200NA SRC333NA SRC400LP
No. Part Description Qty. SRC200LP SRC333LP SR400HD

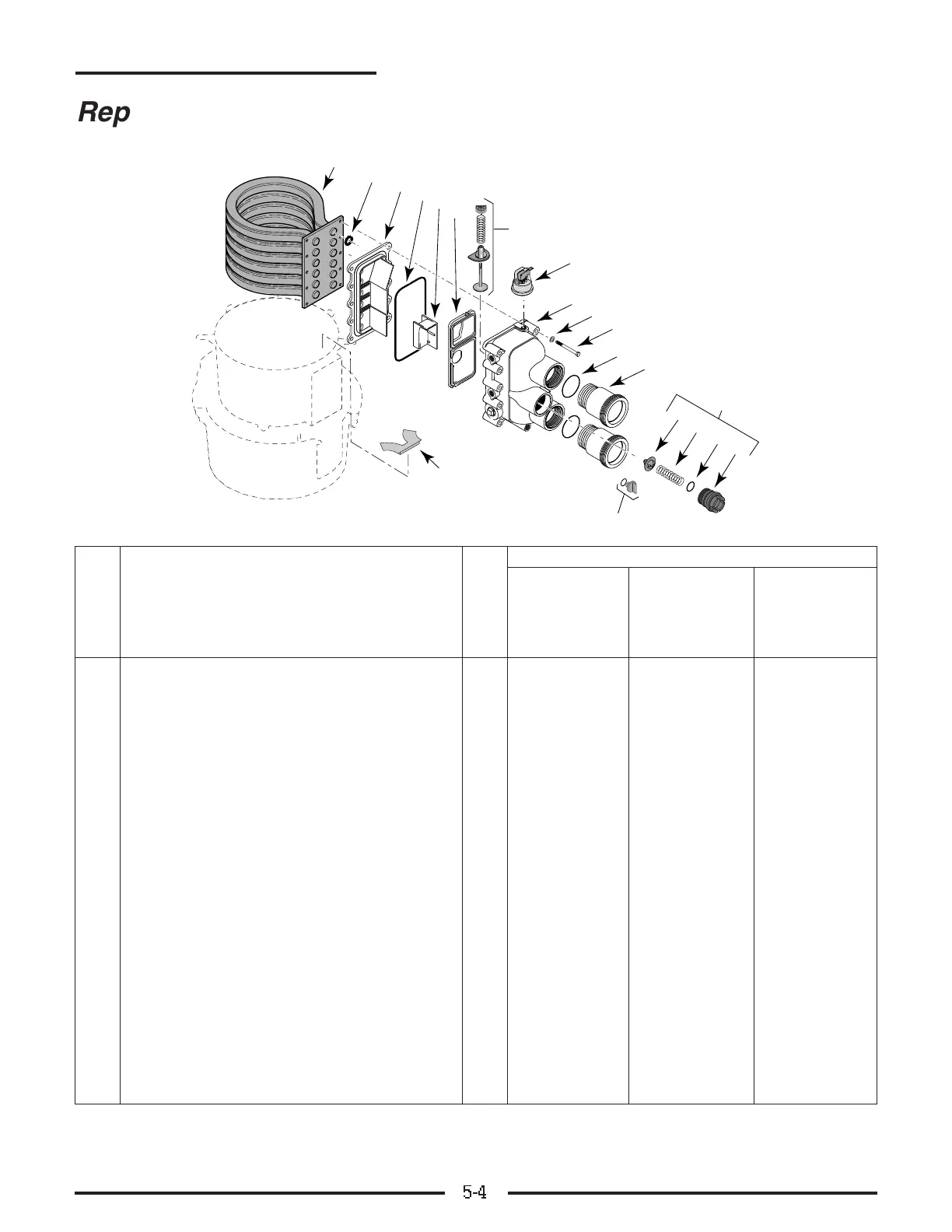

1 Tube Sheet Coil Assembly Kit – NA and LP Series 1 77707-0232 77707-0233 77707-0234
(Includes Key No. 2)
1 Tube Sheet Coil Assembly Kit – HD Series 1 – – 77707-0244
(Includes Key No. 2)
2 Coil/Tubesheet Sealing O-Ring Kit ( ) 77707-0117(6) 77707-0118(10) 77707-0119(12)
3 Manifold Bottom Plate 1 42002-0015 42002-0016 42002-0017
4 Manifold O-Ring* 1 35505-7437 35505-7437 35505-7437
• O-Ring Kit (Incl. Key Nos. 2, 4) 1 77707-0120 77707-0120 77707-0120
5 Manifold Insert* 1 42002-0018 42002-0019 42002-0020
6 Manifold Baffle Plate* 1 42002-0013 42002-0014 42002-0022
7 Manifold Bypass Valve Kit 1 77707-0001 77707-0001 77707-0001
8 Water Pressure Switch 1 42001-0060S 42001-0060S 42001-0060S
9 Manifold Body with Safeties** (Incl. Key Nos. 10, 11) 1 77707-0205 77707-0205 77707-0205
9 Manifold Body Only (Incl. O-Ring Kit) 1 77707-0206 77707-0206 77707-0206
10 5/16 Flat Washer 10 U43-41SS U43-41SS U43-41SS
11 5/16-18x2-3/4” Hex Capscrew 10 37007-0214 37007-0214 37007-0214
12 Connector Tube O-Ring 1 U9-226 U9-226 U9-226
13 Connector Tube Kit (Includes O-Ring) 1 77707-0017 77707-0017 77707-0017
14 Thermal Regulator Kit
(Incl. Key Nos. 15, 16, 17, 18 and Spring Clip) 1 77707-0010 77707-0010 77707-0010
15 Thermal Regulator (Includes Spring Clip) 1 38000-0007S 38000-0007S 38000-0007S
16 Thermal Regulator Spring* 1 37607-0011 37607-0011 37607-0011
17 Thermal Regulator Cap O-Ring 1 35505-1313 35505-1313 35505-1313
• Thermal Regulator Spring Clip* 1 42001-0097 42001-0097 42001-0097
18 Thermal Regulator Cap* 1 42001-0016 42001-0016 42001-0016
19 Drain Plug 1 U178-920P U178-920P U178-920P
20 Condensate Evaporator* 1 42001-0031 42001-0031 42001-0031
