STA-RITE Swimming Pool Filter - Repair Parts List - Modular Media System; Filter System Parts

15
OUTLET
OUTLET
INLET
INLET
RELEASE
RELEASE
1
8
2
3
4
5
5
6
6
7
2159 1295
Model No.
PLM100JWAE-03 PLM100JWAF-03 PLM150JWAE-03 PLM150JWAF-03
PLM100JWAE-04 PLM100JWAF-04 PLM150JWAE-04 PLM150JWAF-04
PLM100JWAE-06 PLM100JWAF-06 PLM150JWAE-06 PLM150JWAF-06
Key Part PLM100JWAE-12 PLM100JWAF-12 PLM150JWAE-12 PLM150JWAF-12
No. Description Qty. 1 HP 1-1/2 HP 1 HP 1-1/2 HP
1 Filter Tank Assembly 1 PLM100 PLM100 PLM150 PLM150
2 Union Half Assembly 1 27001-0120 27001-0120 27001-0120 27001-0120
3 O-Ring 1 U9-226 U9-226 U9-226 U9-226
4 Pump Assembly (-03, -04 Models) 1 JWPA5E7L-2A2 JWPA5F7L-2A2 JWPA5E7L-A2 JWPA5F7L-2A2
4 Pump Assembly (-06 Models) 1 JWPA5E7C-2A3U JWPS5F7C-2A3U JWPA5E7C-2A3U JWPS5F7C-2A3U
4 Pump Assembly (-12 Models) 1 JWPA5E7L-2A1 JWPA5F7L-2A1 JWPA5E7L-2A1 JWPA5F7L-2A1
4 Pump Assembly (-15 Models) 1 – JWPA5YF7L-A1 – –
• Adapter Kit (includes Key No. 6, 7) 1 27001-0141 27001-0141 27001-0141 27001-0141
5 Hose Adapter 1-1/2” MPT Male 2 11201-0002 11201-0002 11201-0002 11201-0002
6 Hose Clamp 4 P19-30 P19-30 P19-30 P19-30
7 Platform Base 1 27001-0031 27001-0031 27001-0031 27001-0031
8 2” NPT x 1-1/2” NPT Reducer Bushing 1 U78-820P U78-820P U78-820P U78-820P
• System Nameplate 1 27002-0045 27002-0045 27002-0045 27002-0045
•
Hose Assembly 1-1/2” X 77” (-03 Models only ) 2 34055-7038 34055-7038 34055-7038 34055-7038
• Platform Extension (Optional) 1 27001-0032 27001-0032 27001-0032 27001-0032

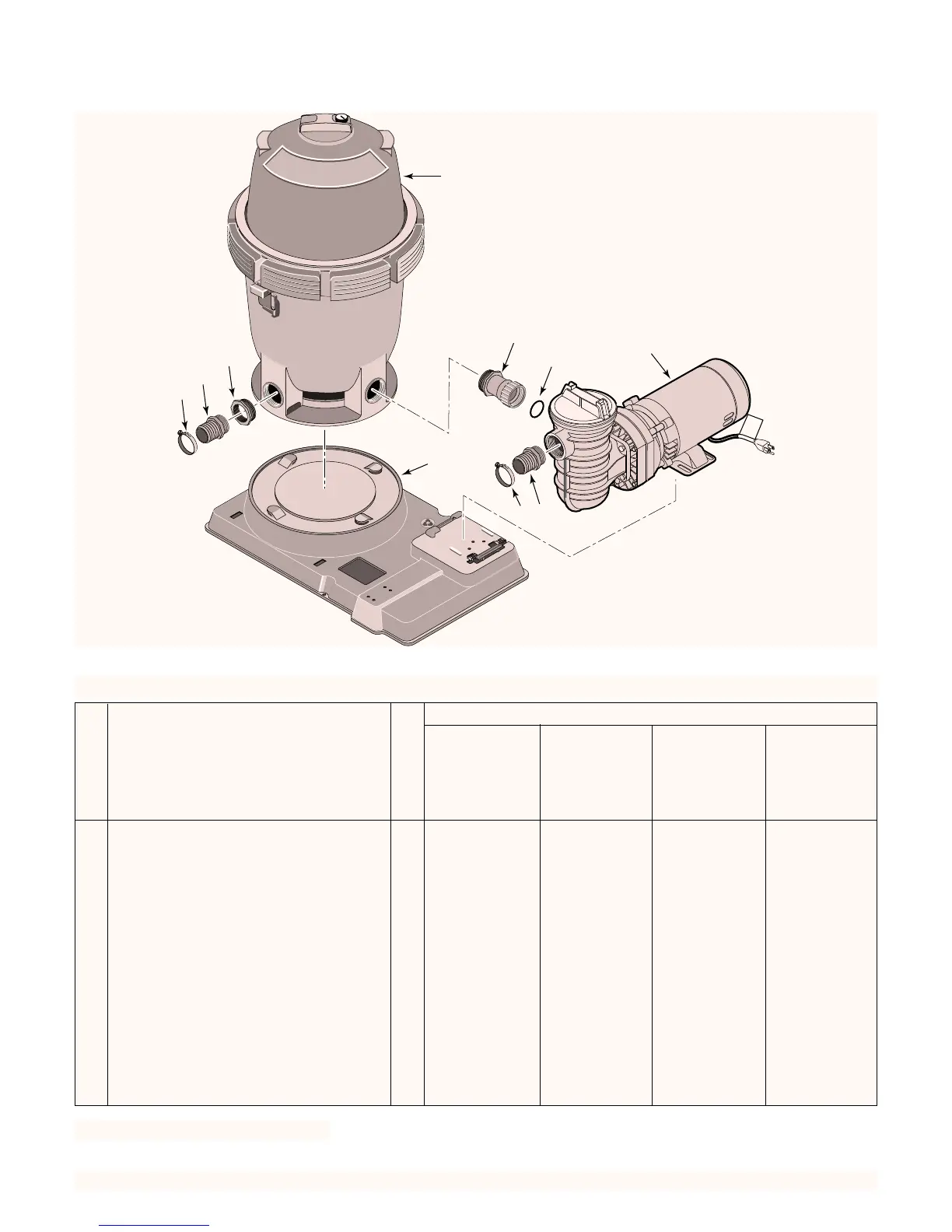

REPAIR PARTS LIST – Modular Media System
REPAIR PARTS LIST
Modular Media Filter Systems
See Page 15 for Filter Tank Assembly Parts
See Pages 16 and 17 for Pump Parts
• Not illustrated.
