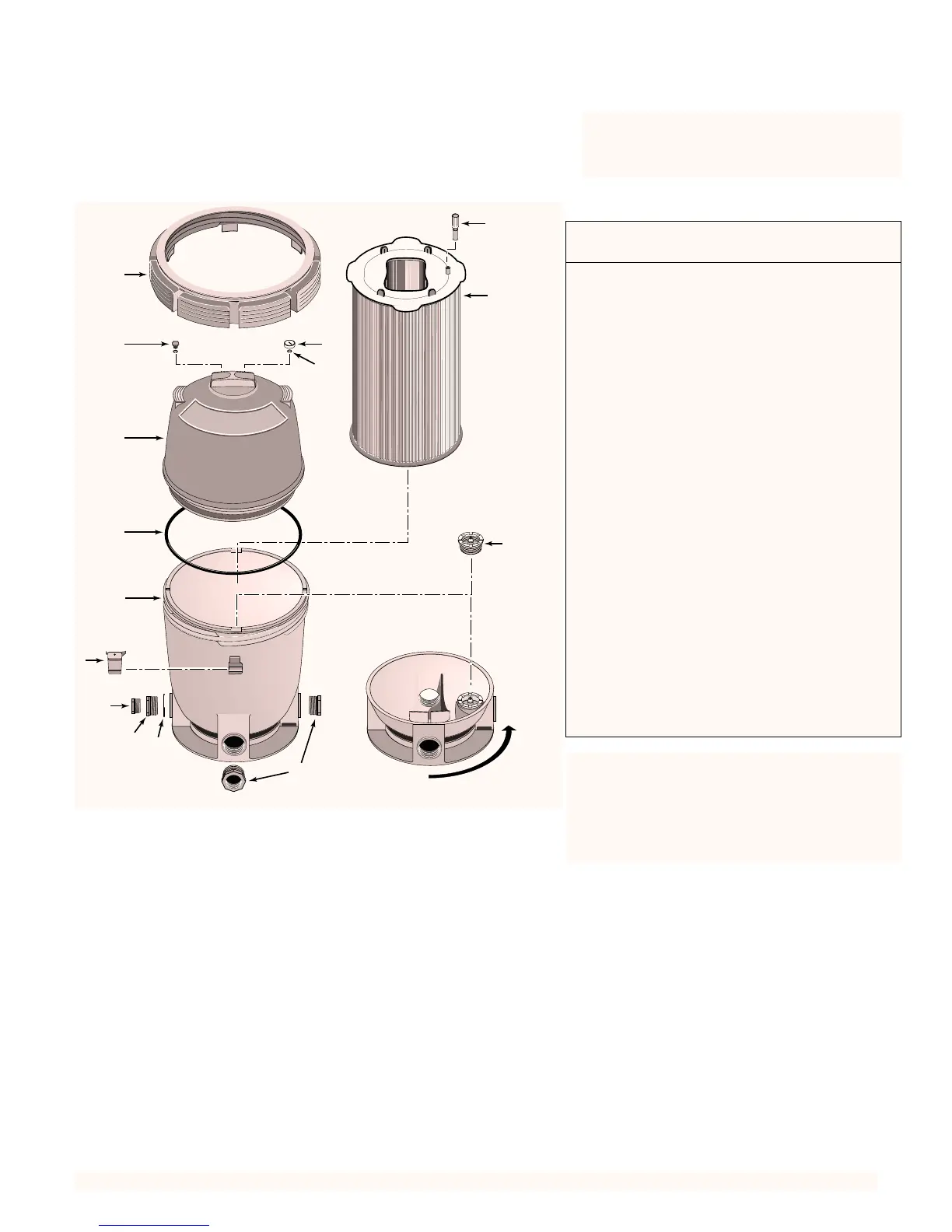

STA-RITE Swimming Pool Filter - Repair Parts - Filter Tank Assembly; Filter Tank Assembly Parts List

16
OUTLET
OUTLET
RELEASE
RELEASE
Base rotated 90° to show
check valve installed.
1
2
3
4
5
6
9
10
10A
11
12
13
DRAIN
DRAIN
7A
7B
8
Key Part
No. Description Qty. Number
1 Posi-Lok™ ring* 1 27001-0050B
2 Air release valve assembly 1 25010-0200
3 Tank shell upper half* 1 27001-0020S
4 Tank O-ring 1 27001-0061S
5 Tank shell lower half 1 27001-0009S
6 Safety latch for ring 1 27001-0051
7A 1-1/2” NPT plug 1 11201-0005B
7B Adapter fitting 1 24900-0509
8 O-ring 1 35505-1424
9 2” x 1-1/2” Pipe reducer*** 2 U78-820P
10 Pressure gauge*** 1 15060-0000T
10A Pressure gauge screen*** 1 WC8-72D
11 Air bleed assembly 1 24800-0121
12 Filter module (PLM100) 1 27002-0100S
12 Filter module (PLM150) 1 27002-0150S
13 Spring check valve** 1 27001-0130S
• Accessory package 1 27001-0140
• Decal, logo 1 27001-0041
• Decal, warning 1 27001-0042
• Decal, operating instr. 1 27002-0043
• Decal, nameplate (PLM100) 1 27002-0042
• Decal, nameplate (PLM150) 1 27002-0045
• Owner’s manual 1 S340
• Teflon tape*** 1 U97-58
• O-ring grease*** 1 34725-0013
• Not illustrated.
* Includes all decals and labels.
** Optional equipment.
*** Shipped in accessory package.
REPAIR PARTS
Filter Tank Assembly
