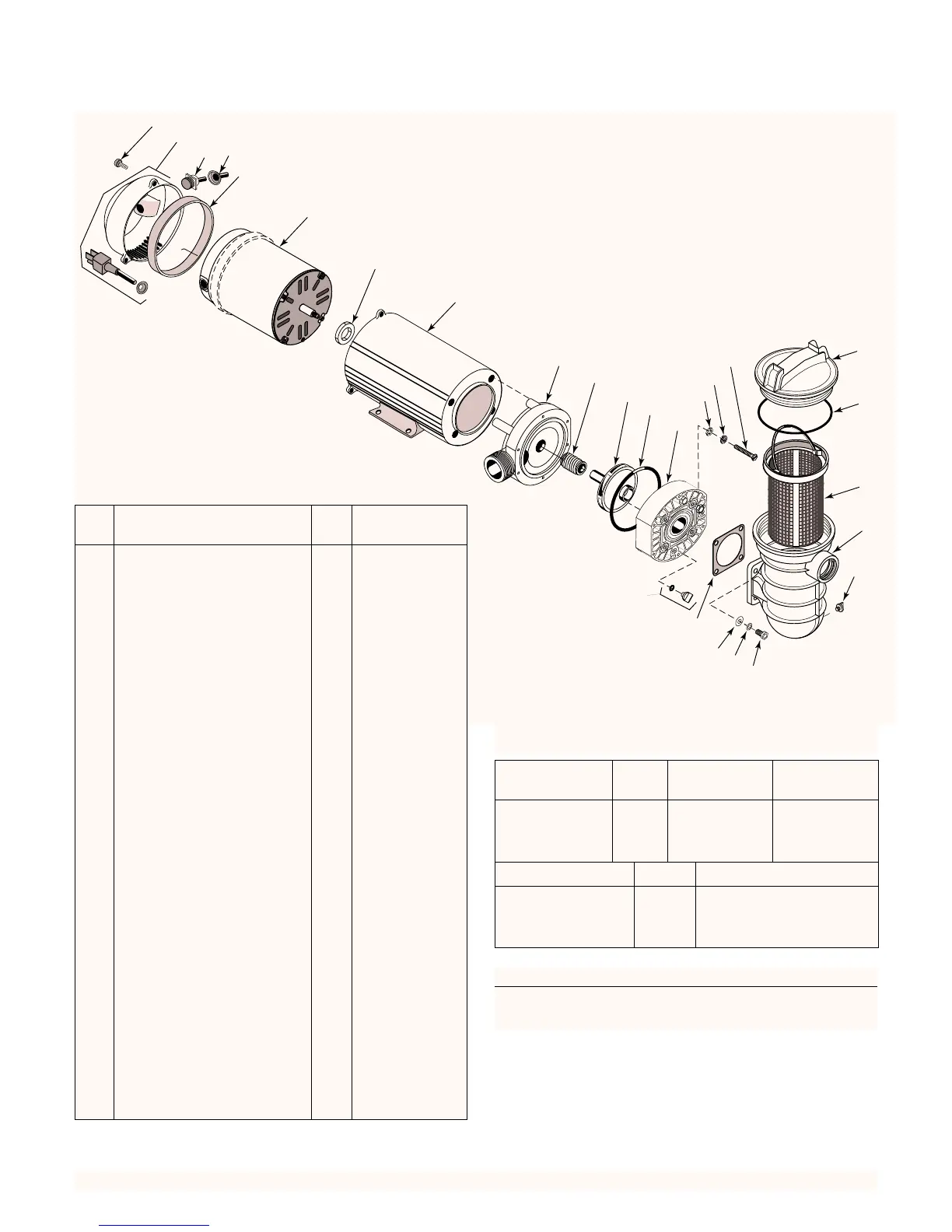

REPAIR PARTS LIST — 17290 SERIES PUMPS
See Pump nameplate for Pump Model Number
for Filter System with Suffix -06
Parts are common to all models listed except as noted;
Key Nos. 6, Motor; and 11, Impeller, are listed below.
Motor No. Impeller No.
Model No.HP (Key No. 6) (Key No. 11)
115V/60/1
JWPA5E7C-2A3 1 AS901EL C105-228PWS
JWPS5F7C-2A3 1-1⁄2SPL AS901SFL C105-228PWS
Model No. HP Cord & Cap Assembly
115V/60/1
JWPA5E7C-2A3 1 17190-0026-S
JWPS5F7C-2A3 1-1/2SPL 17190-0026-S
Key Part
No. Description Qty. Number
1 End Cap Screw 3 37337-0085
2 Cap and Cord Ass’y 1 Chart at Right
3 Toggle Switch 1 16920-0511
4 Toggle Switch Boot 1 32800-0107
5 Baffle Ring 1 17290-0004
6 Motor 1 Chart at Right
7 Flinger 1 C69-2
8 Motor Cover 1 17190-0021
9 Seal Plate 1 17301-0150
10 Shaft Seal 1 U9-358SS
11 Impeller 1 Chart at Right
12 O-Ring 1 U9-357
13 Front Plate 1 C101-272P
14 Plain Washer 4 U43-60SS
15 Lock Washer 4 U43-10SS
16 Cap Screw 4 U30-873SS
17 Trap Lid 1 C3-139P1
18 Trap Lid O-Ring 1 U9-229
19 Trap Basket 1 C108-33P
20 Trap Body 1 C153-53P
21 Drain Plug w/O-Ring 2 U178-920P
22 Cap Screw 4 U30-64SS
23 Lock Washer 4 U43-11SS
24 Plain Washer 4 U43-41SS
25 Trap Outlet Gasket 1 C20-123
26 Mounting Foot 1 17190-0023
• Nameplate 1 32155-4073
• Decal – GFCI Required 1 U27-558
• Tag – Do Not Use Pipe Dope 1 61002-0002
• Tag – Electrical, priming 1 61002-0004
Trap Cover/O-Ring Kit (5” Trap)
Kit includes C3-139P1 Trap Cover and U9-229 O-Ring.
Parts-Pak No. PP2075.
