STA-RITE Swimming Pool Filter - Repair Parts List - JWA Series Pumps; JWA Series Pump Parts

18
6
2
7
9
2A
10
11
12
13
14
15
16
25
13A
17
18
19
20
21
21
22
23
24
2248 0196

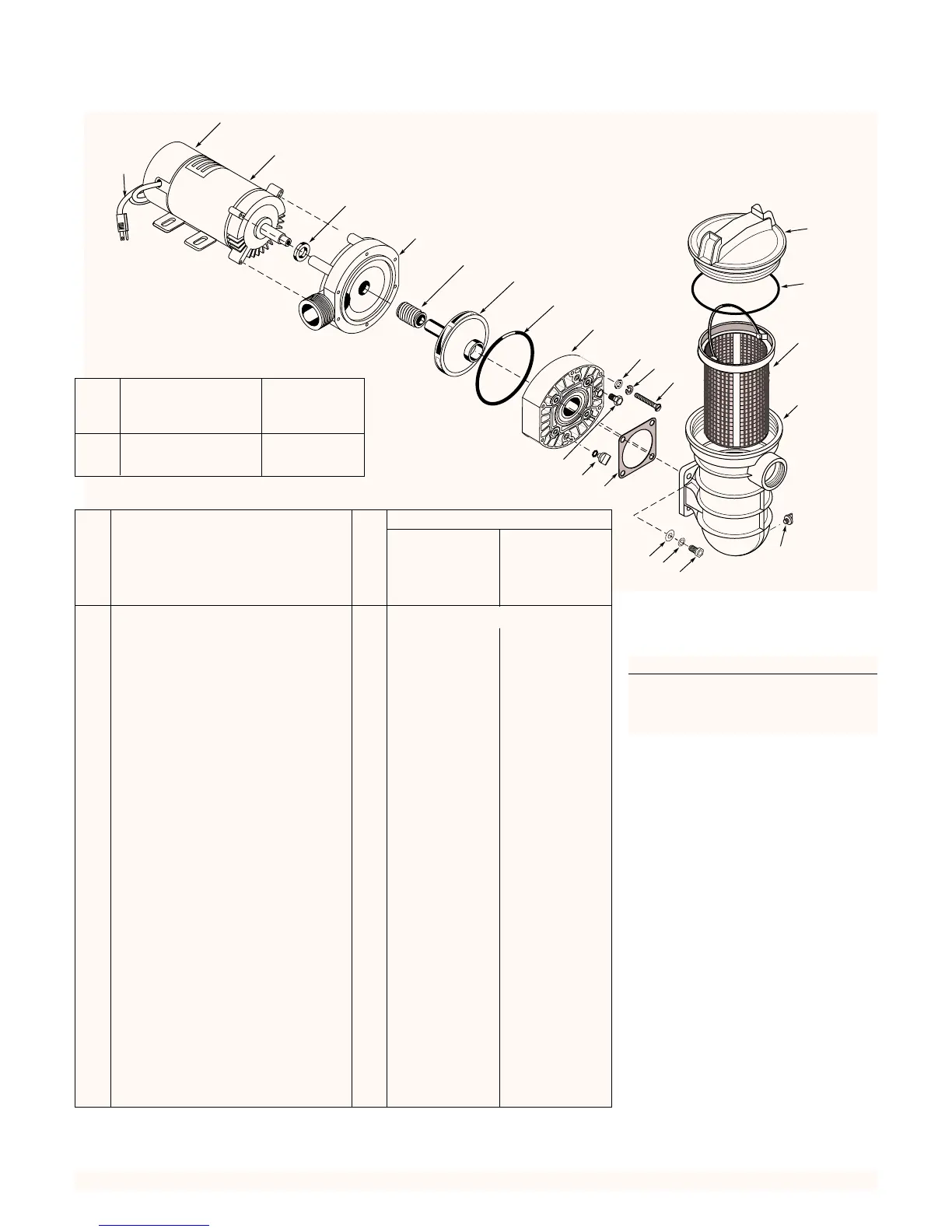

REPAIR PARTS LIST — JWA Series PUMPS
See Pump nameplate for Pump Model Number
for Filter System with Suffix -03, -04, -12, or -15
• Not illustrated.
* Model JWPA5YF7L-A1 uses Part No. 62003-2032.
-A1 and -2A1 Models -2A2 Models
HP Cord Ass’y with Cord Ass’y with
Twist-lock Plug Straight Plug
1 31953-0101 U117-1117
1-1/2 31953-0101 U117-1118
Cord and Plug Part Numbers
Trap Cover/O-Ring Kit (5” Trap)
Kit includes C3-139P1 Trap Cover and
U9-229 O-Ring.
Parts-Pak No. PP2075.
Model Number
JWPA5YF7L-A1
JWPA5E7L-2A1 JWPA5F7L-2A1
Key JWPA5E7L-2A2 JWPA5F7L-2A2
No. Description Qty. 1 HP 1-1/2 HP
2 Motor End Cap 1 Not Available separately
2A Cord Assembly 1 See Chart See Chart
6 Motor 115/60H/1Ph (Without Cord)* 1 AS920ELL AS920FLL
7 Slinger 1 C69-23 C69-23
9 Seal Plate 1 C1-260P C1-260P
10 Seal 1 U109-358SS U109-358SS
11 Impeller 1 C105-228PG 17301-0101
12 O-Ring 1 U9-357 U9-357
13 Front Plate 1 C101-272P C101-272P
13A Pipe Plug 2 WC78-40T WC78-40T
14 Washer, 1/4 Flat 6 U43-117SS U43-117SS
15 Washer, 1/4 Lock 6 U43-10SS U43-10SS
16 Screw, 1/4-20x1-3/4 6 U30-873SS U30-873SS
17 Trap Cover 1 C3-139P1 C3-139P1
18 O-Ring - Cover 1 U9-229 U9-229
19 Strainer Basket 1 C108-33P C108-33P
20 Trap Body 1 C153-53P1 C153-53P1
21 Drain Plug - 1/4” NPT (w/O-Ring) 2 U178-920P U178-920P
22 Capscrew 5/16-18x1-1/4” 4 U30-64SS U30-64SS
23 Washer, Lock 5/16” 4 U43-11SS U43-11SS
24 Washer, Flat 5/16” 4 U43-41SS U43-41SS
25 Gasket 1 C20-123 C20-123
• Nameplate 1 U33-155 U33-155
• Decal “Tested for Pools & Spas” 1 U27-635 U27-635
• Decal - GFCI required 1 U27-558 U27-558
• Decal - Caution 1 32165-4038 32165-4038
• Tag - bonding instructions 1 C63-12 C63-12
• Tag - CAUTION Securely 1 61002-0002 61002-0002
Tighten…Warning…
