Page ST215C User Handbook
10
To enter the damper temperature configuration menu press the key and the key
down together while the controller is not running a program (firing indicator not lit).
Note: in the sequence below if no key presses are detected within 30 seconds the
ST215C will exit the menu and damper temperature changes will not be saved.

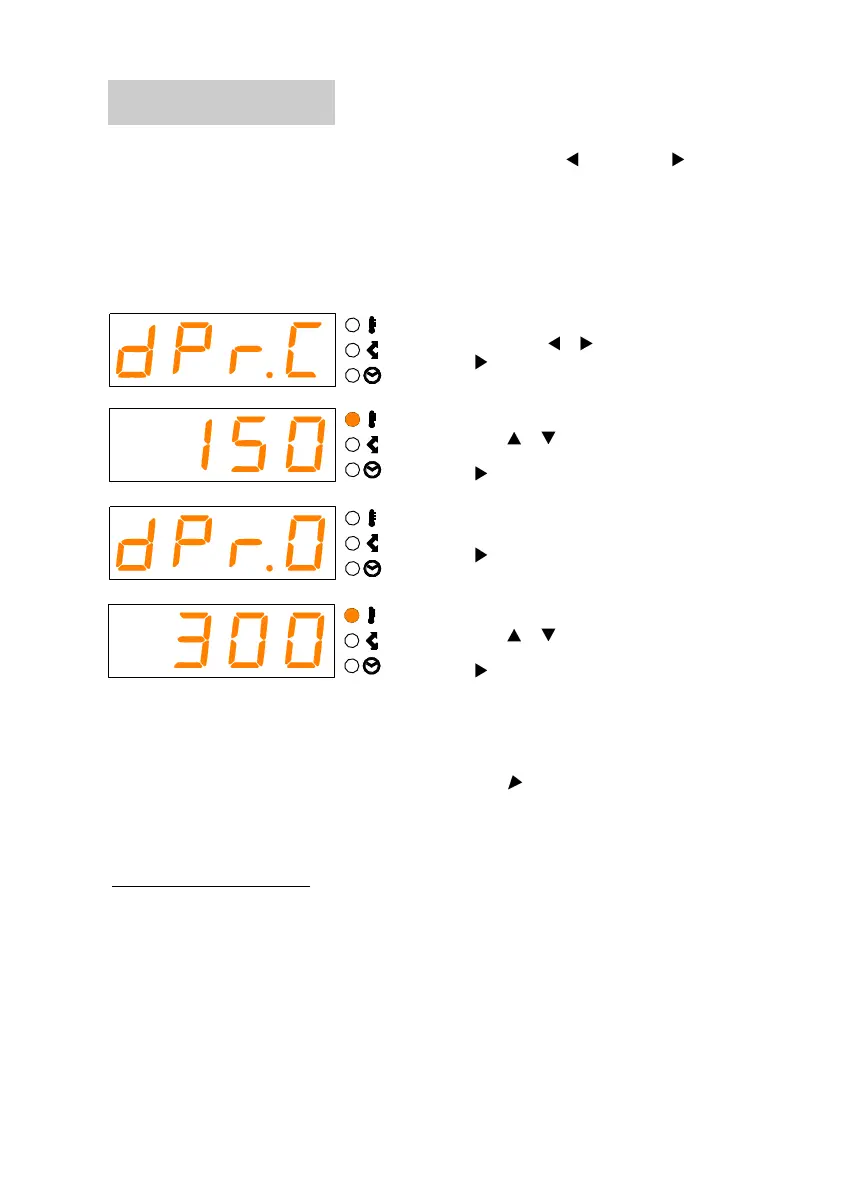

The damper close temperature prompt is
shown. Release the & keys.
Press the key.
The damper close temperature is now shown.
Adjust with the & keys (hold down for
acceleration).
Press the key.
The damper open temperature prompt is now
shown.
Press the key.
The damper open temperature is now shown.
Adjust with the & keys (hold down for
acceleration)
Press the key.
The ST215C will now reset and the new damper control temperatures will be stored.
Note: in the sequence above it is important that the key is pressed a total of 4
times else changes will not be saved.
Damper Output
Damper Operation
Prior to firing the damper will be open. During firing, when the kiln reaches the damp-
er close temperature, the damper will close. The event indicator will be on.
At the end of the firing and when the kiln has cooled naturally to the damper open
temperature, the damper will open. The event indicator will be off.
Note: The event switch has no function for damper operation
