Stagnoli A24 User Manual

13
R 00
-
-
AGG 1 ch
PREM

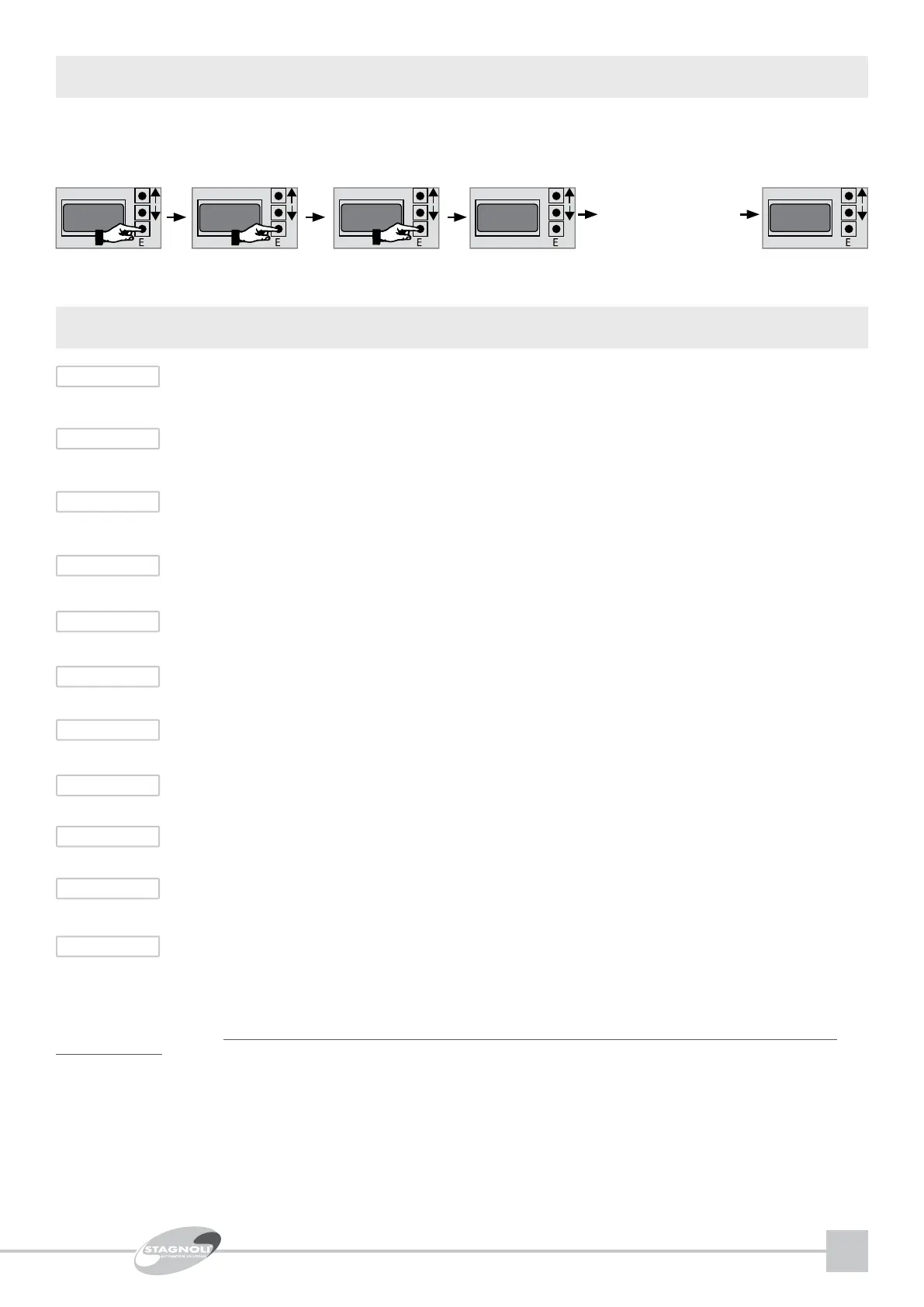

MEMORISING ONE OR MORE RADIO CONTROLS
Press the
transmitter button.
ok
Stagnoli control units can memorise 76 transmitters per channel in both rollingcode and xed code. They are set by default to memorise Stagnoli
Rollingcode transmitters. To memorise xed codes, modify “CF” parameters in the "FUNCTIONS" menu.
In addition, Stagnoli control units provide two memory channels:
1- the rst channel controls automation: open-stop-close (or as programmed)
2- the second is used for pedestrian opening
TCA
TPED
Default: 10sec
Min: 1sec
Max: 240sec
Default: 50%
Min: 30%
Max: 99%
FAP
FCH
Default: 50
Min: 20
Max: 99
Default: 50
Min: 20
Max: 99
Trel
Default: 2
Min: 0
Max: 20
SFAP
Default: 1 sec
Min: 0 sec
Max: 10 sec
SFCH
Default: 3 sec
Min: 0 sec
Max: 10 sec
rall
Default: 2
Min: 1
Max: 10
VEL
Default: 5
Min: 1
Max: 10
sba
Default: 4
Min: 1
Max: cm
tAUX
Default: 1 sec
Min: 0 sec
Max: 2 sec
(automatic closing time)= This is the time from when the gate is fully open to when it is closed,
which is automatic if CA=1. If the photocell is engaged, count time is reset.
(pedestrian opening)= This is the length of the pedestrian stroke (partial opening of leaf 1) ex-
pressed in % in reference to the total stroke.
DESCRIPTION OF PARAMETERS
(anti-crushing force of leaf in opening)= This is the anti-crushing force of the leaf of the gate
stated in % compared with the maximum force in the opening phase. **
(anti-crushing force of leaf in closing)= This is the anti-crushing force of the leaf of the gate stat-
ed in % compared with the maximum force in the closing phase. **
(relax time)= When the motor arrives at limit stop, both in opening and in closing, the direction of
travel is reversed for the set time, relaxing mechanical components
Equals: 1x10ms
(delay in opening time)= Delay time in seconds for leaf 2 opening.
(delay in closing time)= Delay time in seconds of leaf 1 closing.
(slowing space)= Space where stroke slows down both in opening and in closing,
Equals: 1x10cm.
(movement speed)= Movement speed\ (this parameter also automatically modies slowing
speed).
(strike space)= This is the space, expressed in cm, at the tip of the leaf before the stop in open-
ing and closing in which the control unit interprets obstacles as limit stops.
(electric lock time)= This is the electric lock power supply time.
** Stagnoli control units automatically memorise the forces necessary (FCH and FAP) for gate leaf movement, adding 10% to the average forces
detected during self-learning. Stagnoli delegates the correct setting of anti-crushing forces (FCH and FAP) in accordance with standard EN
12445 to installers.
