3 Introduction
Chain hoists are intended for lifting freely movable loads.
The modular system permits a multitude of combinations of the components.
The hoist drive is a cylindrical rotor motor with a separately activated D.C. brake. Its
design complies with the FEM calculation regulations which are adapted to the require-
ments of hoist operation.
Our certified quality assurance system to DIN ISO 9001/EN 29001 guarantees consistent-
ly high quality.

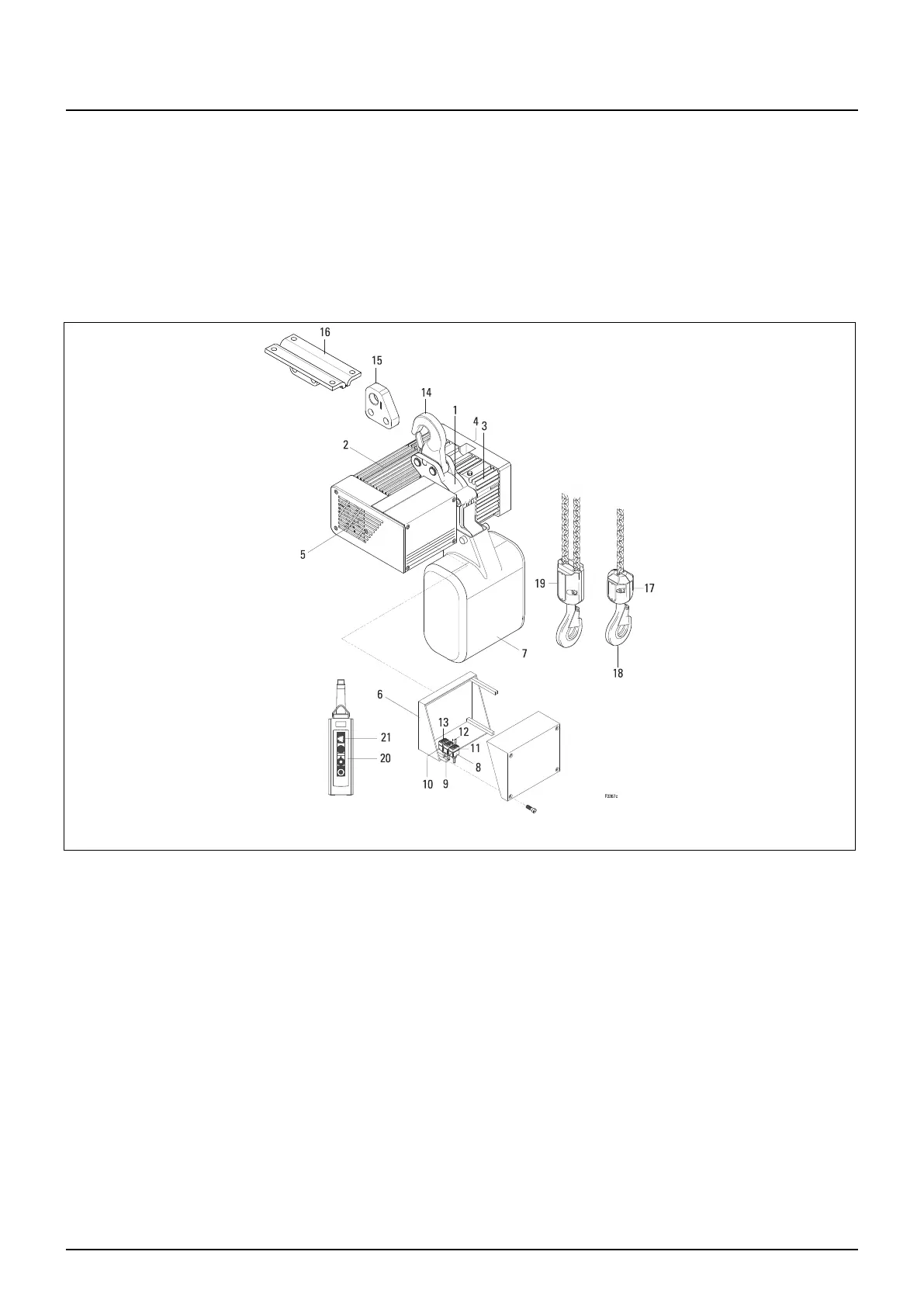

Fig. 4
1 Chain drive
2 Motor
3 Gear
4 Slipping clutch
5 Brake
6 Panel box
7 Chain box
8 Plug for control pendant
9 Plug for travel drive
10 Plug for mains connection
11 Socket for control pendant
12 Socket for travel drive
13 Socket for mains connection
14 Suspension hook
15 Suspension eye
16 Rigid suspension
17 Single-fall bottom hook block
18 Load hook
19 Two-fall bottom hook block
20 Control pendant
21 Emergency stop
