ASSEMBLY INSTRUCTIONS
11

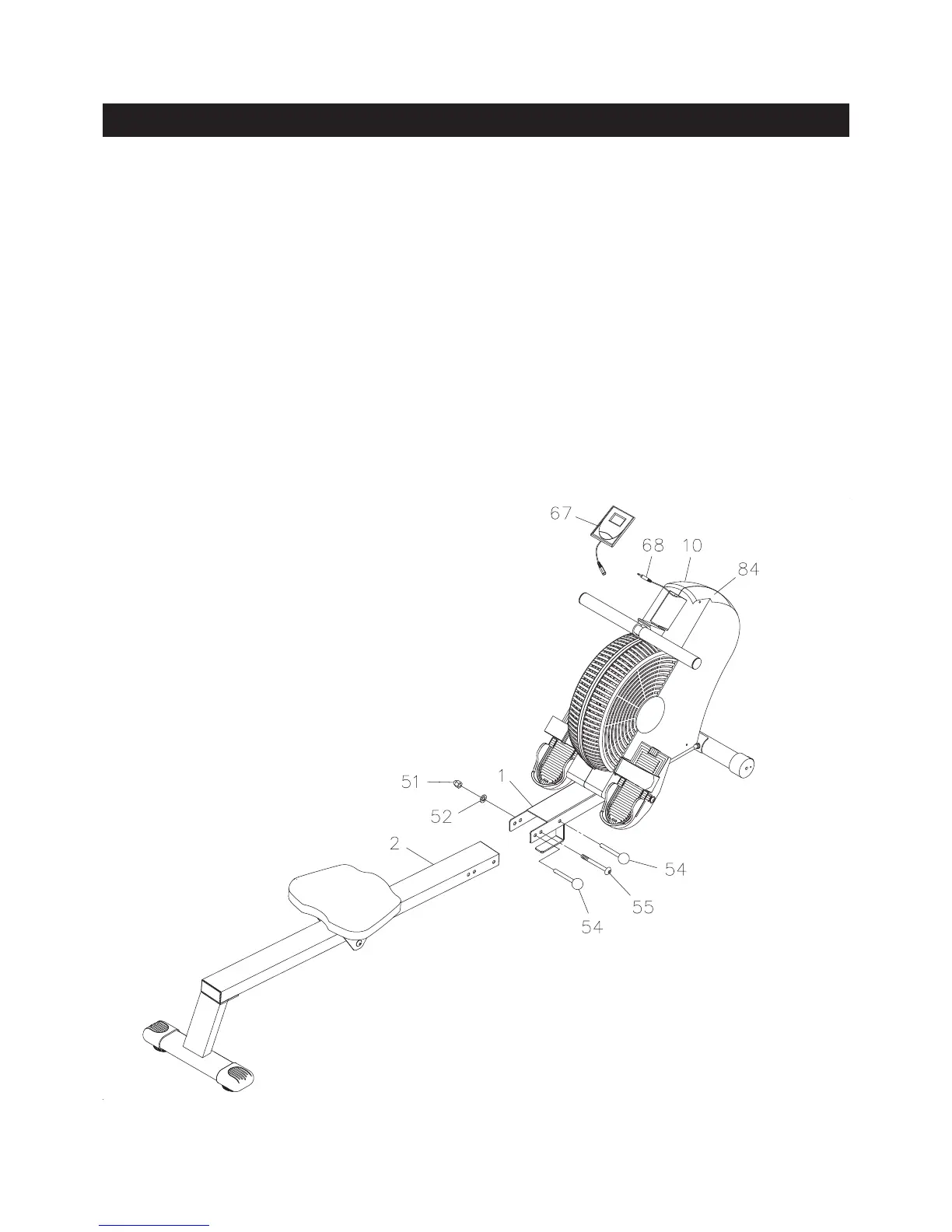

STEP 8
Attach the RAIL(2) to the MAIN FRAME(1) with BUTTON HEAD BOLT(M10x1.5x100mm)(55),
WASHER(M10)(52), and ACORN NUT(M10x1.5)(51). Lock the RAIL(2) in position with the two LOCKING
PINS(54).
STEP 9
Install two AA batteries into the METER(67), the batteries are not included. See page 12 for detailed battery
installation instructions. Connect the SENSOR WIRE(68) to the METER(67). Press the METER(67) into
the opening in the COVERS(10, 84).
