Stamina DT Plus Rower - Step 5: Handlebar and Foam Grip Installation; Step 6: Pedal Stopper Bar Installation; Step 7: Bottle Holder Attachment

ASSEMBLY INSTRUCTIONS
10

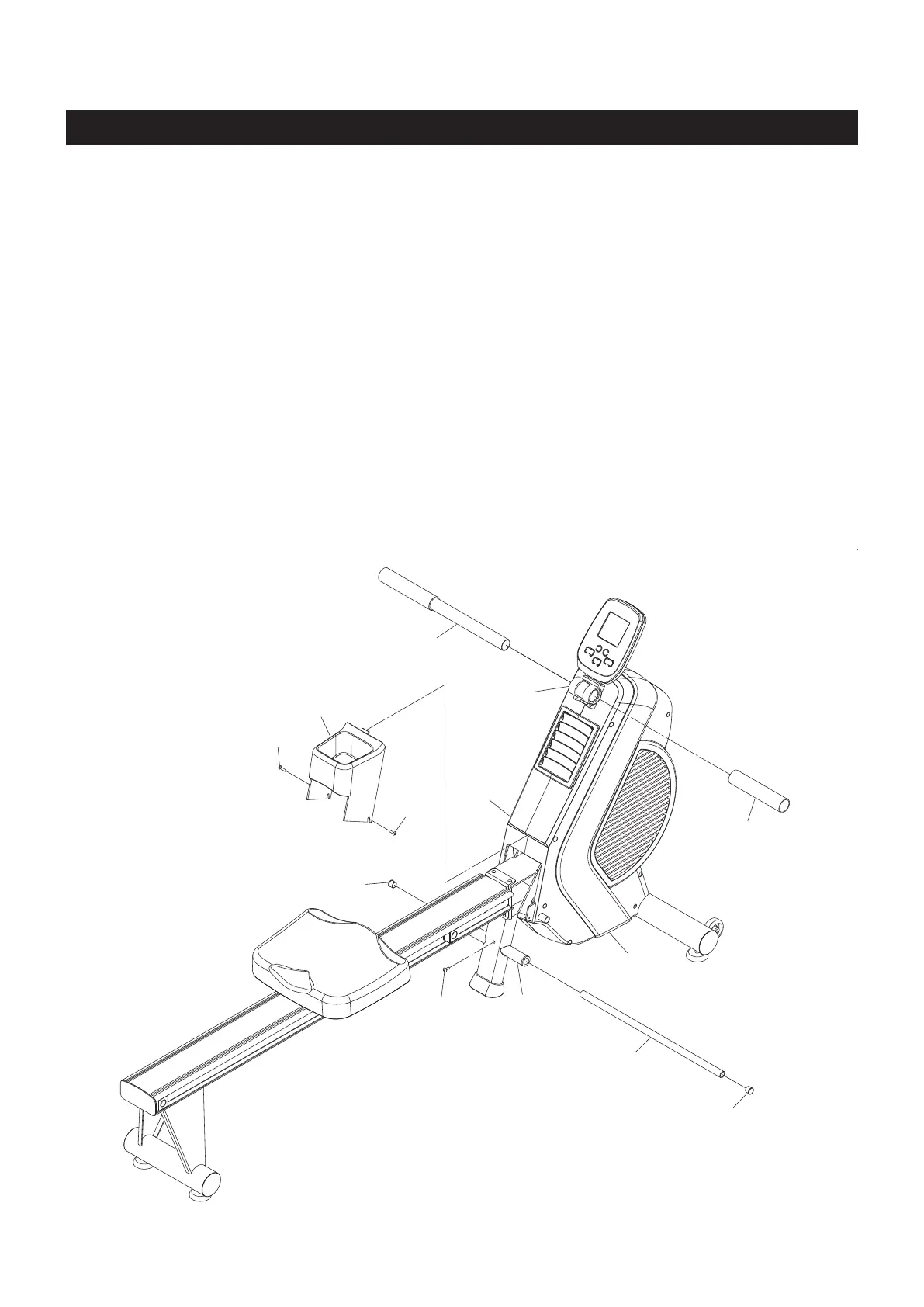

STEP 5
Insert the HANDLEBAR(13) through the HANDLEBAR SLEEVE(48). Slide the FOAM GRIP(46) onto the
protruding end of the HANDLEBAR(13).
NOTE: Lubricate the HANDLEBAR(13) with a small amount of liquid soap or water for easier installation
of the FOAM GRIP(46).
STEP 6
Insert the PEDAL STOPPER BAR(4) through the tube located on the MAIN FRAME(1) and position it at
the center. Lock the PEDAL STOPPER BAR(4) in position with ROUND HEAD BOLT(M6x1x10mm)(93).
Press the ROUND PLUGS(ø16mm)(61) into both ends of the PEDAL STOPPER BAR(4).
STEP 7
Push the BOTTLE HOLDER(39) into the gap of the LEFT and RIGHT COVERS(37, 38). Attach the BOTTLE
HOLDER(39) to the LEFT and RIGHT COVERS(37, 38) with ROUND HEAD SCREWS(
ST4.2x16mm )(72).
46
48
93
1
37
38
13
4
39
72
72
61
61
