ASSEMBLY INSTRUCTIONS

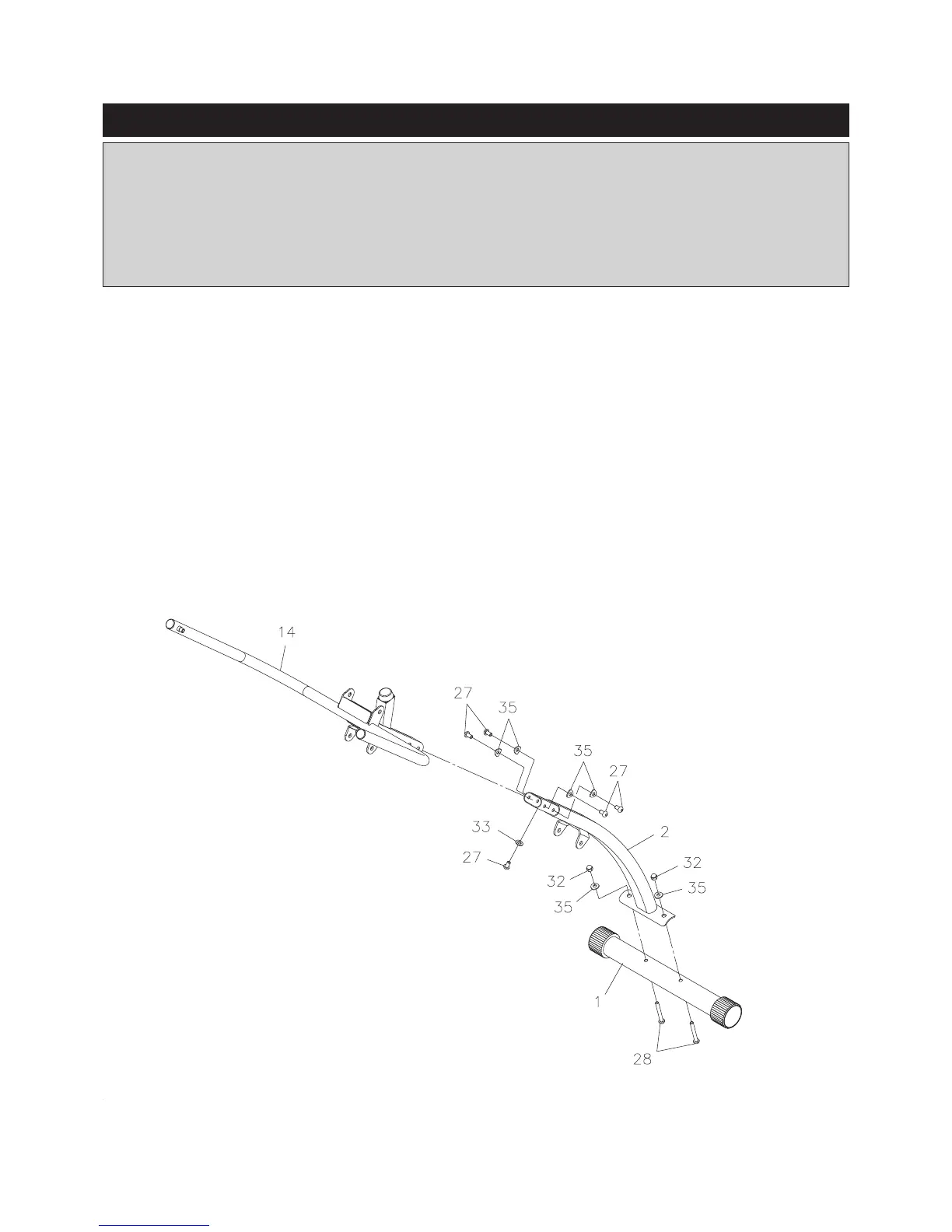

STEP 1
Attach the FRONT STABILIZER(1) to the FRONT SUPPORT(2) with BUTTON HEAD BOLTS
(M8x1.25x60mm)(28), ARC WASHERS(M8)(35), and ACORN NUTS(M8x1.25)(32).
STEP 2
Insert the FRONT SUPPORT(2) into the MAIN FRAME(14) and secure with BUTTON HEAD
BOLTS(M8x1.25x15mm)(27), ARC WASHERS(M8)(35), and WASHER(M8)(33).
7
Place all parts from the box in a cleared area and position them on the oor in front of you. Remove
all packing materials from your area and place them back into the box. Do not dispose of the packing
materials until assembly is completed. Read each step carefully before beginning. If you are missing
a part, please go to staminaproducts.com under the Service section and order the part needed,
e-mail us at customerservice@staminaproducts.com, or call us toll free at 1-800-375-7520 (in the
U.S.). Our Customer Service Staff is available to assist you from 7:30 A.M. to 5:00 P.M. (Central
Time) Monday through Thursday and 8:00 A.M. to 3:00 P.M. (Central Time) on Friday.
