ASSEMBLY INSTRUCTIONS
STEP 3

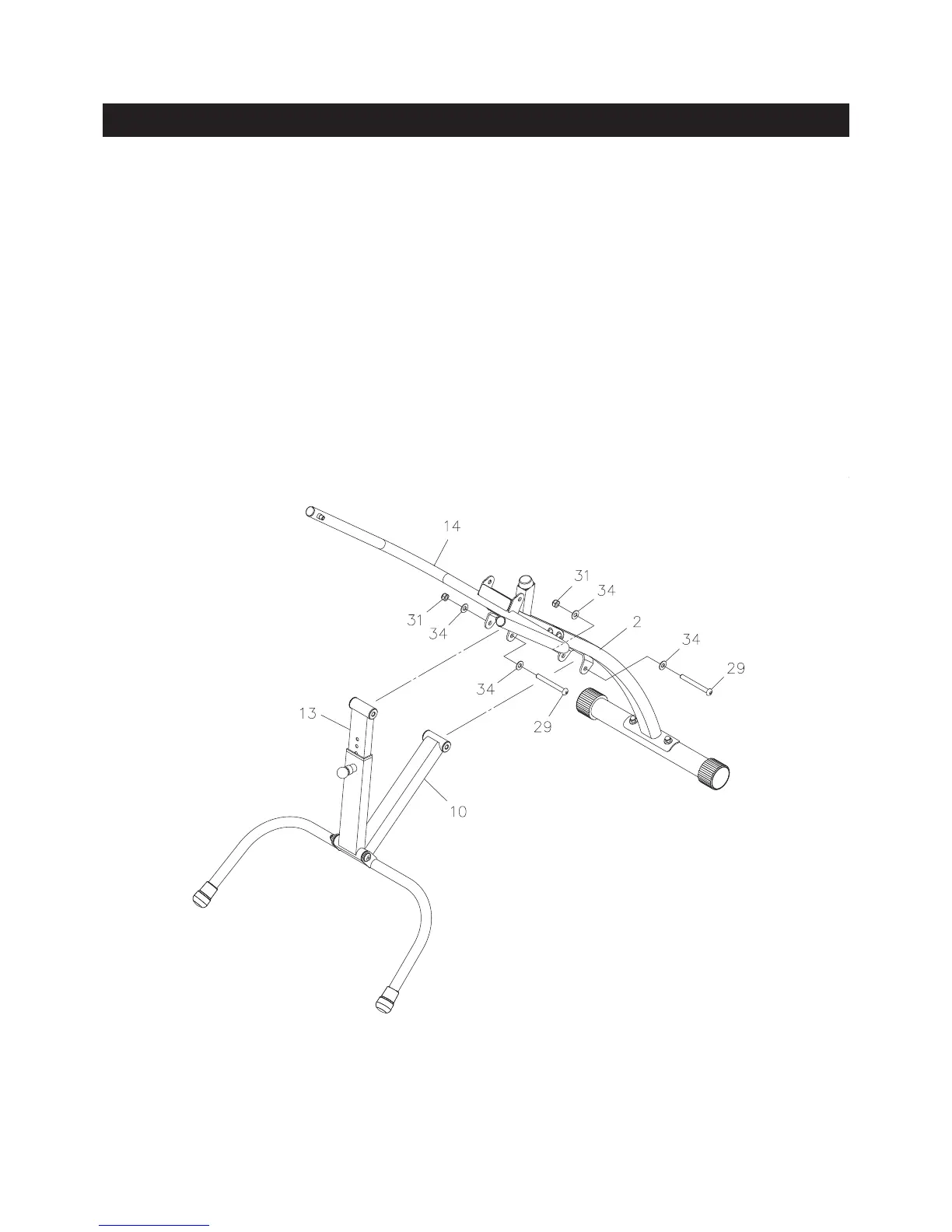

Attach the REAR SUPPORT(10) to the FRONT SUPPORT(2) with BUTTON HEAD BOLT
(M10x1.5x95mm)(29), WASHERS(M10)(34), and NYLOCK NUT(M10x1.5)(31).
STEP 4
Attach the INNER TUBE(13) to the MAIN FRAME(14) with BUTTON HEAD BOLT(M10x1.5x95mm)(29),
WASHERS(M10)(34), and NYLOCK NUT(M10x1.5)(31).
