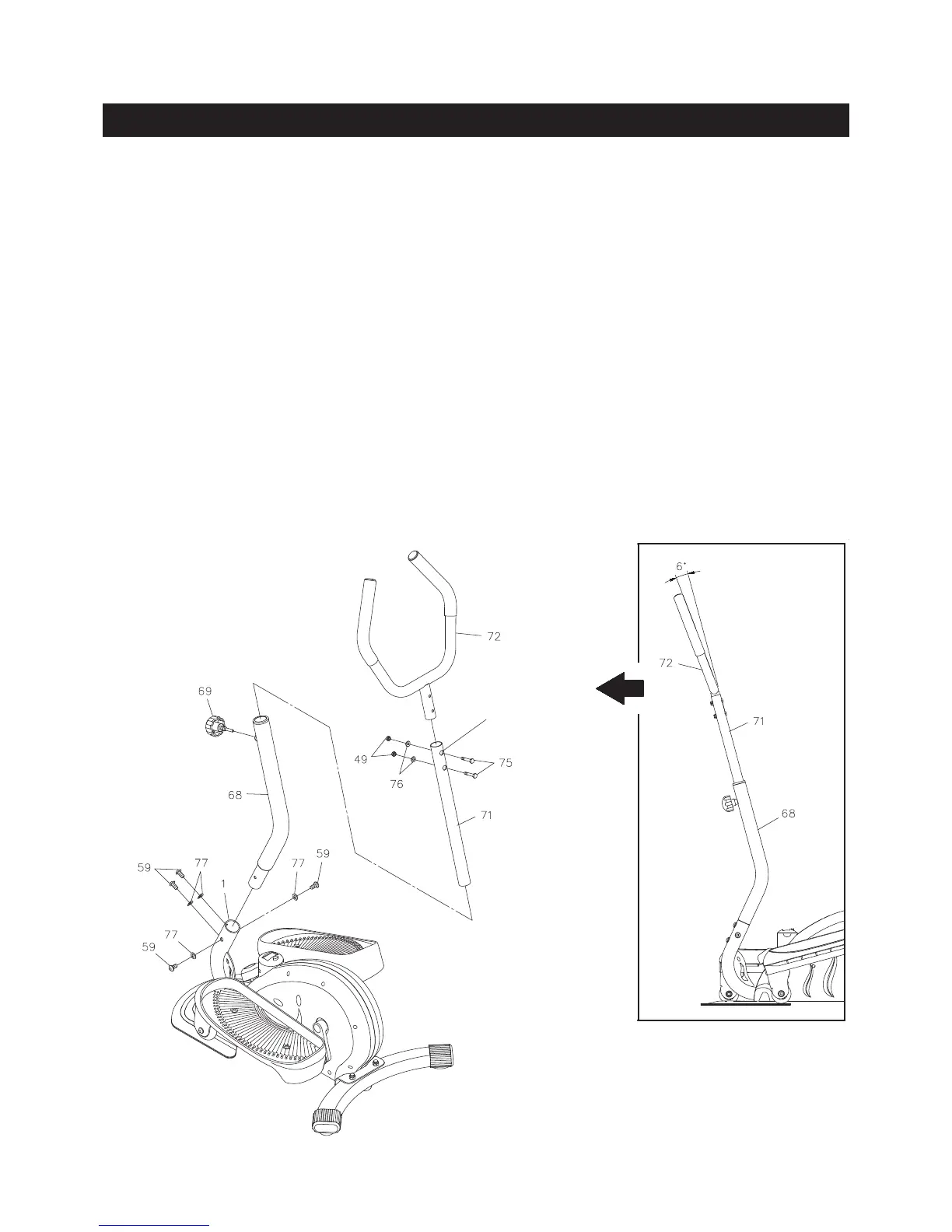

ASSEMBLY INSTRUCTIONS

STEP 4

Insert the UPRIGHT(68) into the MAIN FRAME(1) and secure with BUTTON HEAD BOLTS

(M8x1.25x16mm)(59) and ARC WASHERS(M8)(77).

STEP 5

Insert the HANDLEBAR POST(71) into the UPRIGHT(68), and lock it in one of the adjustment holes with

ADJUSTMENT KNOB(69).

NOTE: There are three adjustment holes on the HANDLEBAR POST(71) for adjusting the height of the

HANDLEBAR(72).

STEP 6

Refer to the detail view A.

Note the correct position of the HANDLEBAR(72), the HANDLEBAR(72)

should be assembled with a six degrees angle forward than the HANDLEBAR POST(71).

Attach the HANDLEBAR(72) to the HANDLEBAR POST(71) with HEX BOLTS(M6x1x33mm)(75), ARC

WASHERS(M6)(76), and NYLOCK NUTS(M6x1)(49). The HEX BOLTS(M6x1x33mm)(75)tinsidethe

hex-shapedholesintheHANDLEBAR POST(71).

hex-shaped

hole
