ASSEMBLY INSTRUCTIONS
9

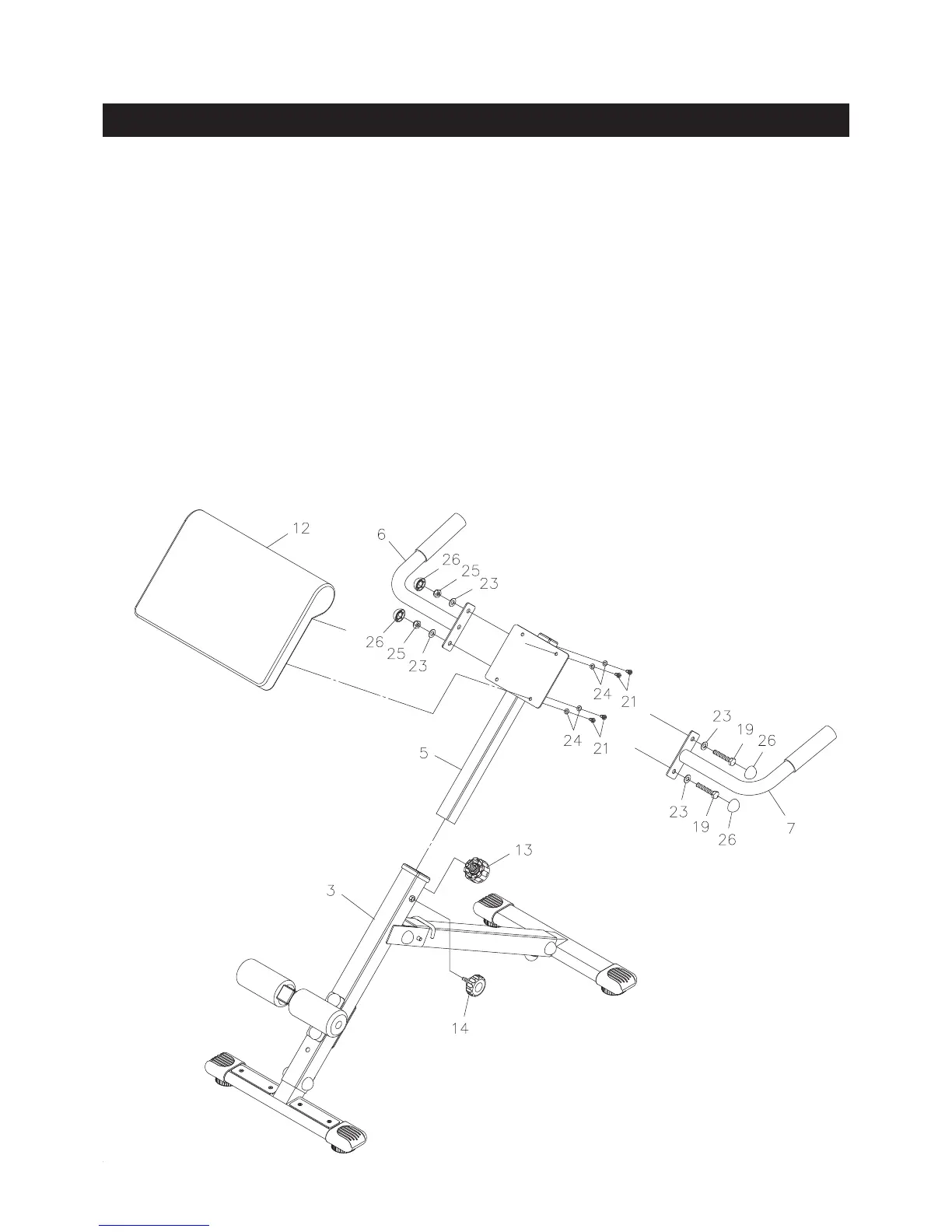

STEP 6
Insert the CUSHION POST(5) into MAIN SUPPORT(3) and lock in position with the ADJUSTMENT
KNOB(13). For added safety, thread the SECURING KNOB(14) into the right side of the MAIN SUPPORT(3).
NOTE: The pin of the ADJUSTMENT KNOB(13) must be inserted into one of the adjustment holes in the
CUSHION POST(5). The ADJUSTMENT KNOB(13) and SECURING KNOB(14) must be screwed
in tightly to ensure that the CUSHION POST(5) will t securely in the MAIN SUPPORT(3).
STEP 7
Attach the LEFT and RIGHT HANDRAILS(6, 7) to both sides of the CUSHION POST(5) with HEX
BOLTS(M10x1.5x60mm)(19), WASHERS(M10)(23), and NYLOCK NUTS(M10x1.5)(25). Press the NUT
CAPS(M10)(26) onto the bolt heads of HEX BOLTS(M10x1.5x60mm)(19) and NYLOCK NUTS(M10x1.5)
(25).
STEP 8
Attach the CUSHION(12) to the CUSHION POST(5) with HEX BOLTS(M6x1x15mm)(21) and WASHERS
(M6)(24).
