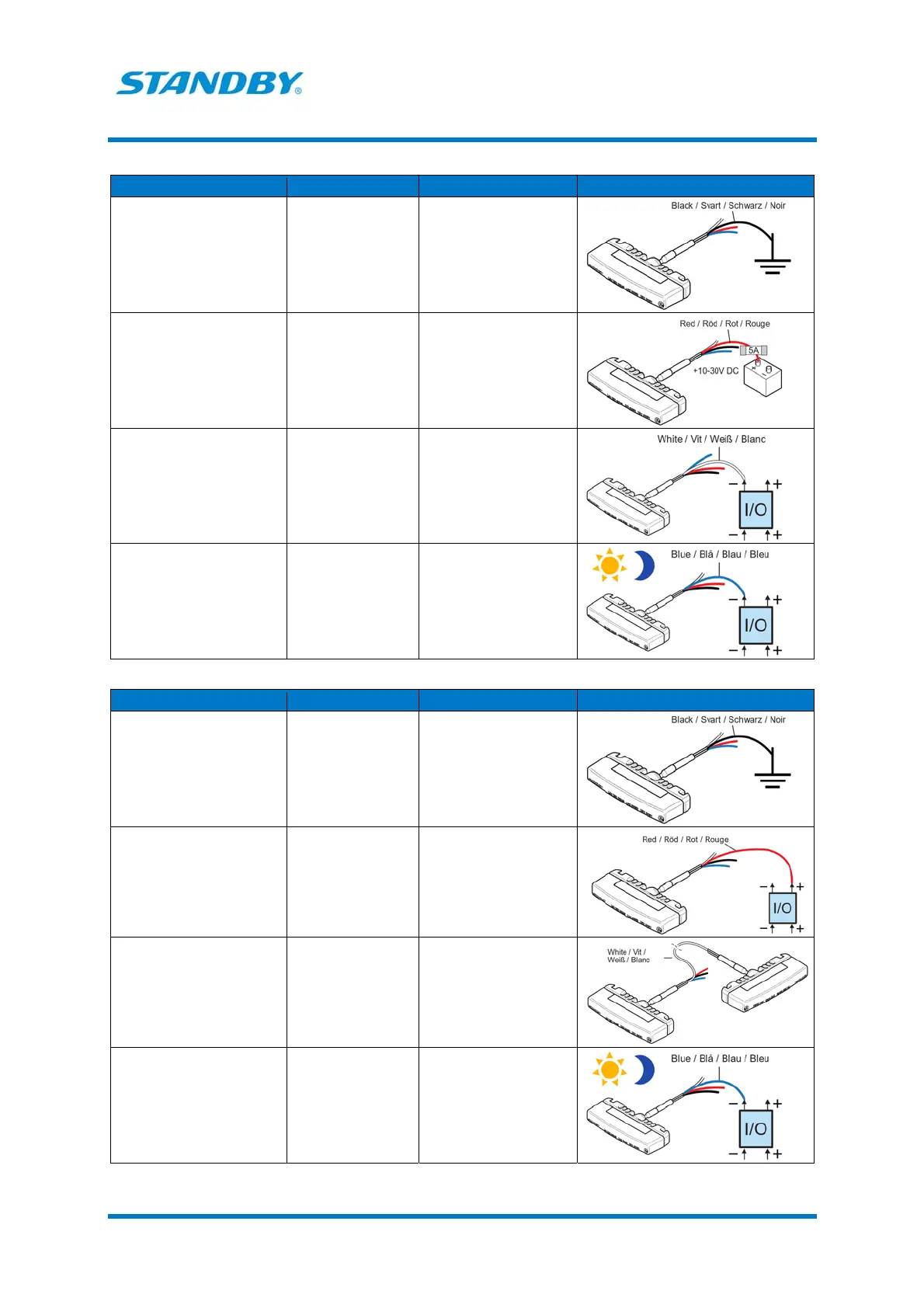

Table 2. Connections if flash pattern Steady burn 1 is selected.
Wire Functions Connect to
Black Power supply Good and suitable ground
Red Power supply 10-30 V DC via a 5 A fuse
White Lamp on/off Sinking output (-) of an
I/O unit or external
flasher.
Blue Day-and-night
function
Sinking output (-) of an
I/O unit or via a switch to
ground. When activated,
the lamp dims down to
night level.
Table 3. Connections if flash pattern Steady burn 2 is selected.
Wire Functions Connect to
Black Power supply Good and suitable ground
Red Power supply
Lamp on/off
10-30 V DC via a 5 A fuse
Sourcing output (+) of an
I/O unit or external
flasher.
White Synchronizing the
flashing of two or
more lamps
Sync cable of the other
lamp
Blue Day-and-night
function
Sinking output (-) of an
I/O unit or via a switch to
ground. When activated,
the lamp dims down to
night level.
