2. SPECIFICATION
2.1 INTENT OF USE
The 70500 Module is principally a piston and cylinder assembly. When coupled hydraulically to a compatible hydraulic
power source and the relevant nose equipment is attached, it is then used to install speed rivets up to 4.8mm (3/16”) in
diameter, in Industrial Environments.
The placing module may only be used in accordance with the operating instructions for placing Stanley Engineered
Fastening structural rivets.
DO NOT use under wet conditions or in the presence of ammable liquids or gases.
The safety instructions must be followed at all times.
2.2 TOOL SPECIFICATION
SPECIFICATION METRIC IMPERIAL
Force: Pull at stated pull pressure 3.0 kN 674 lbf
Pressure: Hydraulic pressure 140 bar 2030 PSI
Stroke: Piston Stroke 30.0 mm 1.18 in
Cycle Time: Maximum 1 second -
Weight: Without nose equipment kg lb

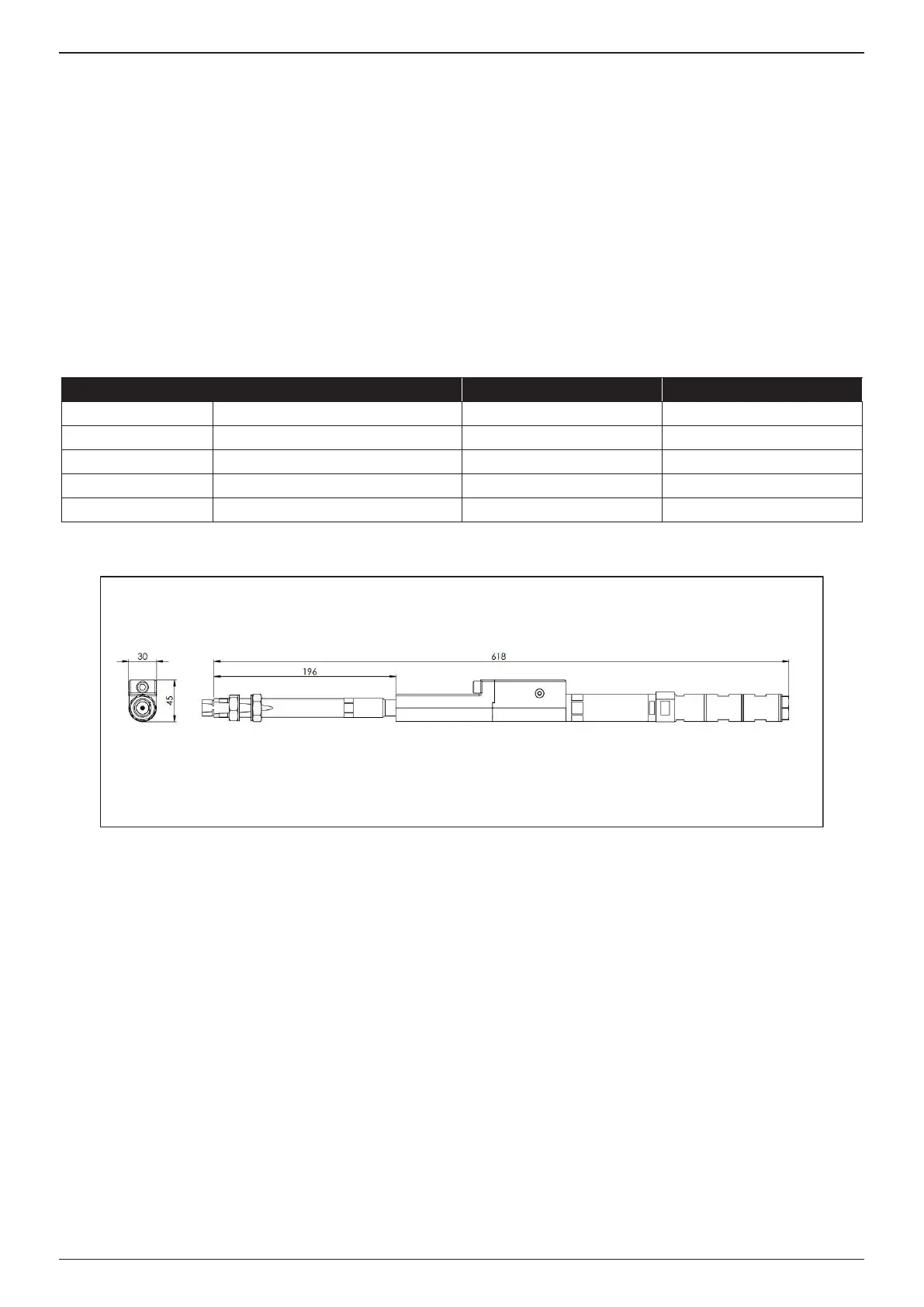

2.3 TOOL DIMENSIONS
All dimensions are shown in millimetres.
7
ORIGINAL INSTRUCTION ENGLISH
