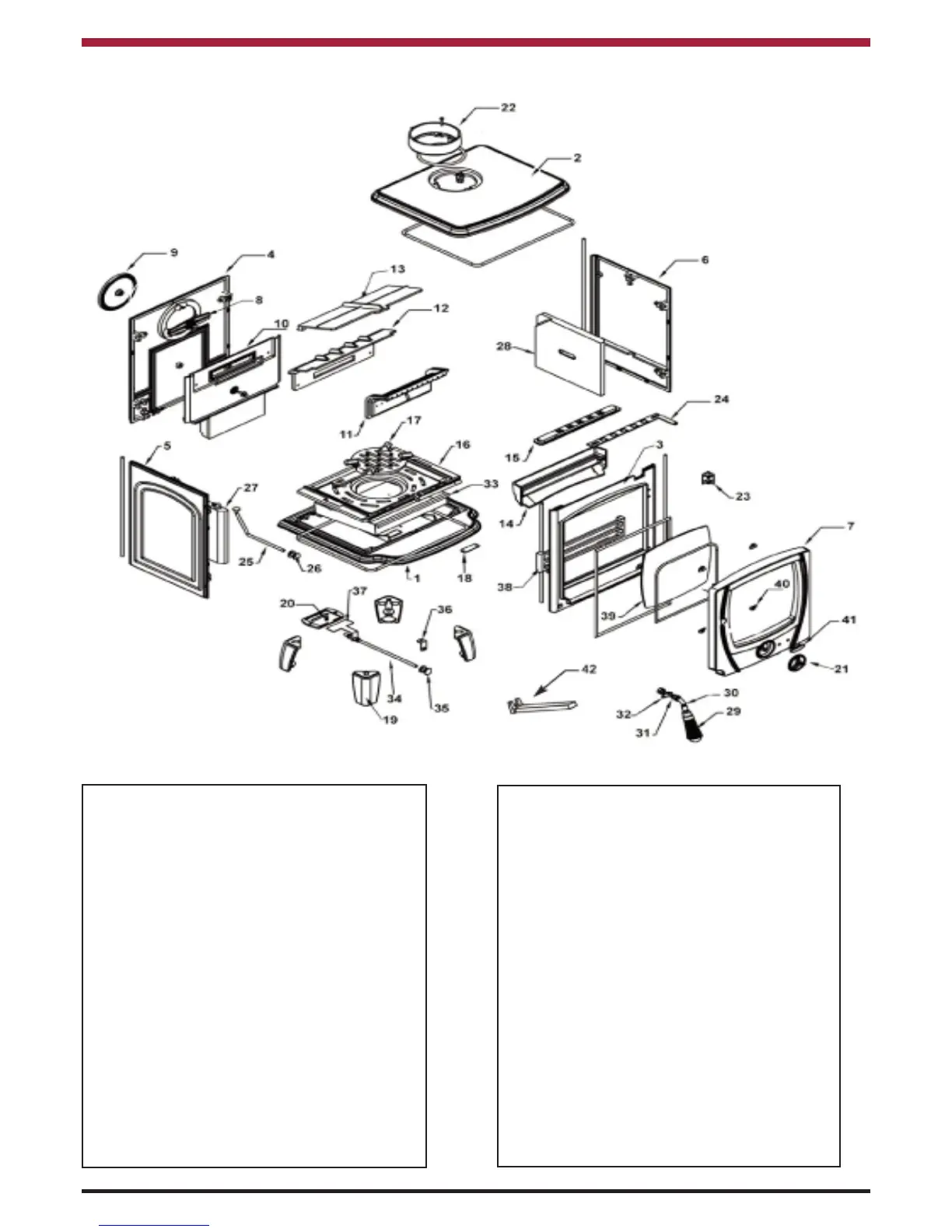

AOIFE SOLID FUEL STOVE EXPLODED VIEW
1. BASE - AF0501
2. HOB - AF0502
3. FRONT - AF0503
4. BACK - AF0504
5. LH SIDE - AF0505
6. RH SIDE - AF0506
7. DOOR - AF0507B
8. BLANKING PLATE LOCKING BAR - C125Y
9. FLUE COVER BLANKING PLATE - C125
10. BACK BRICK - AF0511
11. LOWER BAFFLE - AF0517
12. MIDDLE BAFFLE - AF0516
13. TOP BAFFLE - AF0518-CR
14. AIR WASH BASE - AF0509
15. AIR WASH COVER - AF0556
16. GRATE FRAME - AF0514-CR
17. GRATE - AF0515-CR
18. DATA PLAQUE - CAL0101-ZJ
19. LEG - AF0523
20. BACK AIR DAMPER - CA0903
21. SPIN VALVE - CAF0765
22. SPIGOT - I125
23. DOOR HINGE - CA1602
24. AIR WASH SHUTTER - CA1113-05
25. RIDDLING ROD - CA1401-SM05
26. PULL ROD KNOB - CA010402
27. LH SIDE BRICK - FR0512L
28. RH SIDE BRICK - FR0512R
29. FIRE DOOR HANDLE - CA0108-6
30. FIRE DOOR HANDLE AXLE - CA0101-ZH
31. SPRING WASHER - CA0502
32. DOOR CATCH - CA1505
33. ASHPAN - CA1205
34. DAMPER ROD - CA130106
35. DAMPER ROD KNOB - CA010402
36. DAMPER ROD BRACKET - CA01103
37. BACK AIR PLATE - CA0901
38. FIRE FENCE - AF0520-CR
39. DOOR GLASS - CA1005B
40. DOOR GLASS CLIPS - CA1112
41. DOOR BADGE - CAL0101
42. OPERATING TOOL - CA0105
