Stanley BR87 - Breaker Foot Assembly 11638

26 ► BR87 User Manual

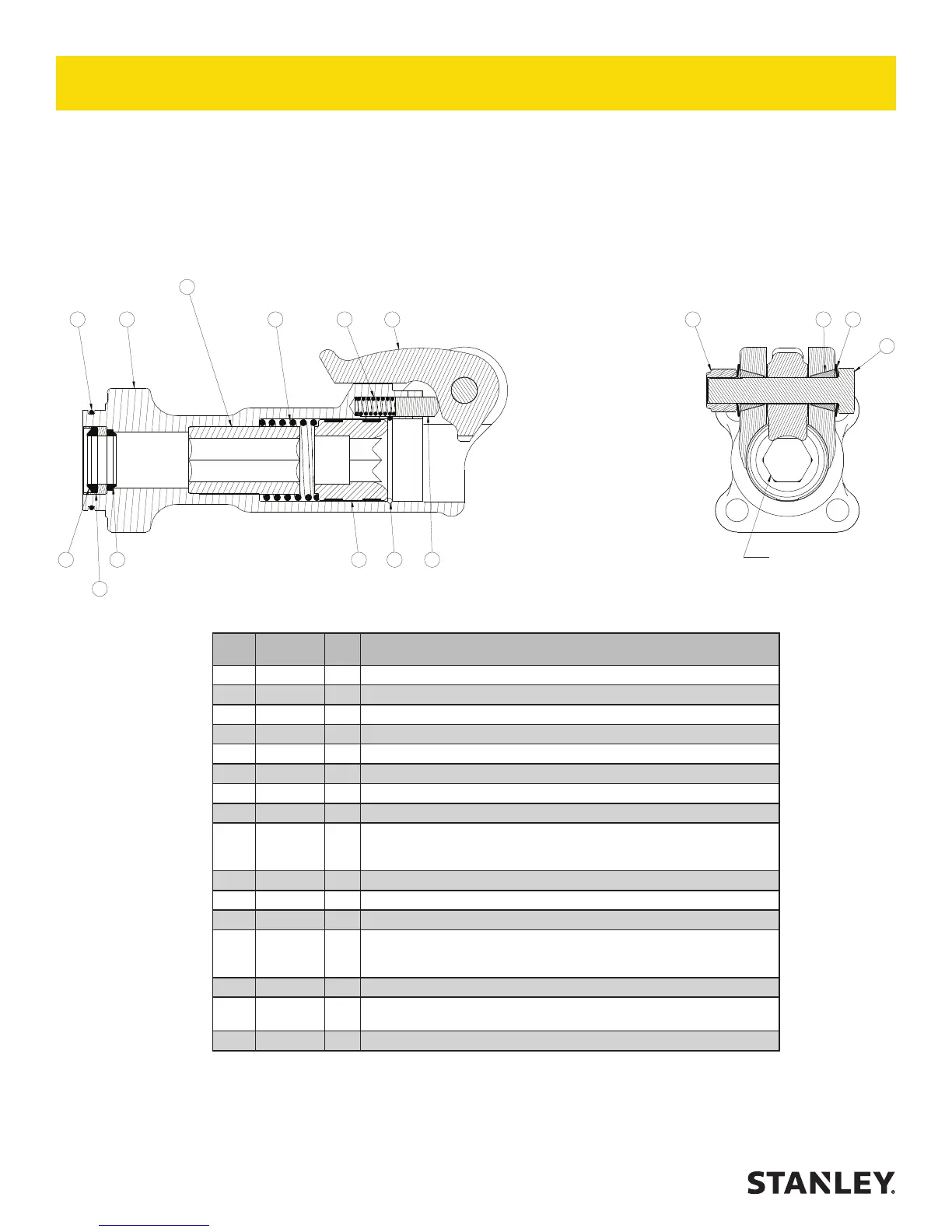

BREAKER FOOT ASSEMBLY 11638
BREAKER FOOT ASSEMBLY FOR MODEL BR8717201.
ITEM
PART
NO
QTY. DESCRIPTION
1 01269 2 TAPER SLEEVE
2 01744 1 COMPRESSION COIL SPRING
3 01837 1 LATCH (CASTING)
4 04073 1 O-RING 2-5/8 X 2-7/8 X 1/8 -231
5 04074 1 ROD WIPER (DISOGRIN #006-021)
6 04983 1 FOOT LATCH BOLT
7 04984 1 NYLOCK NUT 3/4-16UNF
8 04985 2 SPRING WASHER
9 05464 1 SEAL INSERT
10 07515 1 COMPRESSION COIL SPRING
11 07522 1 RETAINING RING
12 08411 1 DETENT
13 11230 1 HEX BUSHING 1-1/4"
14 11234 1 COLLAR SUPPORT ASSY.
15 11235 1 BREAKER FOOT
16 34127 1 CUP SEAL (DISOGRIN #500-151-000A)
ALIGN HEX AS SHOWN
2
3
4
5
9
10
11 12
13
14
15
16
1
6
7 8
Item
No. Part No. Qty Description
1 01269 2 TAPER SLEEVE
2 01744 1 COMPRESSION COIL SPRING
3 01837 1 LATCH (CASTING)
4 04073 1 O-RING 2-5/8” X 2-7/8” X 1/8” - 231
5 04074 1 ROD WIPER
6 04983 1 FOOT LATCH BOLT
7 04984 1 NYLOCK NUT 3/4”-16 UNF
8 04985 2 SPRING WASHER
9 11638 1 SEAL INSERT
(IF ORDERING SEAL INSERT, YOU MUST ORDER
COMPLETE FOOT ASSEMBLY, PART NUMBER 11638)
10 07515 1 COMPRESSION COIL SPRING
11 07522 1 RETAINING RING
12 08411 1 DETENT
13 11638 1 HEX BUSHING 1-1/4”
(IF ORDERING HEX BUSHING, YOU MUST ORDER
COMPLETE FOOT ASSEMBLY, PART NUMBER 11638)
14 11234 1 COLLAR SUPPORT ASSY.
15 11638 1 BREAKER FOOT (IF ORDERING FOOT, YOU MUST ORDER
COMPLETE FOOT ASSEMBLY, PART NUMBER 11638)
16 34127 1 CUP SEAL
