Stanley Cara+ - Exploded View

17

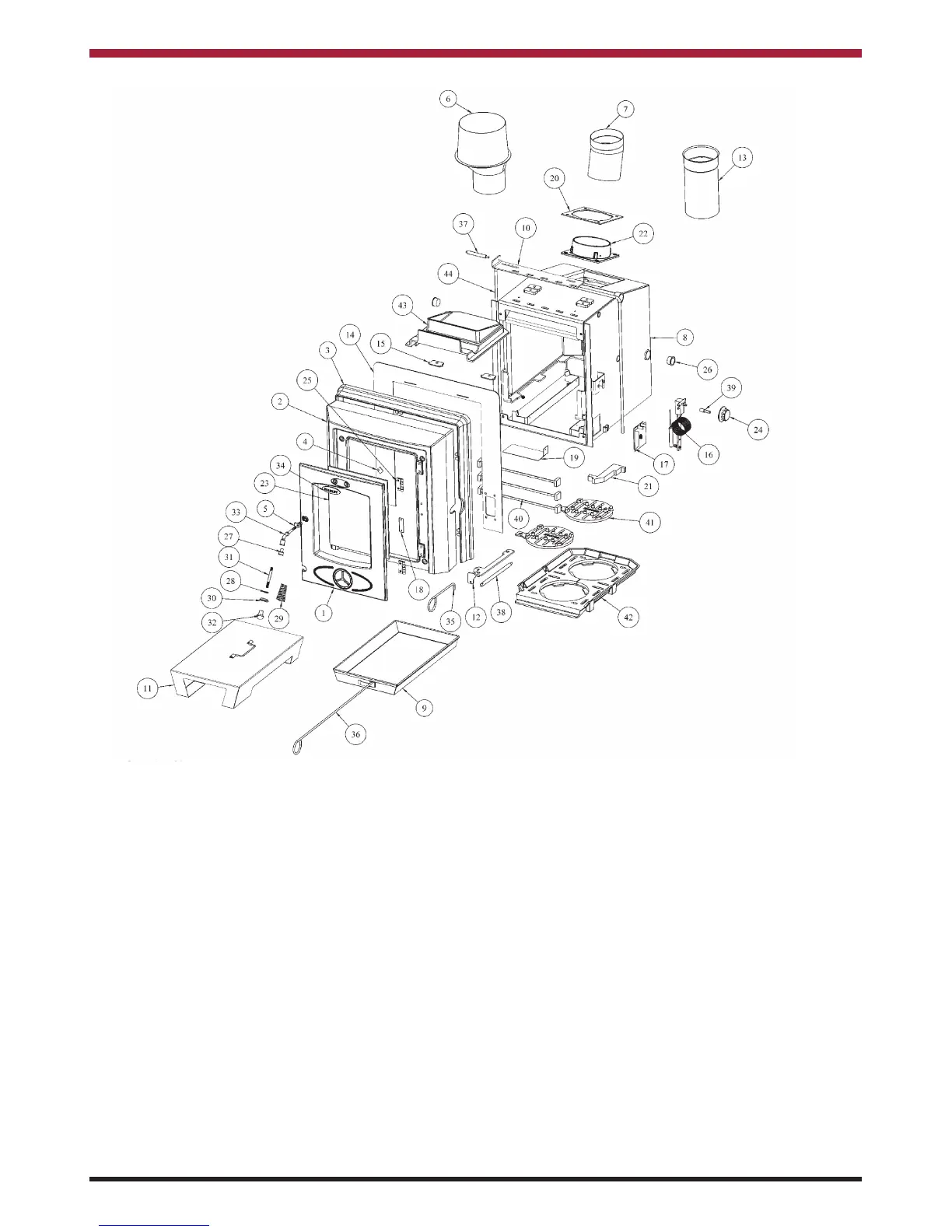

EXPLODED VIEW
1. FIRE DOOR - B00627AXX
2. FRONT CASTING - B00628AXX
3. FRONT CASTING SHROUD - B00632AXX
4. DOOR GLASS CLIP - F00003AXX
5. DOOR CATCH - F00928AXX
6. 8 - 5”ADAPTOR - F01037AXX
7. 15 DEG ADAPTOR - F01083AXX
8. BOILER ASSEMBLY - F01106AXX
9. ASH PAN - F01137AXX
10. AIR WASH SLIDER PLATE - F01143AXX
11. ASHPAN CADDY - F01149AXX
12. LINKAGE ASSEMBLY - F01181AXX
13. 5” X 250MM STRAIGHT PIPE - F01199AXX
14. WALL FLANGE PLATE - F01264AXX
15. WALL FLANGE FIXING PLATE - F01265AXX
16. THERMOSTAT - G00001AXX
17. DAMPER PLATE ASSY - L00667AXX
18. SERIAL NUMBER PLATE - N00234BXX
19. DATA PLAQUE - N00580AXX
20. FLUE GASKET - P00102AXX
21. AIR SEAL SPONGE - P00111AXX
22. 5” FLUE - Q00752AXX
23. 16” DOOR GLASS - T00098AXX
24. AIR CONTROL KNOB - U00006AXX
25. HINGE - U00153AXX
26. BOILER PLUG - V00016AXX
27. SPIGOT TO DOOR HANDLE - V00021AXX
28. BLACK NYLON CAP WASHER - V00669AXX
29. BLACK COIL SPRING HANDLE - V00806AXX
30. BLACK DIA INCREASING COLLAR - V00807AXX
31. BLACK M8 X 80 SPINDLE - V00808AXX
32. BLACK HANDLE END CAP - V00850AXX
33. DOOR AXLE - V00857AXX
34. BADGE - V00912AXX
35. TOOL - V01018AXX
36. ASHPAN TOOL - V01019AXX
37. AIR WASH PULL ROD - V01021AXX
38. RIDDLE PULL ROD - V01030AXX
39. THERMOSTAT CONNECTOR SHAFT - V01039AXX
40. FIRE FENCE - Z00020AXX
41. GRATE - Z00062AXX
42. GRATE HOLDER - Z00063AXX
43. TOP BAFFLE - Z00064AXX
