Stanley Dura-Glide 2000 - Page 29

iQ Control Box
01.25.2019
1.800.7.ACCESS • www.stanleyaccess.com • Document # 204144 REV B 29
Copyright 2019, Stanley Access Technologies, LLC. All rights reserved. Reproduction
in whole or in part without the express written permission of Stanley is prohibited.

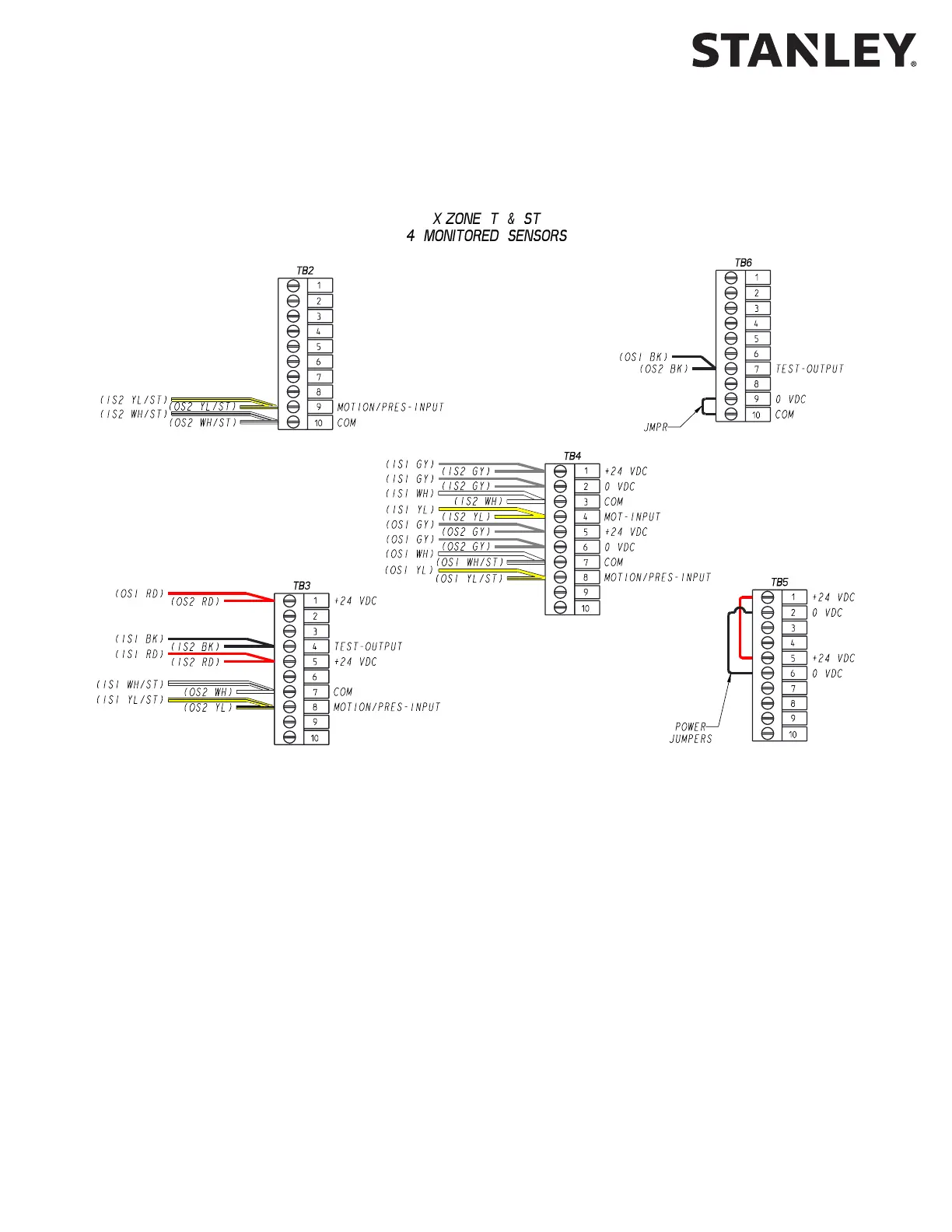

Attachment 2
iQ System Wiring Diagram
(Sheet 9 of 10)
X-Zone ST
For Security Applicaons / 1-WAY
Key DIP Switch sengs: 10 and 11 DOWN; 12, 13, 14, 15 and 16 UP.
X-Zone ST and X-Zone (ST)
Key DIP Switch sengs: 10 and 11 DOWN; 12, 14 and 15 UP.
iQ
Remove JP301.
Set index 19 to Value = 01 (Monitored 4 Sensors - Threshold Zone Control).
X-Zone T
Key DIP Switch sengs: 11 and 12 DOWN; 13 UP and 15 UP.
iQ
Remove JP301.
Set index 19 to Value = 05 (Monitored 4 Sensors).
NOTE: The X-Zone ST will replace the X-Zone (ST) in 2019.
