Stanley Oscar User Manual

12
Waterford Stanley Ltd.,
Unit 401-403, IDA Industrial Estate, Cork Road,
Waterford, Ireland.
Tel: (051) 302300 Fax (051) 302315
Rev: 002 DP 151126

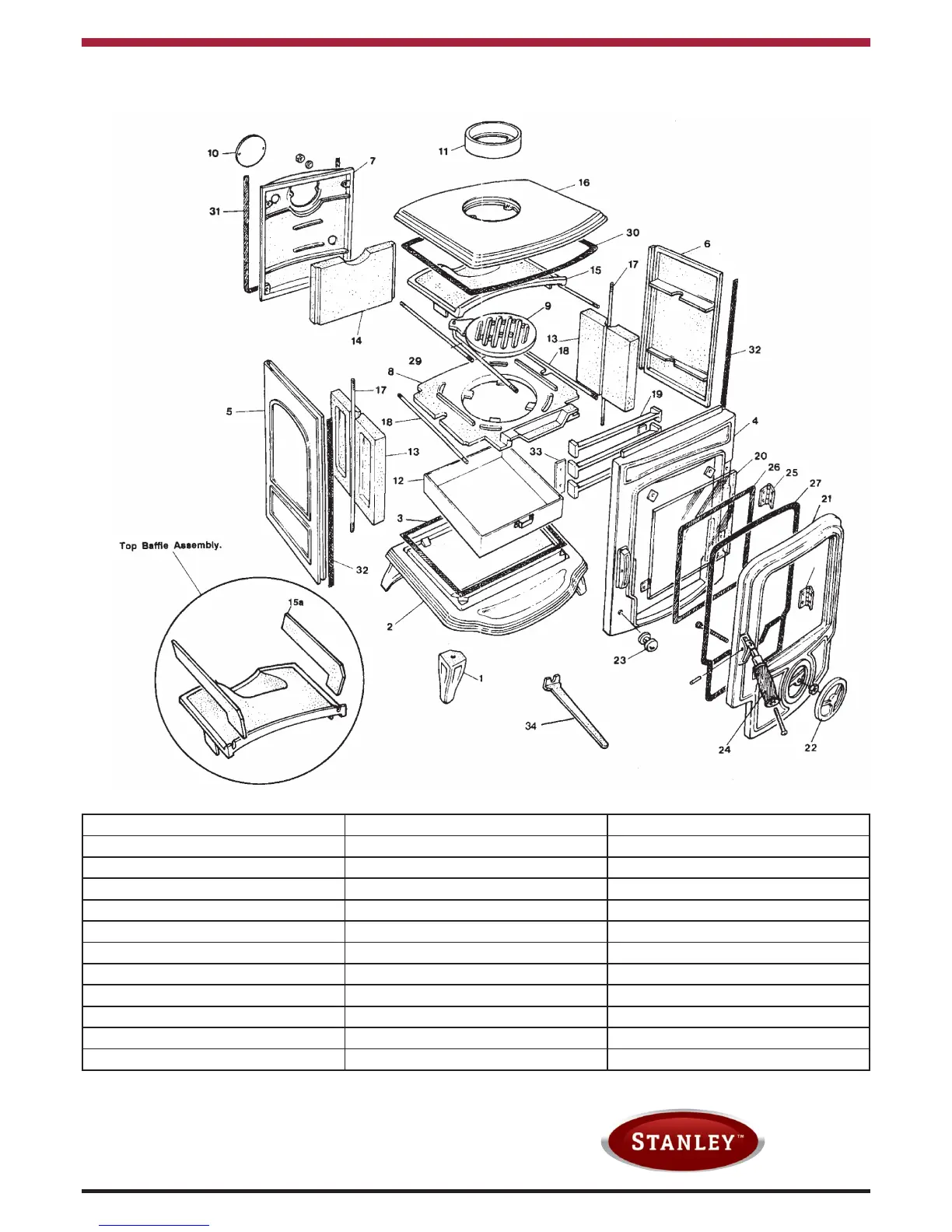

OSCAR SOLID FUEL STOVE EXPLODED VIEW
1. Legs 12. Ashpan 22. Spin Valve
2. Base 13. Side Bricks 23. Grate Shaker Control Knob
3. Base Sealing Tape 14. Back Brick 24. Door Handle
4. Front 15. Top Baffle 25. Door Hinges
5. Left Hand Side 15a.Top Protection Baffles 26. Door Glass Sealing Tape
6. Right Hand Side 16. Hob 27. Door Sealing Rope
7. Back Plate 17. Long Tie Bolts 29. Grate Shaker Connecting Rod
8. Grate Base Plate 18. Short Tie Bolts 30. Hob Sealing Rope
9. Grate 19. Fire Fence Bars 31. Back Plate Sealing Rope
10. Blanking Plate 20. Door Glass 32. Side Plate Sealing Rope
11. Flue Spigot 21. Door 33. Fire Fence Retainers
34. Operating Tool
