Stanley Oscar User Manual

CHIMNEY
The stove is a radiant room heater and must be con-
nected to a chimney of the proper size and type. The
chimney must have a cross-sectional area of at least
124cm
2
or a diameter of at least 125mm. Never
connect to a smaller size chimney. Do not connect
to a chimney serving another appliance. Minimum
chimney height 4.5 meters from floor on which stove
is installed.
A flue that has proved to be unsatisfactory, particu-
larly with regard to down draught should not be used
for venting this appliance until it has been examined
and any faults corrected.
An existing masonry chimney should be inspected
and if necessary repaired by a competent mason or
relined using an approved lining system. The stove
must be connected to a chimney with a minimum
continuous draught of 12 Pascal’s. Poor draught
conditions will result in poor performance. All regis-
ter plates, restrictor plates, damper etc., which could
obstruct the flue at a future date should be removed
before connecting this appliance. If connecting to
an existing chimney with a flue diameter of more
than 150mm it is necessary to line the flue using a
suitable stainless steel flue liner. Where a masonry

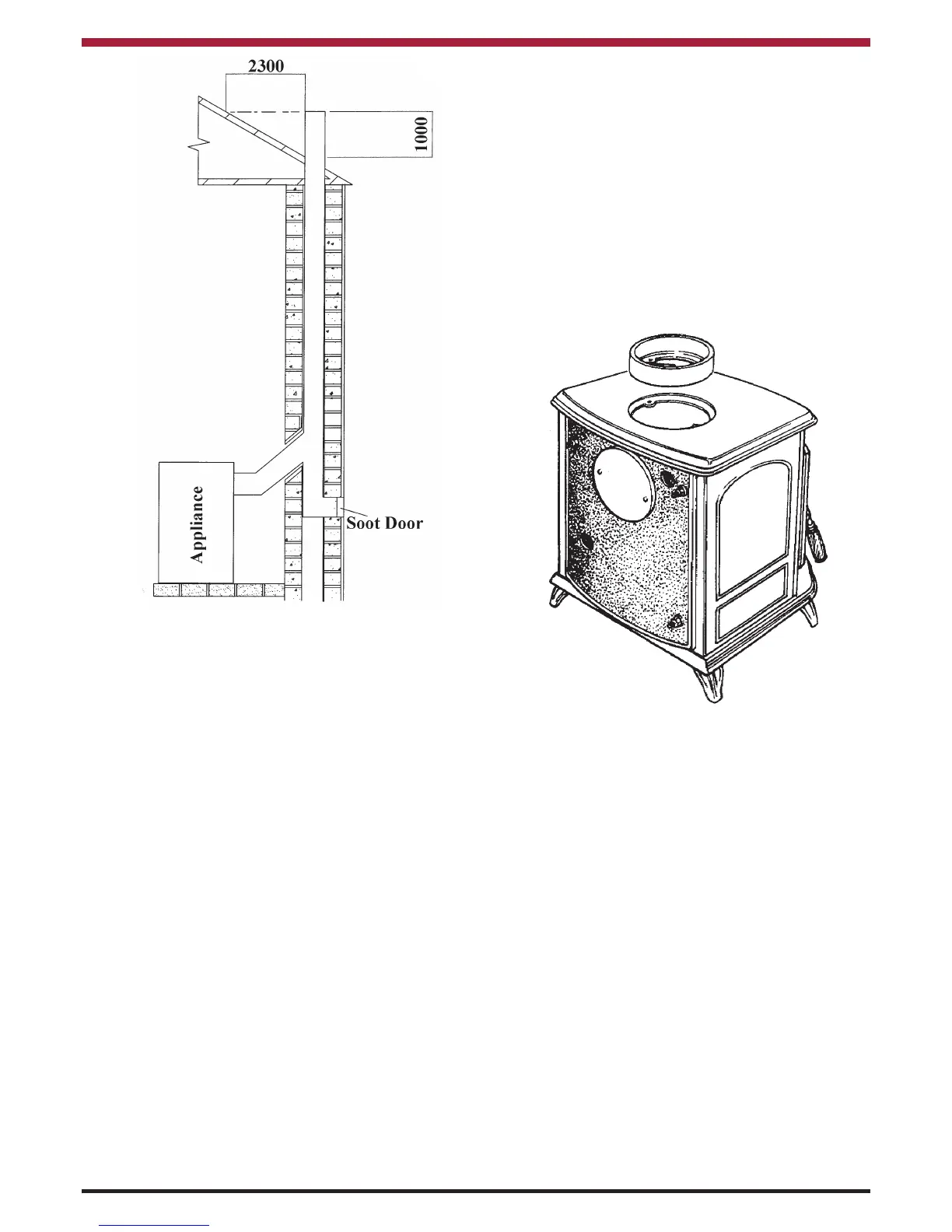

Fig.1
chimney is not available a proprietary type 125 –
150mm twin wall, fully insulated pipe may be used.
The pipe must terminate at a point not lower than the
main ridge of adjacent outside obstructions. With
such installation, access to the chimney must be
provided for cleaning purposes. (See Fig.1)
When flue piping passes through a closure plate
with a sliding door, ensure that the pipe continues
up and is ultimately connected to the flue liner and
well sealed with fire cement.
TOP FLUE EXIT
For the top outlet configuration, remove the blanking
plate (part no.10) from the hob, remove the flue
spigot (part no.11) from the back plate and fix it to
the hob. Fix the outlet blanking plate to back plate
(see Fig. 2). Push the flue outlet connector pipe (not
supplied) into the flue spigot and cement into place
using approved fire cement, ensuring that no
cement is blocking the flue passageway.
REAR FLUE EXIT
Push the flue connector pipe (not supplied) into the
flue spigot and cement into place using approved
fire cement ensuring that no cement is blocking the
flue passageway.
