PD45 User Manual ◄ 11
ACCUMULATOR TESTING PROCEDURE
To check or charge the accumulator the following
equipment is required:
• Accumulator Tester (Part Number 02835).
• Charging Kit Assembly (P/N 31254); (includes a
regulator, hose and ttings).
• NITROGEN bottle with an 800 psi/56 bar minimum
charge.
1. Remove the charging valve plug from the post driver.
2. Holding the chuck end of STANLEY tester (P/N
02835), turn the gauge fully counter-clockwise to
ensure the stem inside the chuck is completely
retracted.
3. Thread the tester onto the charging valve of the tool
accumulator (do not advance the gauge-end into
the chuck end; turn as a unit). Seat the chuck on the
accumulator charging valve and hand tighten only.
4. Advance the valve stem by turning the gauge-
end clockwise until pressure is read on the gauge
(charging pressure should be 500–700 psi/34–38
bar).
5. If pressure is OK unscrew the gauge-end from the
chuck to retract the stem, then unscrew the entire
tester assembly from the tool accumulator charging
valve. If pressure is low, charge the accumulator as
described in the following section.
6. Install the charging valve cap (or plug).
ACCUMULATOR CHARGING PROCEDURE
1. Perform Steps 1 through 4 of the Accumulator
Testing Procedure above.
2. Connect the chuck of the charging assembly to
the charging valve on the accumulator tester or, if
preferred, remove the tester from the tool charging
valve and connect the charging assembly chuck
directly to the tool charging valve.
3. Adjust the regulator to the charging pressure of 600
psi/42 bar.
Note: It may be necessary to set the regulator at
650–700 psi/45–48 bar to overcome any pressure
drop through the charging system.
4. Open the valve on the charging assembly hose.
5. When the accumulator is fully charged close the
valve on the charging assembly hose and remove
the charging assembly chuck from the accumulator
tester of tool charging valve.
6. If the accumulator tester has been used, be sure
to turn the gauge-end fully counterclockwise before
removing the tester from the charging valve of the
tool.
7. Replace the O-ring plug.

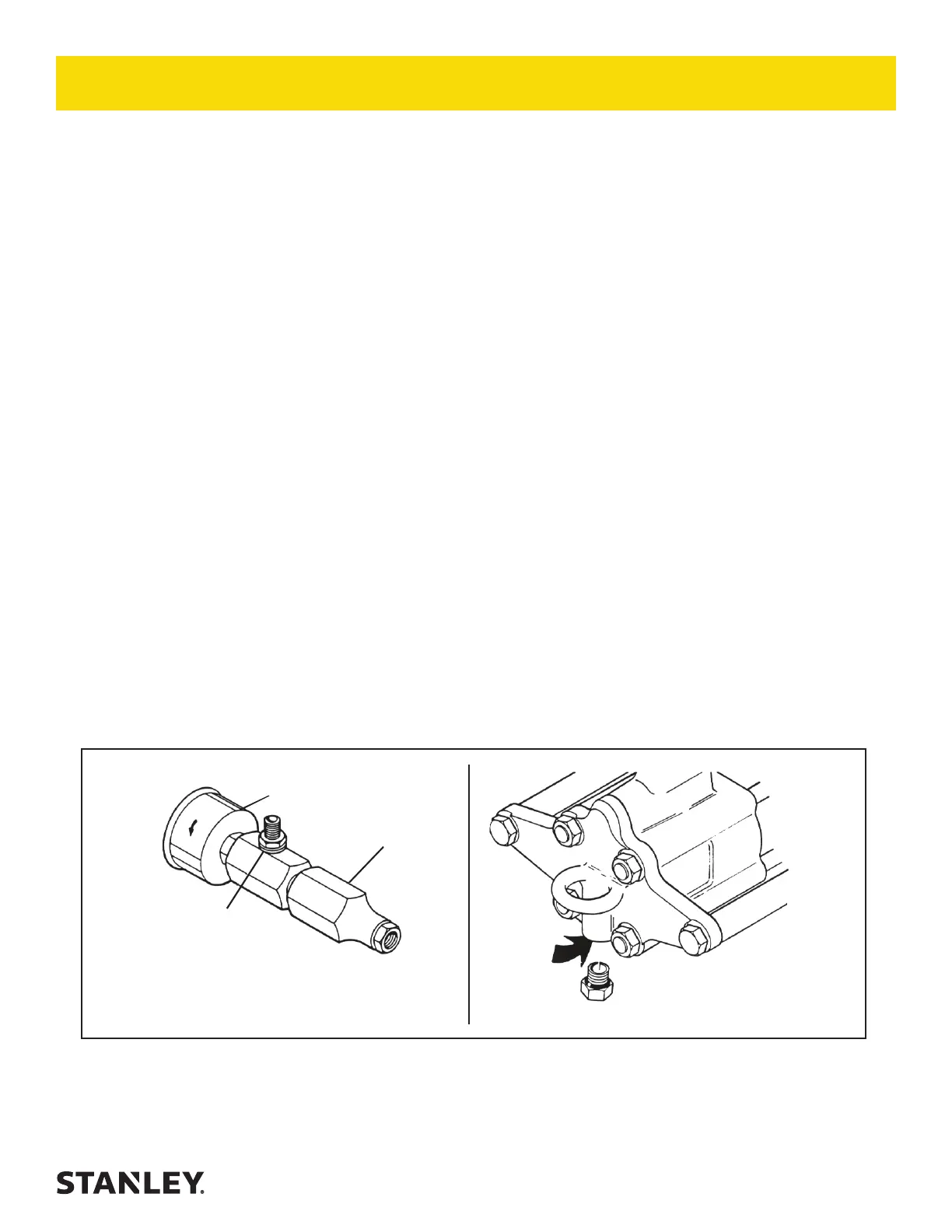

Guage
Chuck
Te s t er
Charging
Valve
Accumulator Tester (P/N 02835) Location Of Charging Valve
Figure 2. Charging the Accumulator
CHARGING THE ACCUMULATOR
