Stanley PD45 User Manual

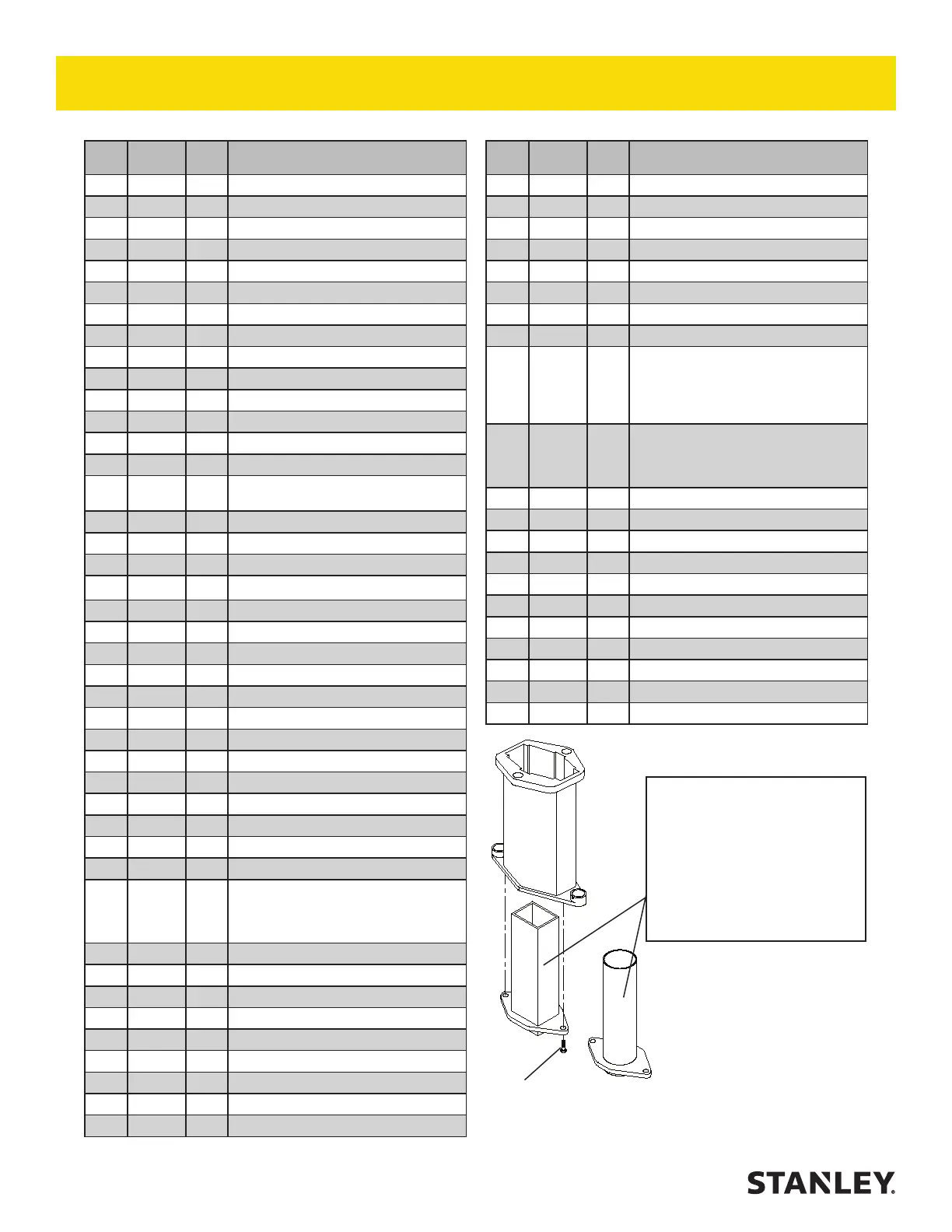

18 ► PD45 User Manual
ITEM
PART
NO. QTY DESCRIPTION
1 07493 1 O-RING PLUG–MALE
2 20499 1 CHARGE VALVE
3 20387 1 PLUNGER
4 12100 4 STEEL BALL 3/8 DIA.
5 00899 2 HHCS 1/4-20 UNC × 1/2 GR5
6 20386 1 COVER PLATE
7 04374 4 LOCK NUT 5/8-18
8 20390 1 LIFT STRAP
9 20384 1 SPACER
10 370351 4 HHCS 5/8-11 UNC × 1-3/4
11 20385 1 PILOT RING
12 02003 1 O-RING
13 20398 1 SUPPORT WASHER 3/4
14 08016 1 RETAINING RING 3/4 EXT
15 12139 2 SIDE ROD (PD45132 TAKES 2 OF
ITEM 15 & 2 OF ITEM 16)
15A 12139 4 SIDE ROD (PD45151 ONLY)
16 08087 2 SIDE ROD (PD45132 ONLY)
17 00293 1 O-RING
18 04056 1 ROD WIPER 5/16 × 9/16
19 01362 1 O-RING
20 04057 1 BUSHING
21 04077 1 VALVE SPOOL OC
21A 15188 1 VALVE SPOOL (PD45151 ONLY)
22 04058 1 SPRING
23 07479 1 ACCUMULATOR DIAPHRAGM
24 — — NO ITEM
25 01652 2 HOSE ASSY
26 — — NO ITEM
27 04381 2 BACK-UP RING
28 04379 2 O-RING
29 04378 1 PORTING BLOCK
30 07481 1 PISTON
31 72592 1 ADAPTER BLOCK (IF ORDERING
ADAPTER BLOCK YOU MUST ORDER
P/N 72592 ADAPTER BLOCK ASSY
WHICH INCLUDES ITEMS 48 & 49)
32 04387 1 ROD WIPER
33 04780 1 BACK-UP WASHER
34 04386 1 CUP SEAL
35 02022 1 O-RING
36 04383 1 FLOW SLEEVE TUBE
37 07485 1 FLOW SLEEVE
38 04605 4 PUSH PIN
39 02900 2 ROLL PIN
40 04382 1 AUTOMATIC VALVE
ITEM
PART
NO. QTY DESCRIPTION
41 04571 2 PUSH PIN
42 07480 1 AUTOMATIC VALVE BODY
43 11588 1 ACCUMULATOR VALVE BLOCK
44 20396 1 VALVE TOP PLATE
44A 15190 1 TOP PLATE (PD45151 ONLY)
45 20392 1 TRIGGER ASSY
46 00038 1 NUT 1/4-20 PLAIN
47 20399 1 OVAL PT SET SCREW 1/4
48 72592 1 UPPER ANVIL STOP (IF ORDERING
UPPER ANVIL STOP YOU MUST
ORDER P/N 72592 ADAPTER BLOCK
ASSY WHICH INCLUDES ITEMS 31 &
49)
49 72592 1 ANVIL BUSHING (IF ORDERING ANVIL
BUSHING YOU MUST ORDER P/N
72592 ADAPTER BLOCK ASSY WHICH
INCLUDES ITEMS 31 & 48)
50 12146 1 SPRING
51 15189 1 ANVIL
52 15182 2 HANDLE BAR
53 15194 2 SET SCREW
54 15170 1 POST DRIVER FOOT
55 20388 1 VALVE ACTUATOR HOUSING
56 74808 1 PD45 NAME TAG
57 03973 1 MALE COUPLER
58 03972 1 FEMALE COUPLER
04595 1 SEAL KIT
1/2-13 UNC x 1.250” Hex Head Capscrew (GR-5 Minimum)
P/N- 04661
Clean ID/OD of threads, apply 242 Loctite or equivalent,
torque to 50 ft-lbs.
ADAPTORS:
2” Round Post P/N-15185
1-3/4” SQ Post P/N- 15184
2” SQ Post P/N- 15187
2-1/4” SQ Post P/N- 15186
1-3/4” Round P/N- 67784
PD45132 / PD45151 PARTS LIST
