Stanley ProSert XTN20 Accessories Manual

Adaptor Kits for Japanese Market
This Mandrel Adaptor Kit is designed specically to allow Nippon POP Rivet Mandrels to be used with this
tool.

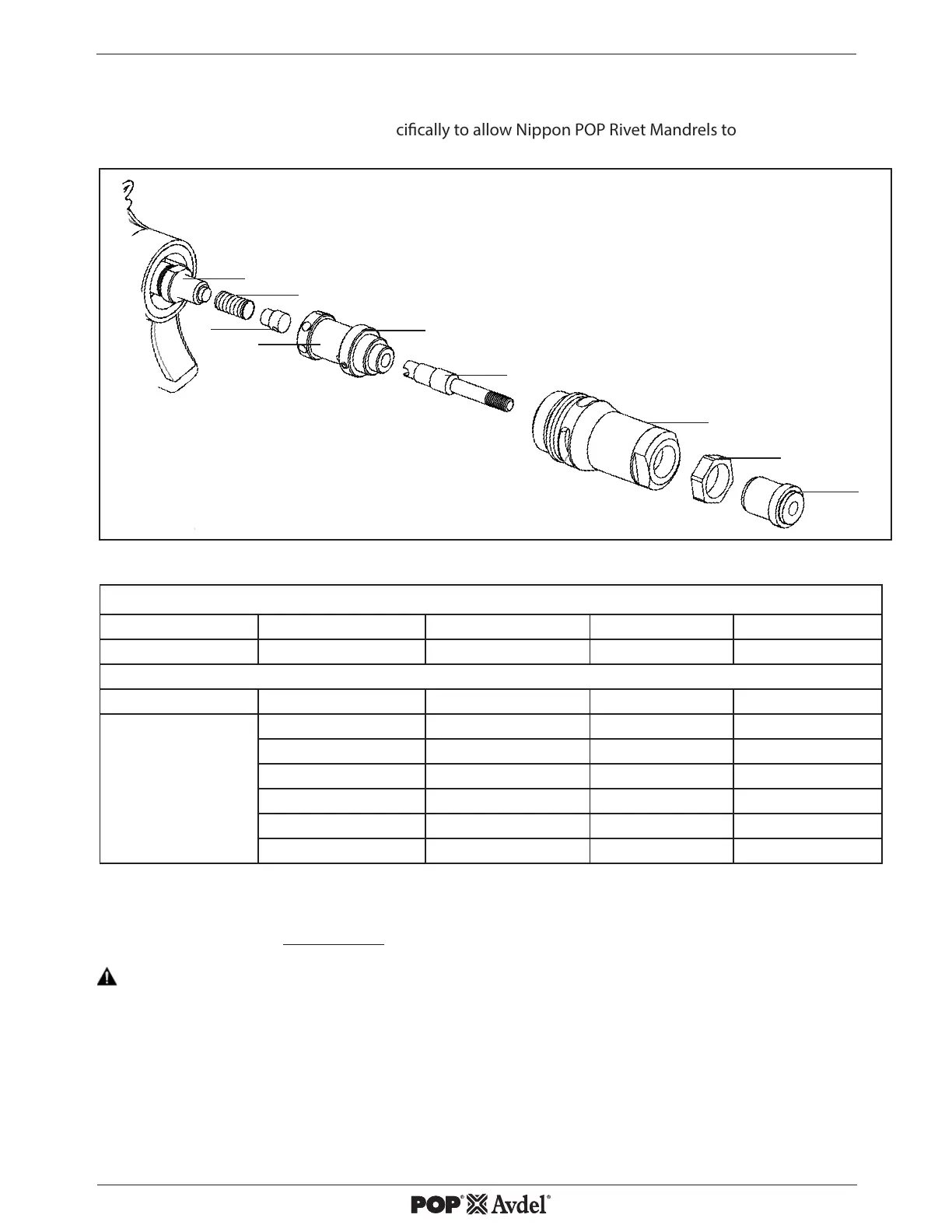

Mandrel Adapter Kit
- Assembly 4 15 16
Adapter kit 74202-02200 Nose Casing Locking Ring Mandrel Adapter
POP NUT
TM
Blind Rivet Nut
Thread Type Thread Size 1 2 3
Metric
M3 PNT600-01-3 PNT600-02-3 PNT600-03
M4 PNT600-01-4 PNT600-02-4 PNT600-03
M5 PNT600-01-5P PNT600-02-5 PNT600-03
M6 PNT600-01-6P PNT600-02-6 PNT600-03
M8 PNT600-01-08 PNT600-02-8 PNT600-03
M10 PNT600-01-10A PNT600-02-10 PNT600-03
The above table refers to Fig. 3.
Fitting Instructions
For disassemby please see Fig. 1 Page 2. Item numbers in bold refer to components in this drawing
t IMPORTANT Air supply must be disconnected from the tool before working on the nose assembly.
t Using a 19 mm Spanner unscrew Nose Casing 4.
t Retract the Nose Rod 9 and remove the Chuck Nut 5 by hand.
t Using a 14mm Spanner and the 4mm Push Pin, undo the Mandrel Adapter 8 from the Locking Nut and
remove.
19
3
4
15
16
1
18
17
Fig.3
2
ENGLISH
5
