FITTING THE MCS5000 ADAPTER KITS
IMPORTANT - READ THE SAFETY WARNINGS LISTED IN THE PROSET XT1 AND PROSET XT2 INSTRUCTION
MANUAL CAREFULLY BEFORE PUTTING INTO SERVICE.
IMPORTANT - THE AIR SUPPLY MUST BE TURNED OFF OR DISCONNECTED BEFORE FITTING OR
REMOVING THE MCS5000 ADAPTER KITS.
Refer to g. 19 and the table 9,10 below.
Table 9 - TRM00309 - MCS5000 ADAPTOR KIT for XT1
Item Part Number Description Qty
1 TRM00033 Collector Adaptor Cover 1
2 TRM00492 De ector Adaptor Assembly 1
3 TRM00493 Ejector Assembly 1
Table10 - TRM00310 - MCS5000 ADAPTOR KIT for XT2
Item Part Number Description Qty
1 TRM00033 Collector Adaptor Cover 1
2 TRM00492 De ector Adaptor Assembly 1
3 TRM00494 Ejector Assembly 1

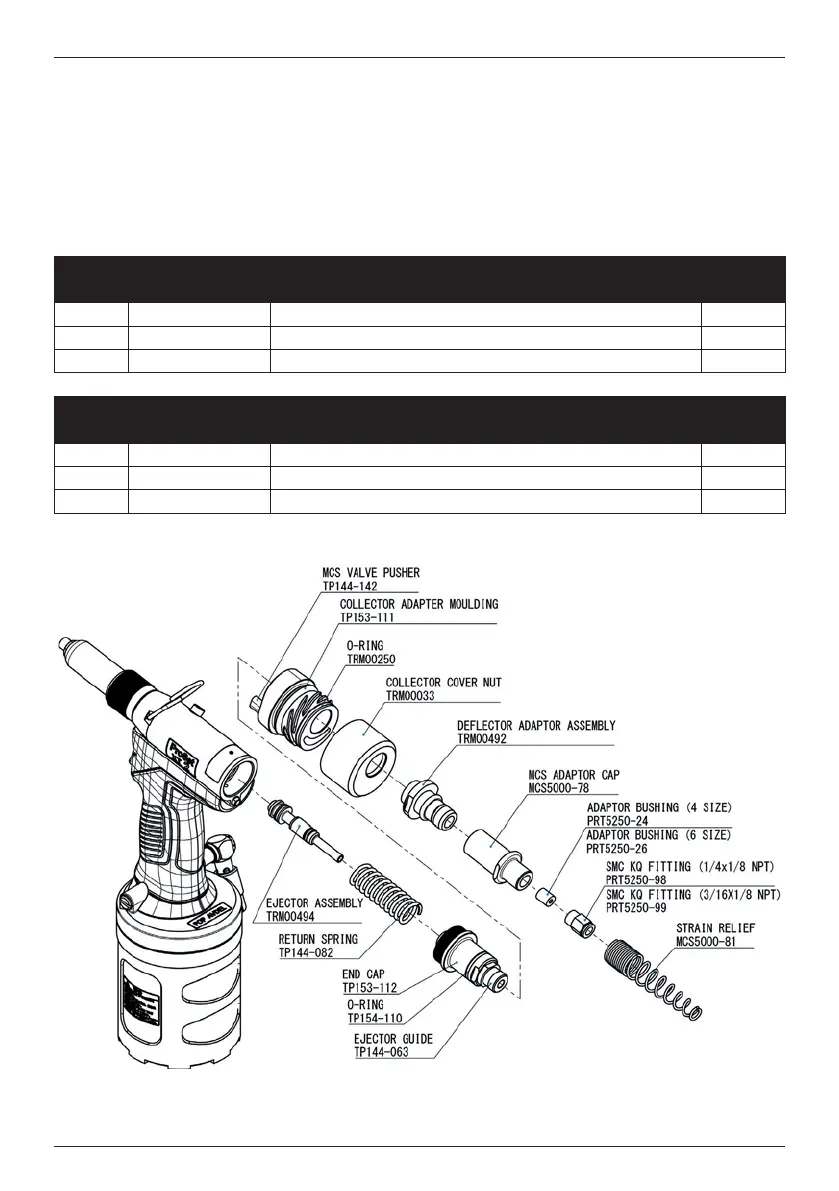

Fig. 19
