10
ENGLISH
SWIVEL HEAD SERVICING INSTRUCTIONS
Swivel heads should be serviced at weekly intervals.
• Remove the complete head using the reverse
procedure to the ‘Fitting instructions’ omitting step
‘L’.
• If Guard (1) is at all damaged it must be replaced by
anew one.
• Any worn or damaged parts should be replaced.

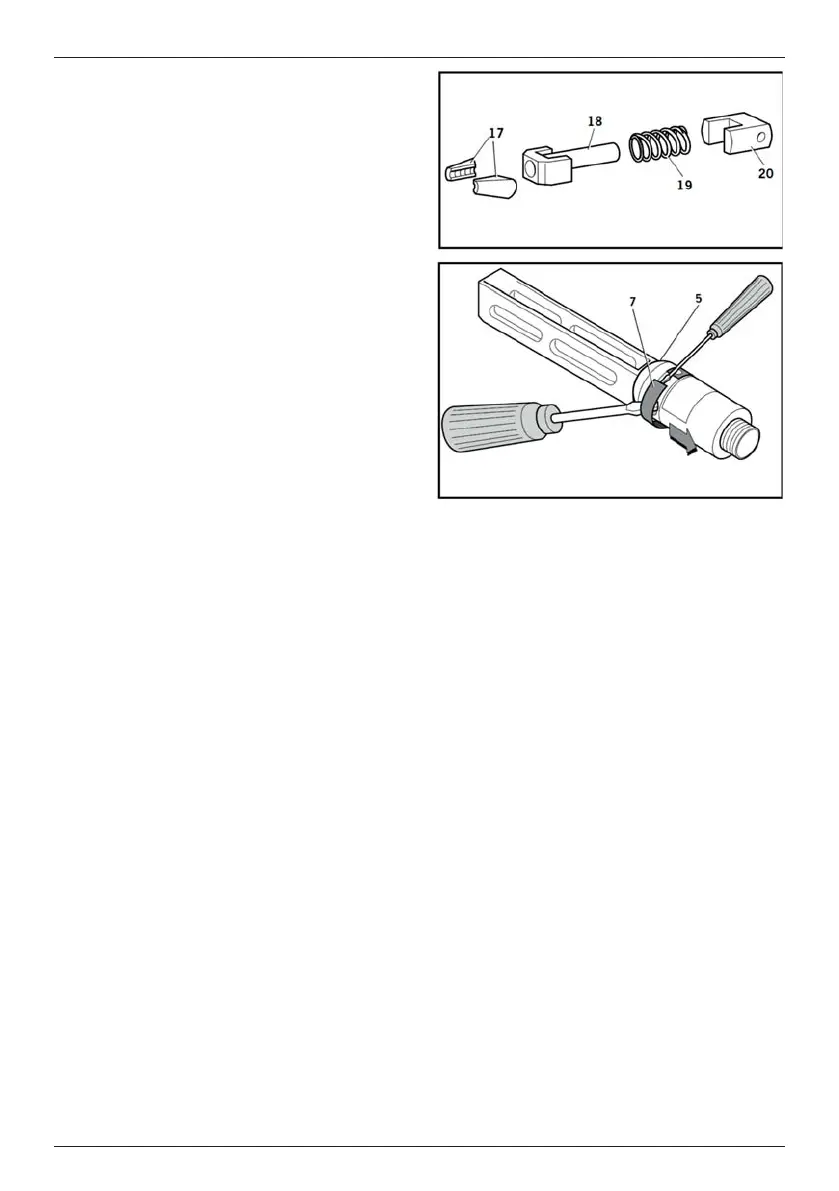

• Pay particular attention to jaw carrier items in the
upper illustration opposite as follows:
• Check wear on Jaws (17).
• Check that Jaw Spreader Tube (18) is not distorted.
• Check that Spring (19) is neither broken or
distorted.
• Check that Spring Guide (20) is not damaged.
• Check that Spring clip (7) is not distorted. When
removing Spring Clip (7), use two screwdrivers as
shown in the lower illustration opposite.
• Check for excessive wear on slots of Body (5).
• Assemble according to tting instructions.
Item numbers in bold refer to Swivel Head illustrations
g. 9 and g. 10 on this page. Guard (1) refers to g. 7
and g. 8 on page 5 and the table on page 6.
5. PIN TAIL DEFLECTOR KIT
The Pin Tail de ector is avery simple alternative to the standard stem collector and allows access in restricted
areas. To replace the stem collector with the stem de ector proceed as follows:
PREPARING THE BASE TOOL TO ACCEPT THE PIN TAIL DEFLECTOR KIT
IMPORTANT - READ THE SAFETY WARNINGS LISTED IN THE PROSET XT1 AND PROSET XT2 INSTRUCTION
MANUAL CAREFULLY BEFORE PUTTING INTO SERVICE.
IMPORTANT - THE AIR SUPPLY MUST BE TURNED OFF OR DISCONNECTED BEFORE FITTING OR
REMOVING THE PIN TAIL DEFLECTOR KIT.S
Fig. 9
Fig. 10
