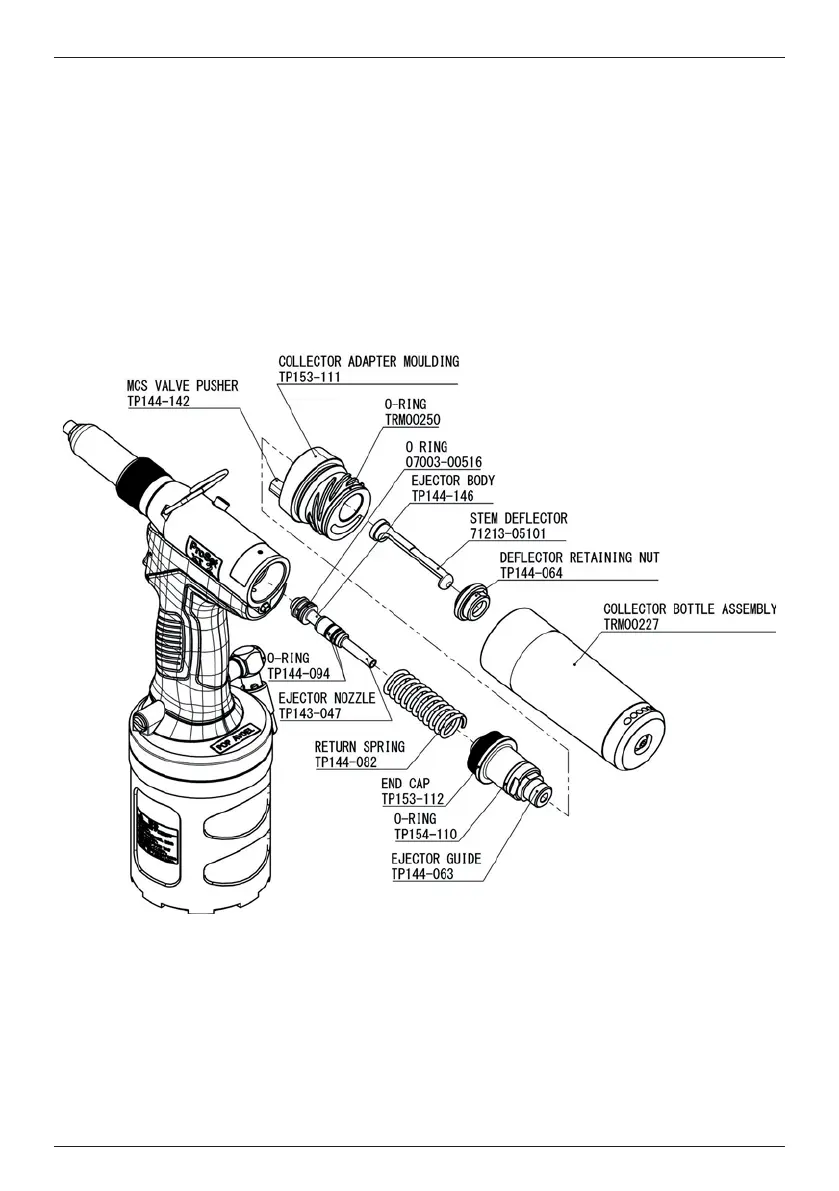

Refer to  g.11 and the table 4 on page 9. Refer also to the ProSet XT1 and ProSet XT2 Service Manuals.
• The air supply must be disconnected.
• Rotate Collector Bottle Assembly (TRM00227) anti-clockwise and remove from the Collector Adapter
(TP153-111).
• Unscrew and remove De ector Retaining Nut (TP144-064) together with the Stem De ector (71213-
05101).
• Remove Collector Adapter (TP153-111) together with MCS Valve Pusher (TP144-142), O-Ring (TRM00250)
from End Cap (TP153-112).
• Unscrew and remove End Cap (TP153-112) together with O-Ring (TP154-110), Ejector Guide (TP144-063).
• Remove Return Spring (TP144-082) and Ejector Nozzle (TP143-047), Ejector Body (TP144-146) together
with O-Ring (TP144-094), O-Ring (TP144-094).
Fig. 11
