Stanley ProSet XT2 Original Instruction

9
ENGLISH
I. Insert Spindle (11) through Adaptor (9) into Jaw Carrier (3) until the hole lines up with slot in Body (5).
Temporarily hold in place with Pin (6).
J. Insert Pin (12) through the front slot of Body (5) into Jaw Carrier (3).
K. Hold the assembly vertical to prevent all pins dropping out and slide the jaw carrier assembly back and
forth afew times to ensure free movement. Go to M.
L. Remove Screws (23) (4 o ) and Guard (1). On astraight swivel head also remove Screw (21) and Platform
(22).
M. Push Pin(s) (6) out and let Spindle (11) drop out. Screw Spindle (11) onto the Jaw Spreader Housing (24),
leaving the small screw  xing hole uppermost for straight swivel. Tighten gently with atommy bar.
N. Screw the assembly over Spindle (11) onto the tool. Replace Pin(s) (6).
O. On straight swivel heads attach Platform (22) onto the top of the Spindle (11) with Screw (21). Deburr the
back end of Platform (22) so that it cannot catch on Guard (1).
P. Snap Guard (1) over the assembly, align screw holes in guard with tapped holes in body assembly.
Q. Insert Pivot Pin (15) through slots in guard and hole in body. Fit Circlip (2) onto pivot pin so that the circlip
seats in groove provided.
R. Coat the thread of Screws (23) (4 o ) with thread locking adhesive and screw into body assembly
securing guard to body assembly.

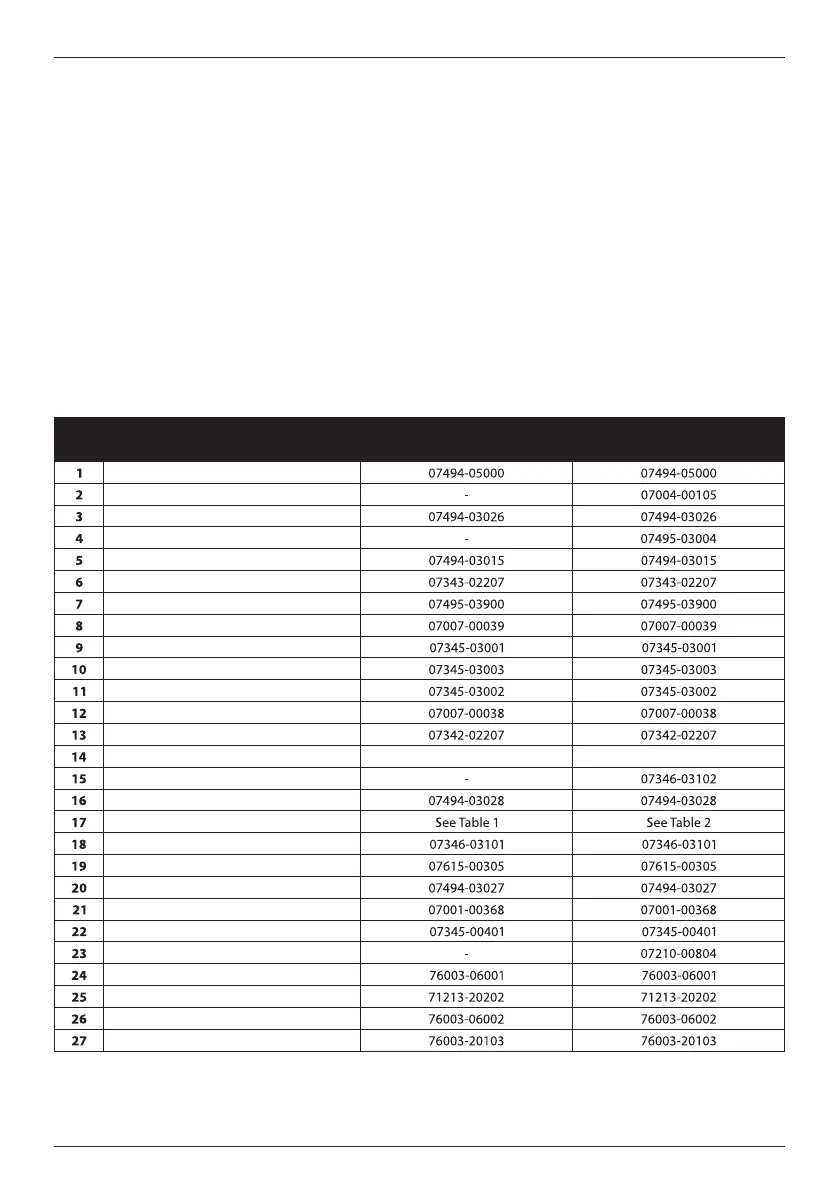

Table 3 - PARTS LIST - STRAIGHT & RIGHT ANGLED SWIVEL HEAD
Item Description STRAIGHT SWIVEL RIGHT ANGLED SWIVEL
Guard
Circlip
Jaw Carrier
Lever
Body
Pivot Pin
Spring Clip
Roller
Adapter
Locking Ring
Spindle
Dowel Pin
Screw
Nose Tip See Table 1 See Table 2
Pivot Pin
Screw
Jaws
Jaw Spreader
Spring
Spring Guide
Screw
Platform
Screw
Jaw Spreader Housing
Stop Nut
Safety Cap
Collector Adapter Cover
