Wireless Tag Reader Installation Guide
Configuring the WTR
WTR configuration involves four steps:
• Setting the
LF field strength (the WTR must be in Test Mode),
• Selecting the
operating mode,
• Setting the
unique address for the WTR, and
• Setting the
indicator LEDs and buzzer.
Power Supply and
Terminal Block
Reset Button
Field Strength
Options DIP Switch
Address DIP Switch
Tuning Switches
Adjuster
(DO NOT ADJUST)
Dry Contact Input
(operating modes,
EOL resistors, and
input edge selection)

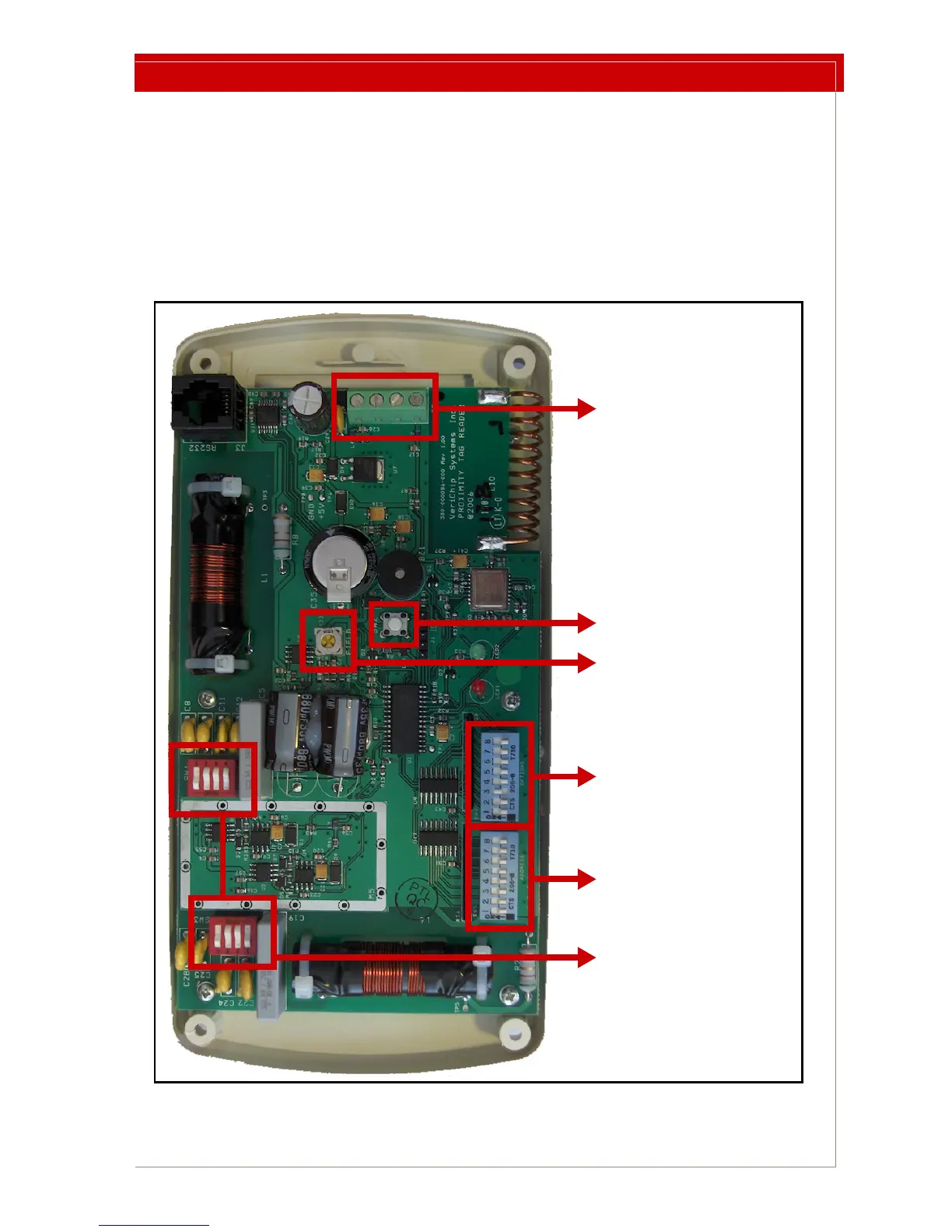

Figure 5: WTR Circuit Board
