14
ASSEMBLY
Unpacking
Note: Carefully unpack your chainsaw. Dispose of all packing
material in an environmentally responsible manner.
Remove from plastic bag.
Note: Plastic bags can be a danger to young children, dispose of
immediately.
Your chainsaw requires the blade to be fitted, once fitted you will
need to understand these parts. It is suggested to wear gloves
during assembly:
ON/OFF Switch
The ON/OFF SWITCH is used to stop the engine.
Throttle Trigger
The THROTTLE TRIGGER controls engine speed.
Safety Trip Lever
The SAFETY TRIP LEVER must be pressed before you can squeeze
the throttle trigger. This feature prevents you from accidentally
squeezing the trigger.
Choke Lever
The choke and fast idle are set by pulling the CHOKE LEVER out
to the full extent for cold starting or after refuelling. The choke
provides additional fuel to the engine during cold starting.
Primer Bulb
The PRIMER BULB circulates fuel to the carburettor to provide
quicker starting.
Chain Brake
The chain brake is a device designed to stop the chain if kickback
occurs. The chain brake activates automatically in the event of
kickback. The chain brake activates manually if the front hand
guard is pushed forward. The chain brake is disengaged by pulling
the front hand guard back toward the front handle as far as
possible.
Chain Tension
It is normal for a new chain to stretch during the first 5 minutes of
operation.
Ensure the engine is always SWITCHED OFF before fitting or
adjusting the chain. You should check your chain tension frequently.
See CHAIN TENSION on page 16.

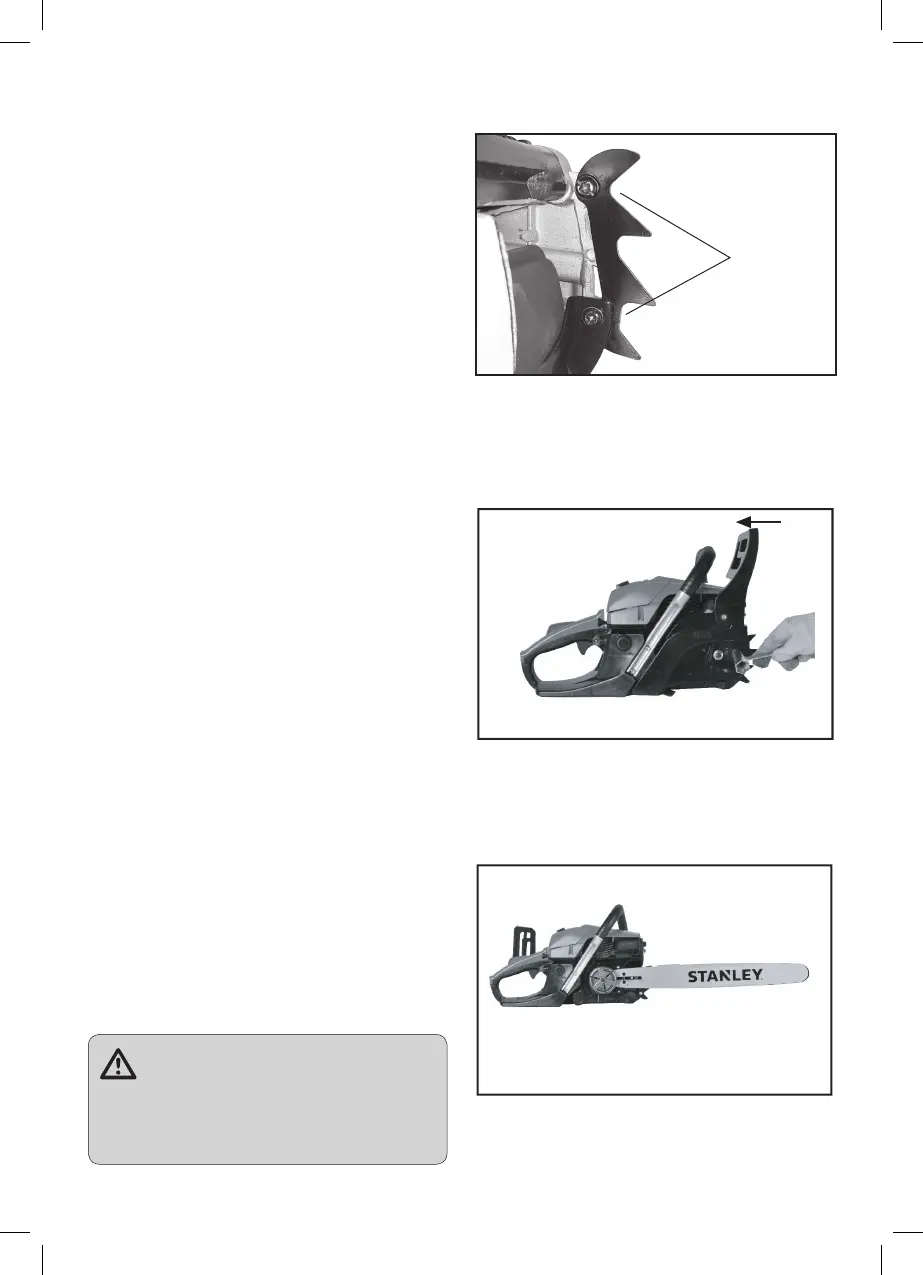

Claw Stop Assembly (PIC. 6)
Bar and Chain Assembly (PIC. 7 to 11)
Assemble the claw stop using the 2 supplied screws.
Screws
Remove the sprocket wheel cover by undoing the two guide bar nuts .
Place the guide bar with the notched end on the two guide bar bolts
WARNING
Muffler is very hot during and after use. Do not touch the
muffler or allow combustible material such as dry grass or
fuel to do so.
PIC. 6
PIC. 7
PIC. 8
