15
IMPORTANT! The chain must not slip off the guide bar. The
chain links must be positioned precisely between the teeth of the
sprocket wheel. The chain adjustment tang on the sprocket wheel
must insert into the hole on the guide bar.
• Now fit the two guide bar nuts again. Only tighten them by
hand at this stage. Follow the details in chain tensioning to
finish the assembly.
• Now fit the sprocket wheel cover again. Ensure that the chain
adjustment tang engages in the hole on the guide bar. Only
then will it be possible to fit the sprocket wheel cover correctly.
Pic 11
• Now place the chain over the tip of the bar. Ensure that the
chain links are positioned in the guide bar groove. The chain will
sag downwards on the bottom of the guide bar. Pic 10

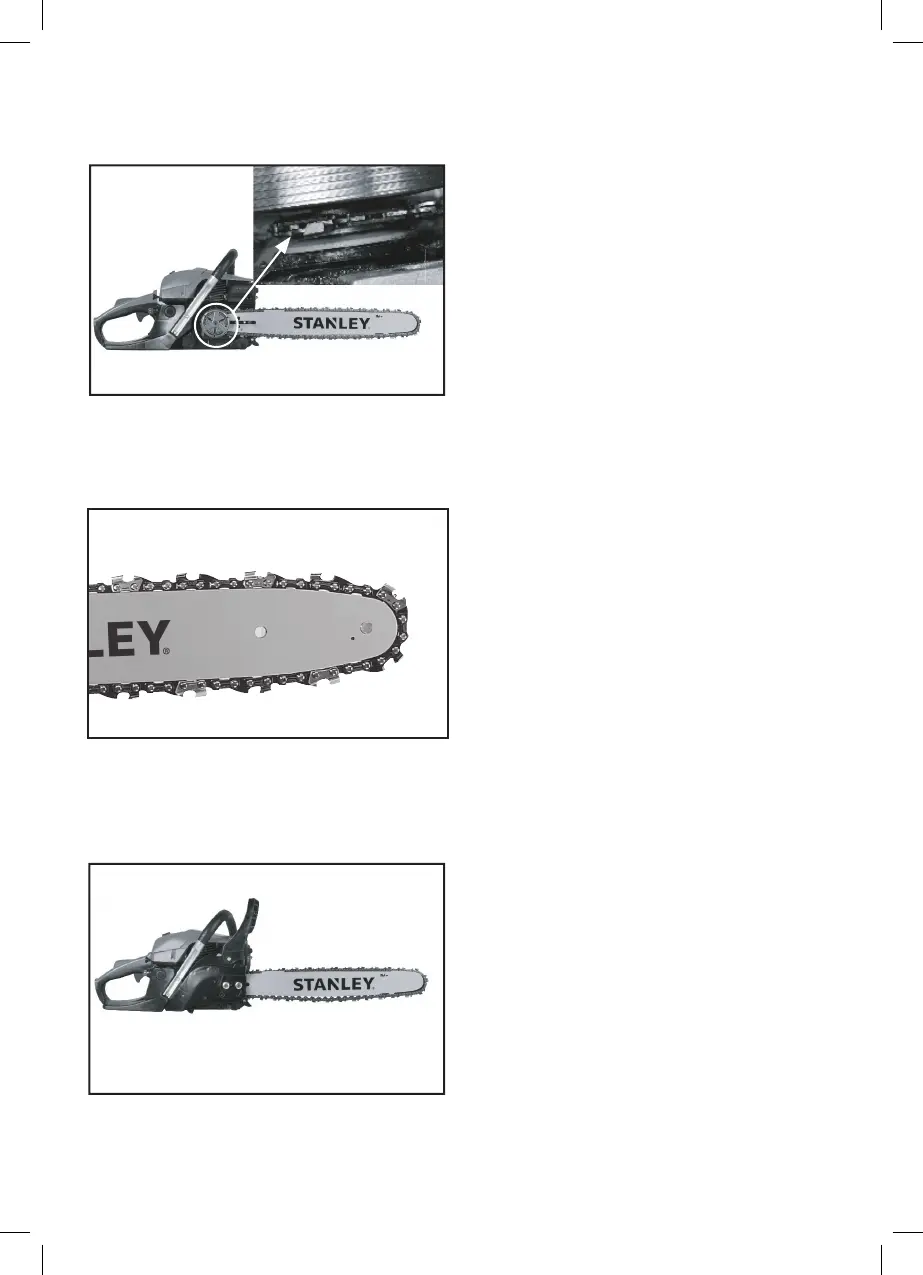

Fit the saw chain
• Lay out the chain in a loop. Ensure that the cutting claws
point in a clockwise direction.
• Push the chain over the coupling on to the sprocket wheel
on the chainsaw. Ensure that the chain links are positioned
precisely between the teeth of the sprocket wheel. Pic 9
PIC. 9
PIC. 11
PIC. 10
