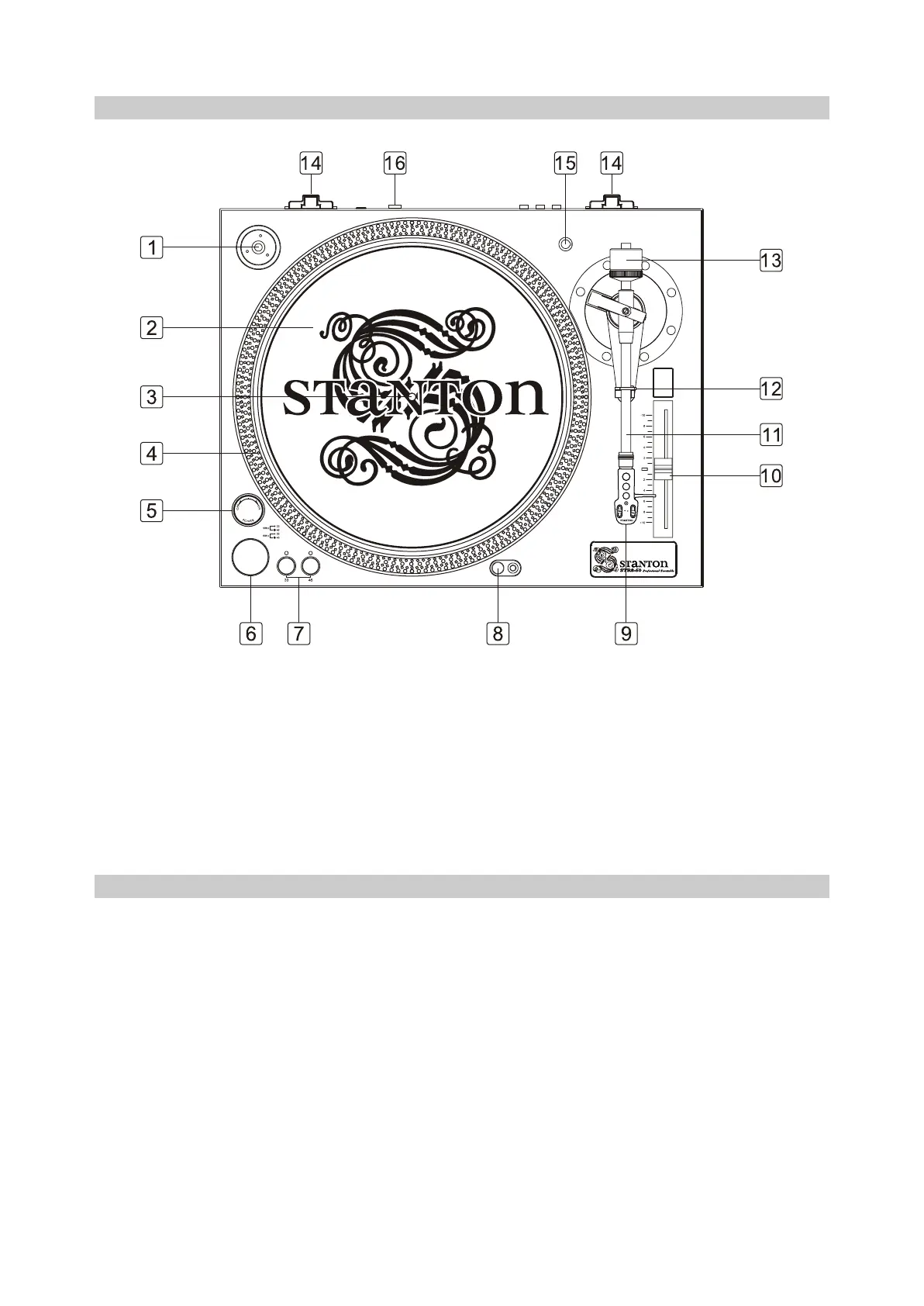

NAME OF PARTS
1) 45-rpm Adaptor
2) Slip Mat
3) Center Spindle
4) Strobe Dots
5) Power Switch/Strobe
6) Start/Stop Button
7) Speed Select Button
8) Target Light
9) Headshell
10) Pitch Control Slider
11) Tonearm
12) Arm Rest
13) Counterweight
14) Hinge For Dust Cover
15) Position For Preparing Cartridge
16) Remote Control:This jack can be connected with a
external switch to perform the Start/Stop operation.
BEFORE USE
*Check following parts included in the package with the
main unit:
1) Turntable platter
2) Slip mat
3) Dust cover
4) 45-rpm adaptor
5) Counterweight
6) Headshell
7) Operating instructions
*Notes:
1) Do not connect the AC power plug before
assembly has been completed.
2) Before turn on the power, check that the voltage
setting is correct.
3) Read this manual carefully before using the unit
and be sure to store the manual in a safe place for
future reference.
START/STOP
