p/n 2M-Z19504 Owners Manual DW, DWN Drawer Warmer Series
3
TABLE OF CONTENTS
WARRANTY xi
SPECIFICATIONS 1
FEATURES & OPERATING CONTROLS 2
PRECAUTIONS & GENERAL INFORMATION 3
AGENCY LISTING INFORMATION 3
INSTALLATION 4
OPERATION 6
CLEANING INSTRUCTIONS 8
TROUBLESHOOTING SUGGESTIONS 9
MAINTENANCE INSTRUCTIONS 10
EXPLODRD VIEW & PARTS LIST 11
WIRING DIAGRAM 13
PARTS & SERVICE 17
CUSTOMER SERVICE DATA 17

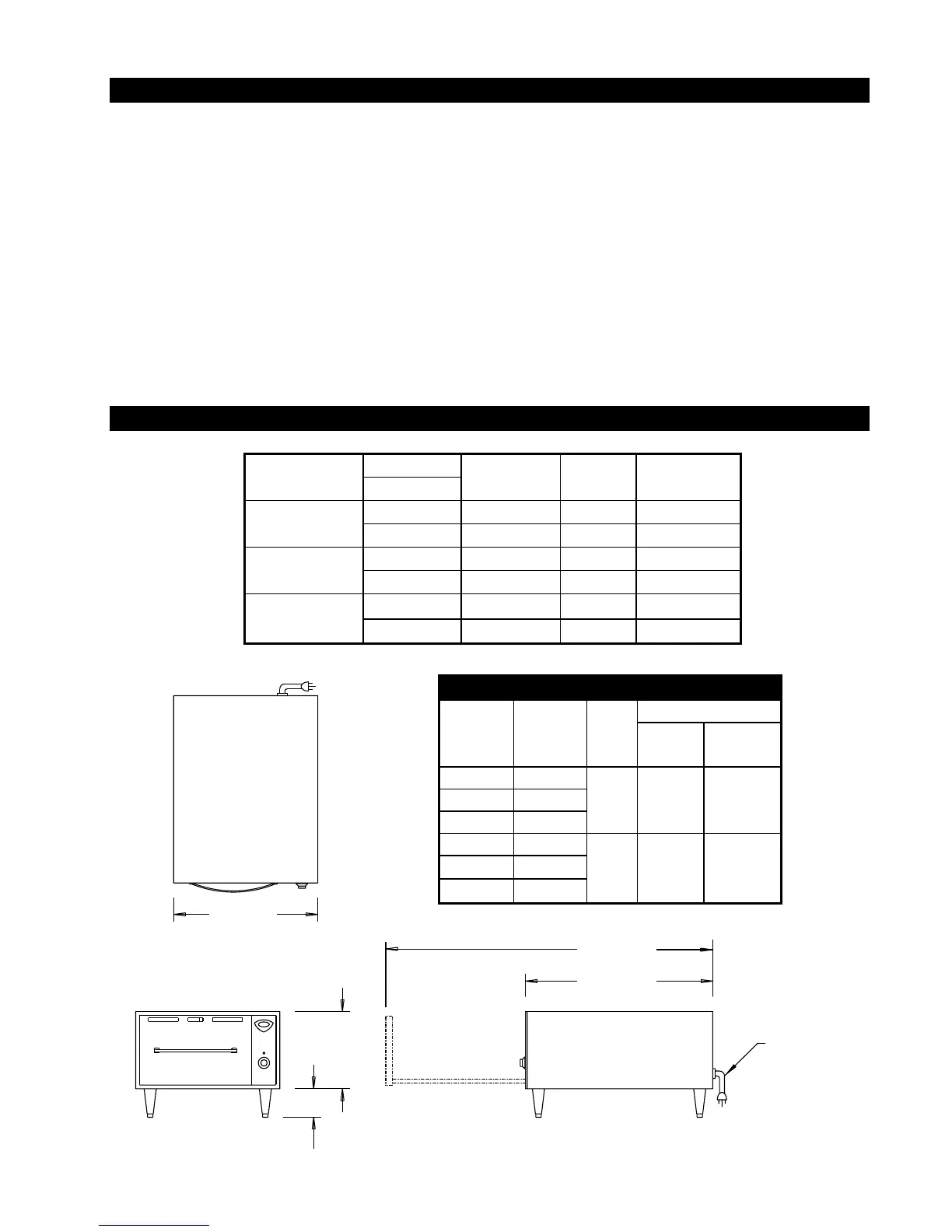

SPECIFICATIONS
MODELS
VOLTS
WATTS AMPS POWER CORD
50/60 Hz 1ø
DW1, DWN1
120 VAC 450 W 3.8 NEMA-5-15P
208/240 VAC 338/450 W 1.6/1.9 NEMA 6-15P
DW2, DWN2
120 VAC 900 W 7.5 NEMA-5-15P
208/240 VAC 676/900 W 3.3/3.8 NEMA 6-15P
DW3, DWN3
120 VAC 1350 W 11.3 NEMA-5-15P
208/240 VAC 1014/1350 W 4.9/5.6 NEMA 6-15P
4”
POWER
SUPPLY
CORD
A
B
D
C
IL2942
Overall Dimensions
Model
Height “A”
w/o Legs
Width
“B”
Depth
Drawer
Open “C”
Drawer
Closed “D”
DW1 10.875
29.25” 35.875” 21.5”DW2 21”
DW3 41.125”
DWN1 10.875
20.25” 35.875” 21.5”
DWN2 21”
DWN3 41.125”
