INSTALLATION continued
Setup
Setup the appliance only on a rm, level, non-combustible
surface. Verify local codes for requirements. Concrete, tile,
terrazzo or metal surfaces are recommended. Metal over
combustible material may not meet code for non-combustible
surfaces.
Install adjustable legs or optional casters, one on each corner of
the appliance, in the holes provided.
Verify that the unit sits rmly on ALL FOUR legs. With a spirit
level, check that the appliance is level front-to-back and side-
to-side. With the adjustable legs, adjust as required to level the
appliance. All four legs must be adjusted to rmly contact the
oor in order to prevent tipping.
If drawers were removed during installation, install drawer(s) in
unit:
a. Check the roller catch inside the cabinet. The spring-loaded roller arm must be extended.
b. With the front of the drawer assembly tipped downward, engage the roller on the drawer with
the cabinet drawer slide.
c. Raise the drawer to the horizontal position until the drawer-mounted slide engages the dual
roller assembly on the cabinet.
d. Slide the drawer in until the catch engages. The drawer should remain tightly closed.
e. Slide the drawer out. The drawer stop should prevent the drawer from coming all of the way
out.
f. Install drawer insert pans.
Avoid storing ammable or combustible materials in, on or near the appliance.
Electrical
Refer to electrical specications on page 3. Circuit must meet or exceed the amperage and
wattage requirements listed.
120 Volt units require a properly grounded NEMA 5-15R
receptacle:
208/240 Volt units require a properly grounded NEMA
6-15R receptacle:
The ground prong of the power cord is part of a
system designed to protect you from electric shock
in the event of internal damage. DO NOT cut off the large round ground prong, or
twist a blade to t an existing receptacle.
IMPORTANT:
Damage due to being connected to the wrong voltage or phase is NOT covered by warranty.

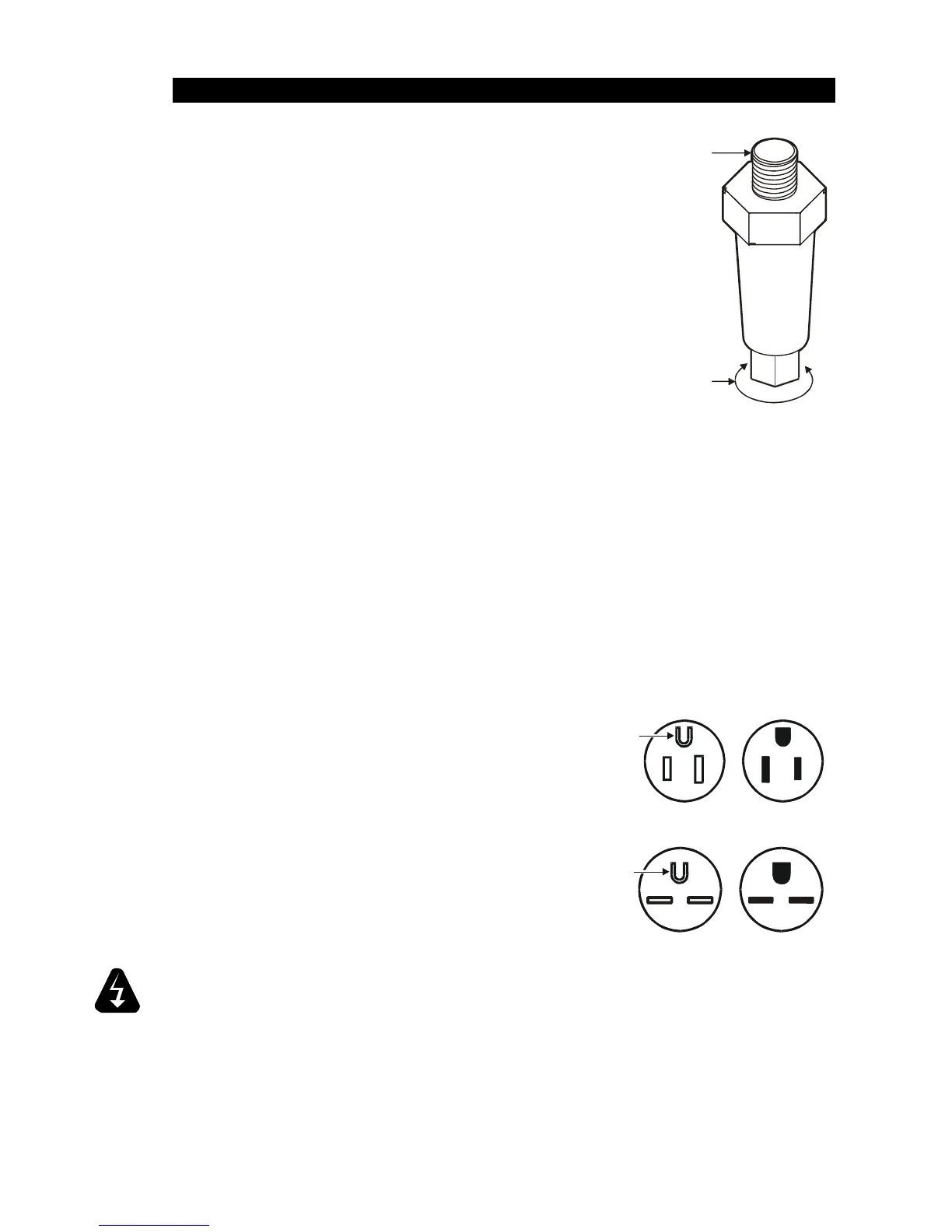

IL2926
MOUNTS INTO
THREADED
HOLES IN
WARMER
FRAME
TURN BOTTOM
PORTION TO
ADJUST
GROUND
PIN
NEMA 5-15P
PLUG
NEMA 5-15R
RECEPTACLE
IL2927
IL2928
NEMA 6-15P
PLUG
GROUND
PIN
NEMA 6-15R
RECEPTACLE
