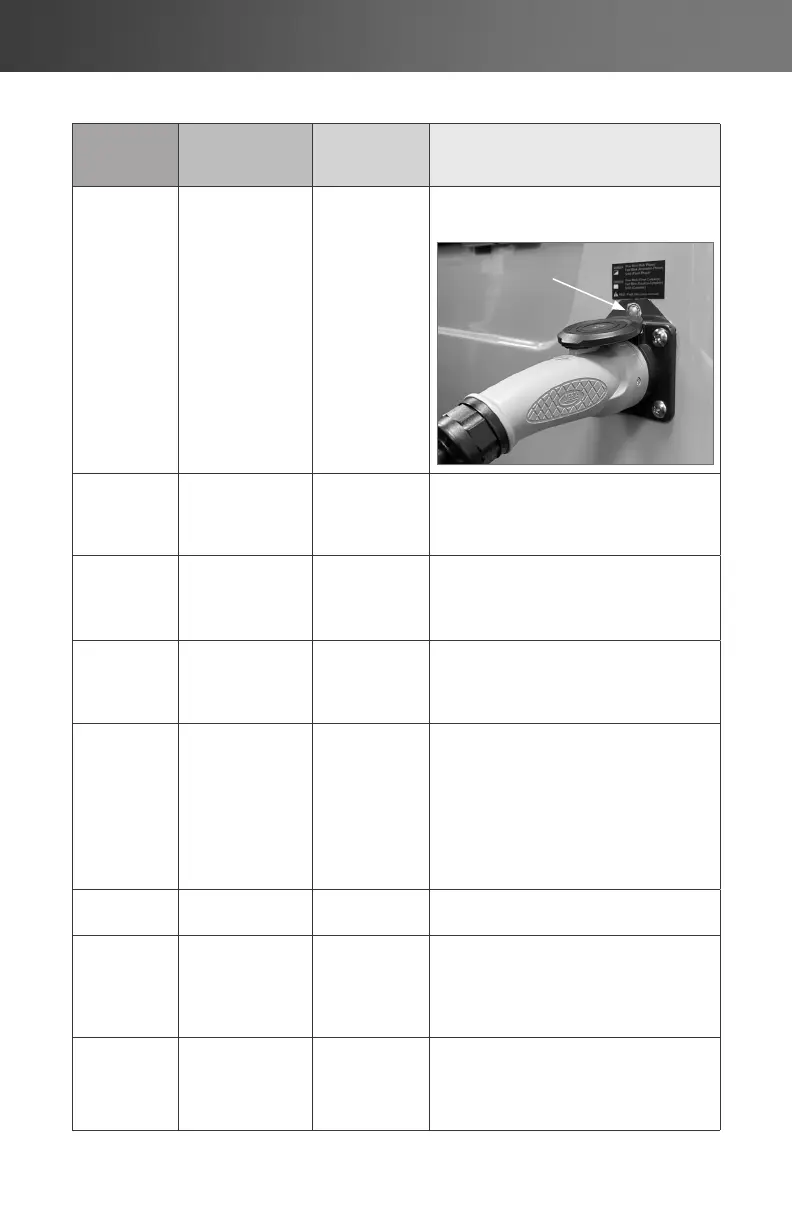

LITHIUM BATTERY INDICATORS
70 71
FAULT
CHARGE
STATUS
CHARGE
COMPLETE
DESCRIPTION
Solid on Solid on Solid on LED check for a few seconds
during charger initialization
Slow blink Off
Bulk/STAR EV charge cycle
phase (constant power or
constant current)
Fast blink Off
Absorption/Plateau charge cycle
phase (constant voltage).
Greater than 80% charged.
Solid on Off
Finish charge cycle phase
(constant current) Not all charge
profiles include a finish phase.
Off Fast blink
Balance/Equalize phase.
An extended charge cycle is
occurring because a trigger
condition has been met (cycle
count, etc). Not all charge profiles
include a Balance/Equalize phase.
Off Solid on Charge cycle complete.
Off Slow blink
Charge cycle complete. Post
Charge phase (constant voltage
float, etc). Not all charge profiles
include a Post Charge phase.
Slow blink Slow blink Slow blink
Charger Bluetooth connected to a
smart phone or device, LEDs blink
at the same time.
LED LIGHT
