SF-HC25C3 Height Controller
7
3. Installation
3.1 Installation
Highly controller bottom four M4 screw hole for fixed box body onto the
mounting plate.Its size is shown in figure 3-1-1。

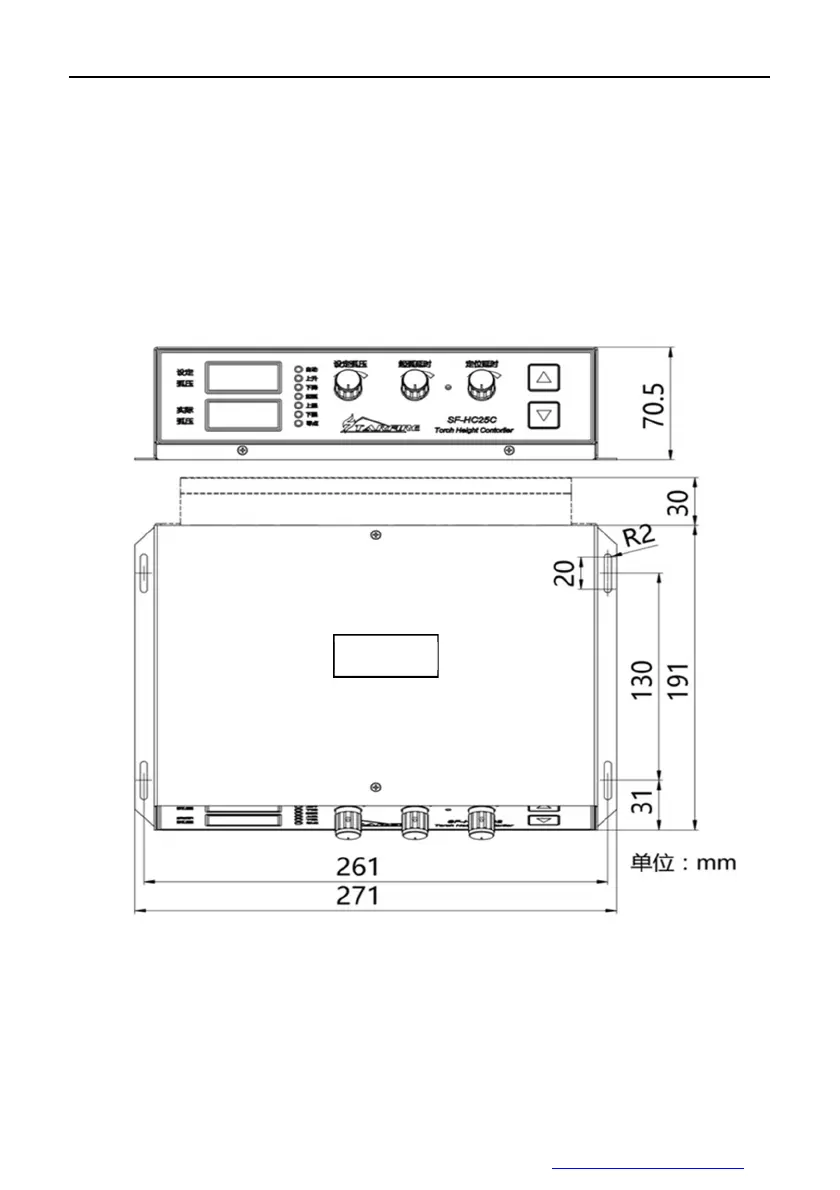

Figure the 3-1-1: host controller
3.2 the electrical installation
上面
