Starfire SF-HC25C3 User Manual

SF-HC25C3 Height Controller
8

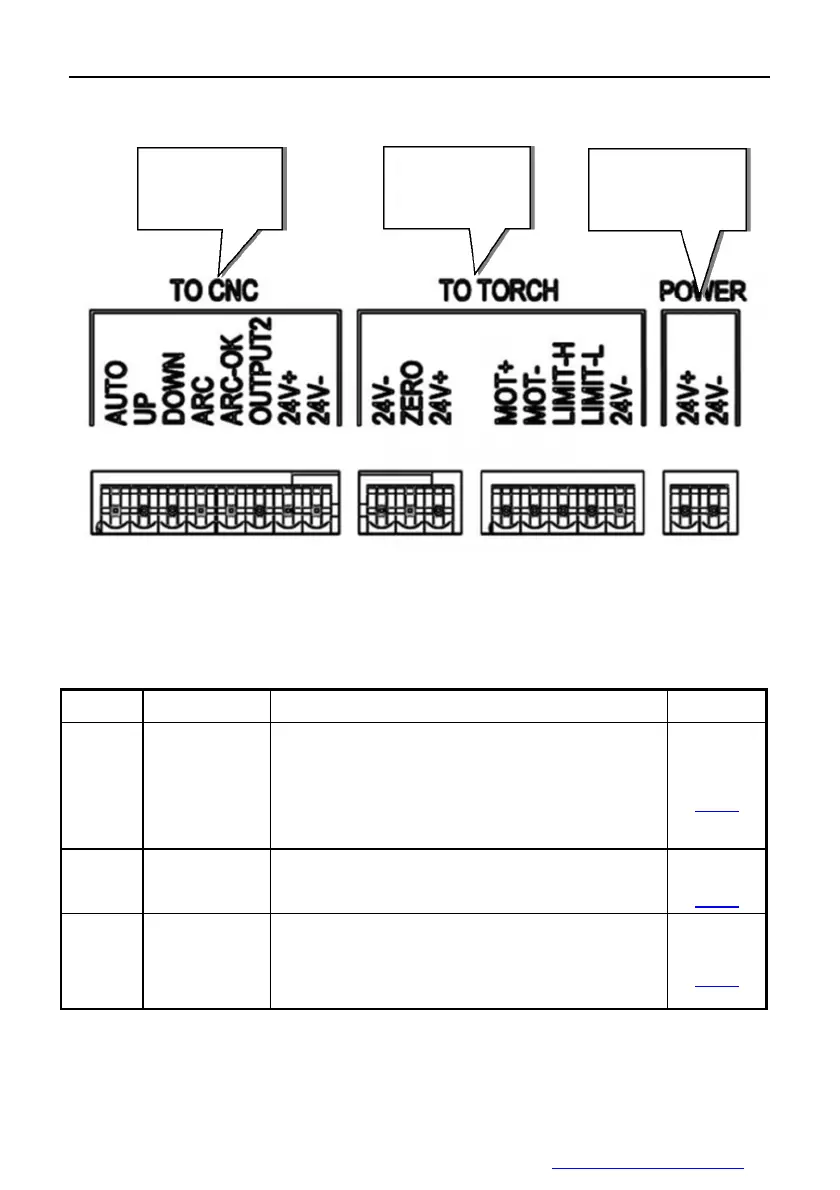

3.2.1 The interface definition
P1 P2 P3
figure 3-2-1
table 3-2-1
label attribute explain
note
P1
Control
input
CNC system control input: automatically,
lift, rev arc and success feedback, this
interface on the 24 v power supply is
isolated and P1, provided by the CNC.
figure
3-2-2
P2
Input/outpu
t
Improve motor and collision signal and limit
signals.
figure
3-2-3
P3
The power
input
24 v power supply, its power consumption,
improve the motor power, impact signals
and limit the interfaces provide electricity.
figure
3-2-4
The power
input
Connected
lifting motor
Connect CNC
system
