Instruction manual
9

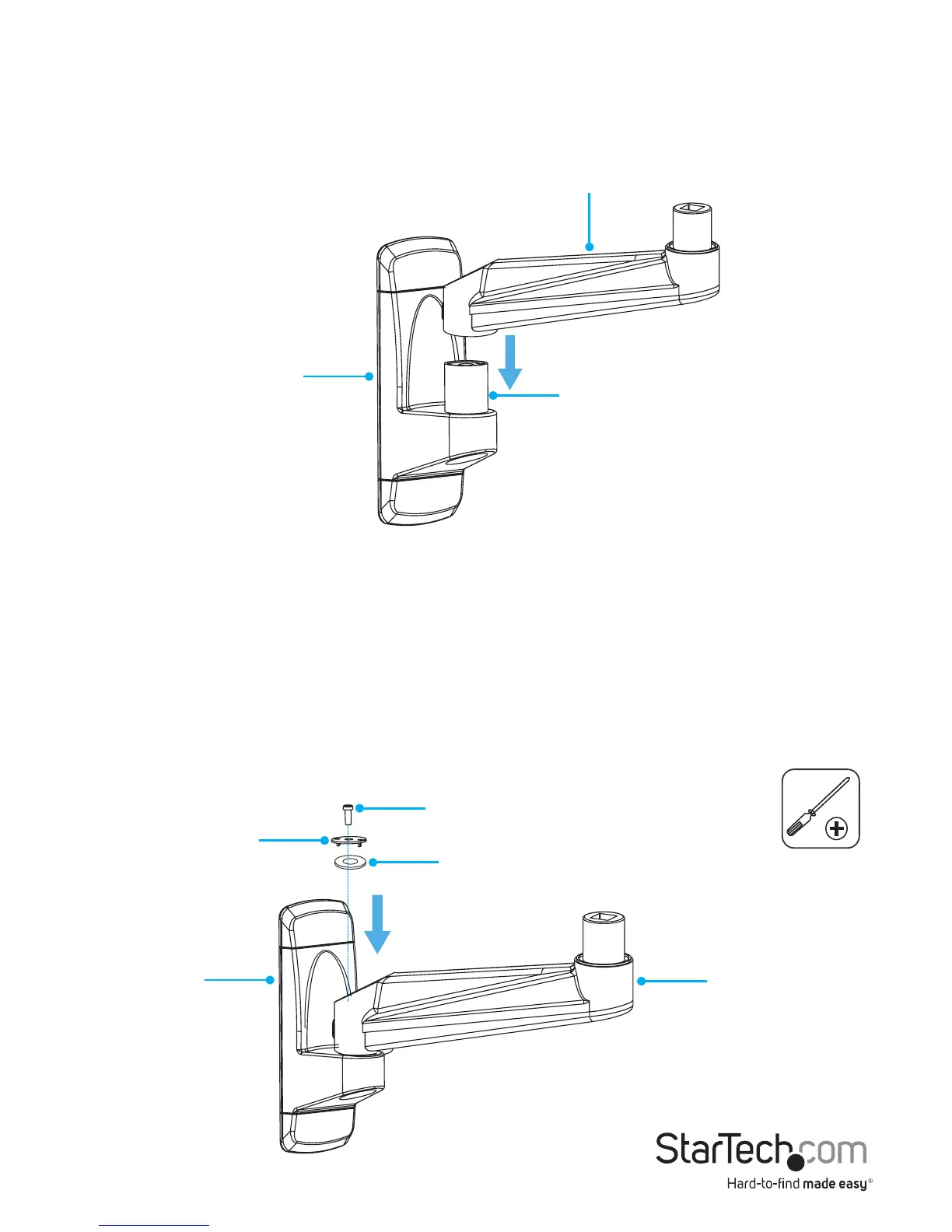

Attach the mounting arms
1. Place one of the mounting arms over the projection on the wall plate. (gure 4)
gure 4
2. Place a mounting-arm washer into the joint in the mounting arm.
3. Place the wall-plate retainer onto the mounting-arm washer.
4. Insert an M8x16 mm screw through the wall-plate retainer, mounting-arm washer,
and into the mounting arm. (gure 5)
5. Use a Phillips type screwdriver to tighten the screw into place.
Warning! Do not over-tighten the screw. If you encounter resistance while you’re
tightening the screw, stop tightening.
gure 5
Wall plate
Mounting arm
Projection
M8x16 mm screw
Wall-plate retainer
Mounting-arm washer
Wall plate
Mounting arm
