StarTech.com ARMPIVOTV2 - Adjusting Monitor Tilt Angle

Instruction manual
15

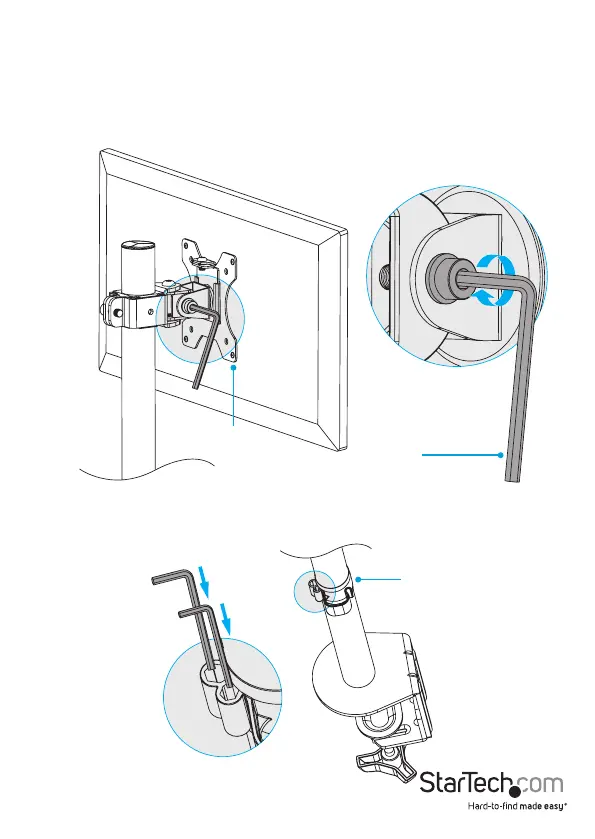

Adjust the tilt angle of your monitor
1. To change the angle that the monitor is tilted at, use the 6 mm hex key to turn the
screw in the side of the VESA monitor mount counterclockwise.
2. When the screw is loose, position the monitor at the angle that works best for you.
3. Use the 6 mm hex key to turn the screw clockwise to tighten it. (gure 13)
gure 13
6 mm hex key
VESA monitor mount
4. When you’re done adjusting the tilt angle, you can store the hex keys in the hex key
holder in the cable-management clip. (gure 14)
gure 14
Cable-management clip
