Page 5
INSTALLATION & USER GUIDE

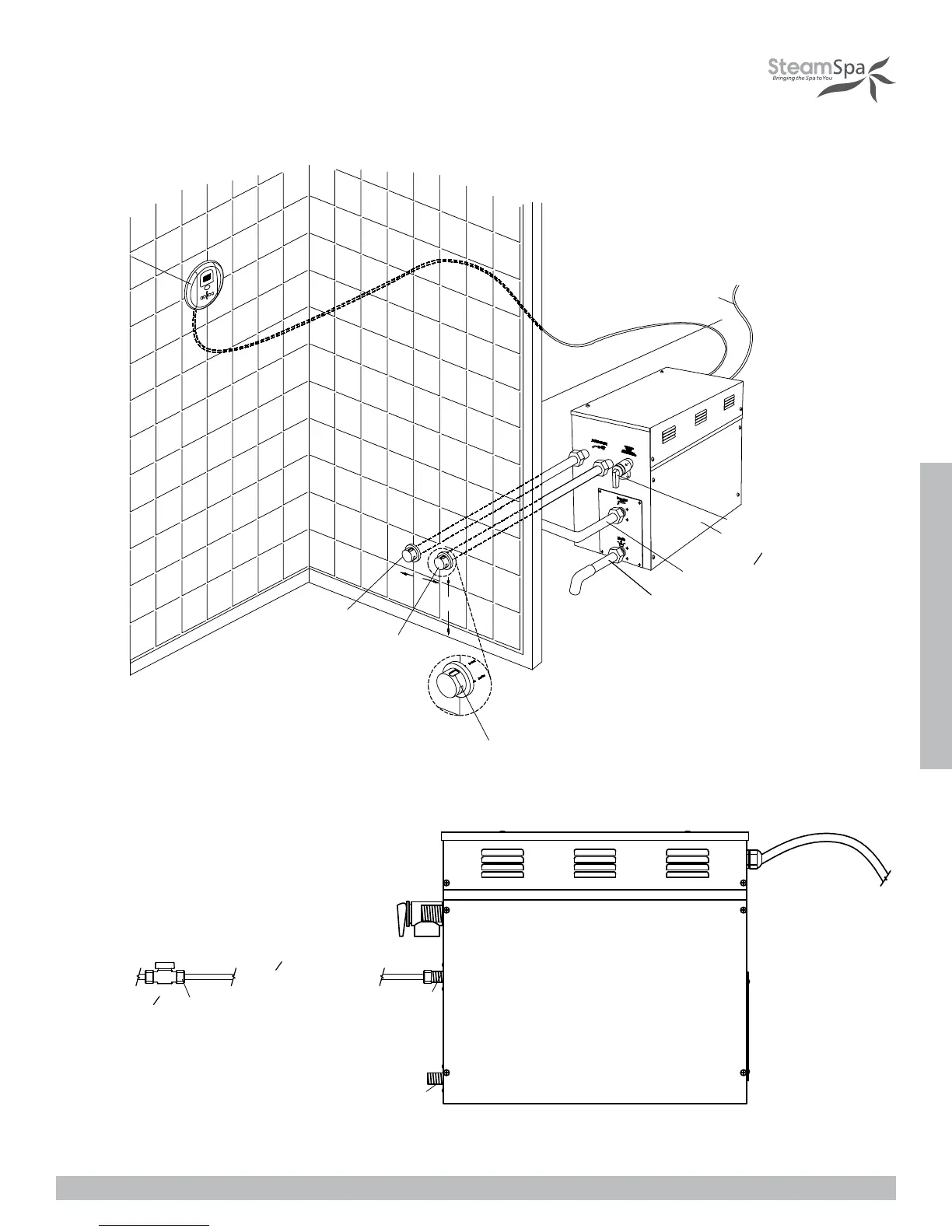

INSTALLATION DRAWING OF STEAM GENERATOR
ATTENTION! The drawing is only for explanation purposes. As for practical design of steam room, please consult with a qualified
designer, architect or builder.
Dual Steam
Outlet for
10.5kw 12kw
15kw
Single Steam
Outlet
Control Panel
AROMA TRAY
RESERVOIR
Supply
Pressure Relief Valve
Steam Generator
Water Inlet
3
8
"stainless
steel braided flex hose
Water Drain Valve
12"
12"
SAFETY
VALVE
WATER
INLET
PIPE
WATER
DRAINAGE
3
8
"STAINLESS
STEEL BRAIDED FLEX HOSE
1
2
"CONNECTION
WATERLINE
Shut off
Valve
