6.6.1. Power Supply
Single phase, 215-240V，50/60Hz power supply:
Connect the live wire to the terminal labeled as “L”; connect the null wire to the terminal labeled as
“N” ; and connect the earth wire to the terminal labeled as “ ”. Please see figure 14.

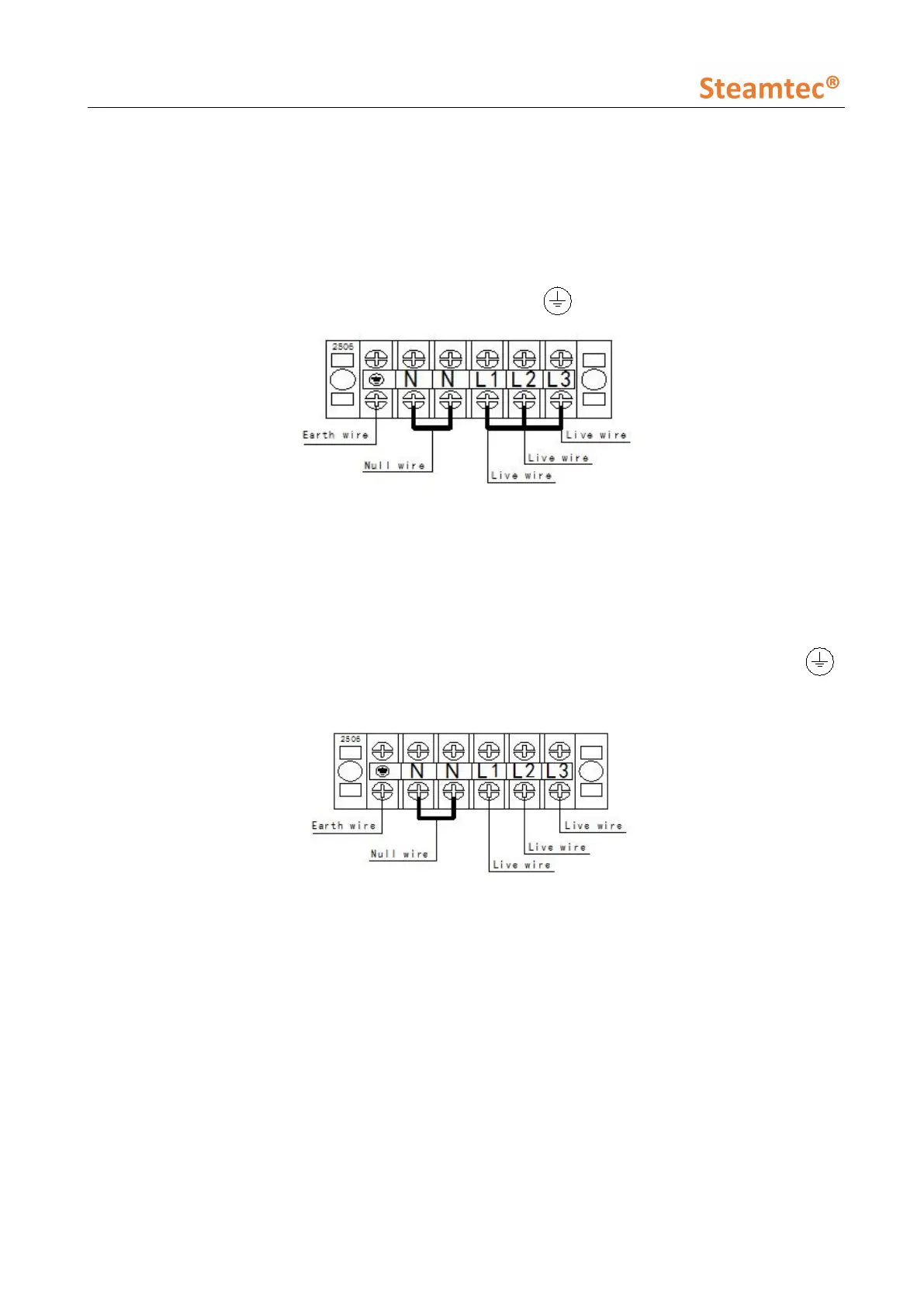

Figure 14 Single phase, 215-240V
Three phases, 380-415V，50/60Hz power supply :
Connect the 3 live wires to the terminal labeled as “L1”, “L2” and “L3” respectively; connect the null
wire to the terminal labeled as “N”; and connect the earth wire to the terminal labeled as “ ”.
Please see below figure 15.
Figure 15 Three phases, 380-415V
6.6.2. Wire Diagram
