6.5. Installation of pipeline

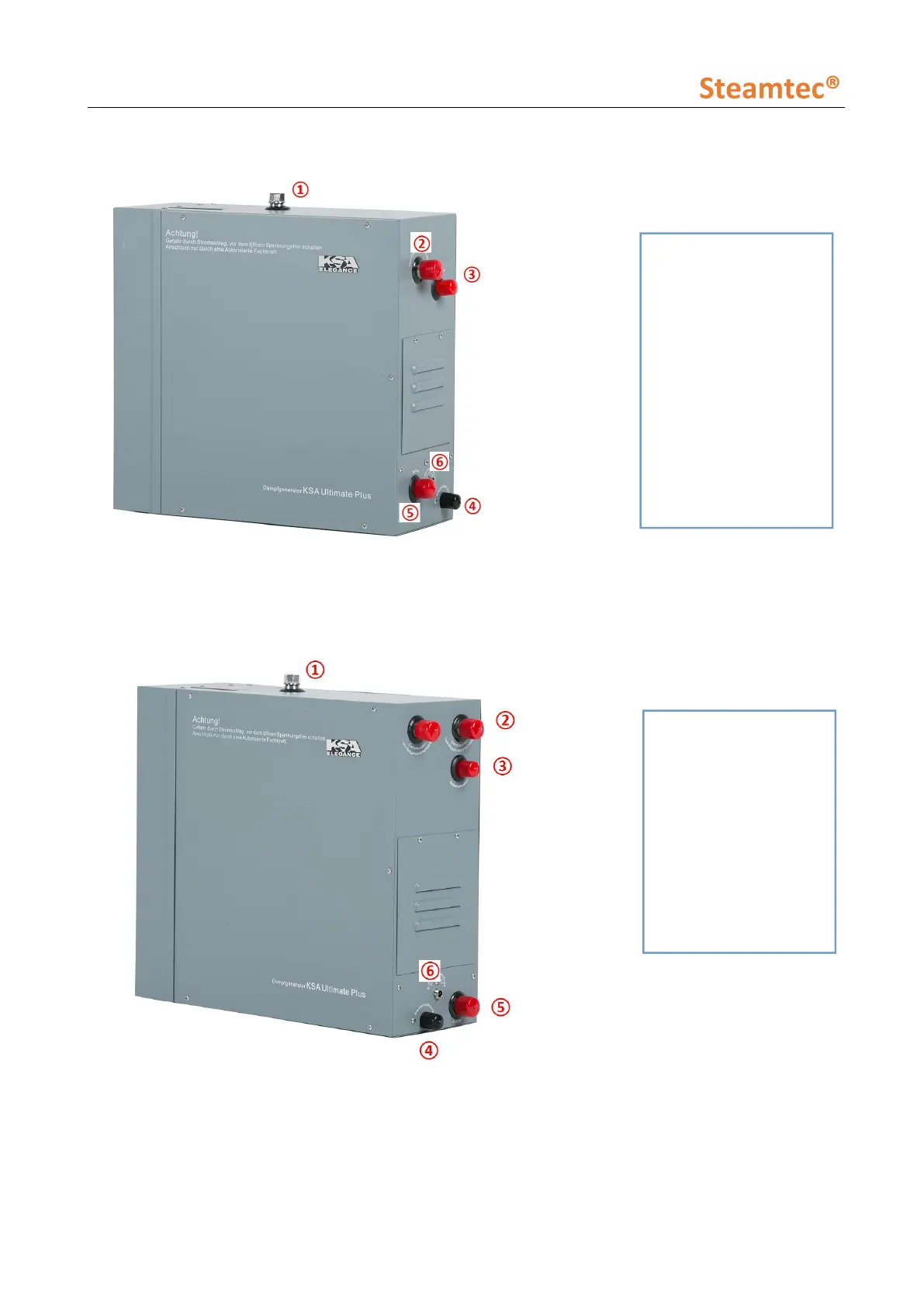

Figure 11 3kw- 13.5kw pipe connection
Figure 12 15kw-24kw pipe connection
3kw ~ 13.5kw
① Service hole 1/2’’
② Steam outlet
3kw~6kw: 1/2’’
7kw~13.5kw:3/4’’
③ Safety valve 1/2’’
④ Water inlet 1/2’’
⑤ Drain outlet 3/4’’
⑥ Power supply for
drain valve
15kw ~ 24kw
① Service hole 1/2’’
② Steam outlet 3/4’’
③ Safety valve 1/2’’
④ Water inlet 1/2’’
⑤ Drain outlet 3/4’’
⑥ Power supply for
drain valve
