Steamtec AIO - Controller Parameters and Dimension

_________________________________________________________________________________
TOLO SAUNA info@tolosauna.com www.tolosauna.com
8
1
2
3
4
6
5
12
9
7
8
10 11
13
14

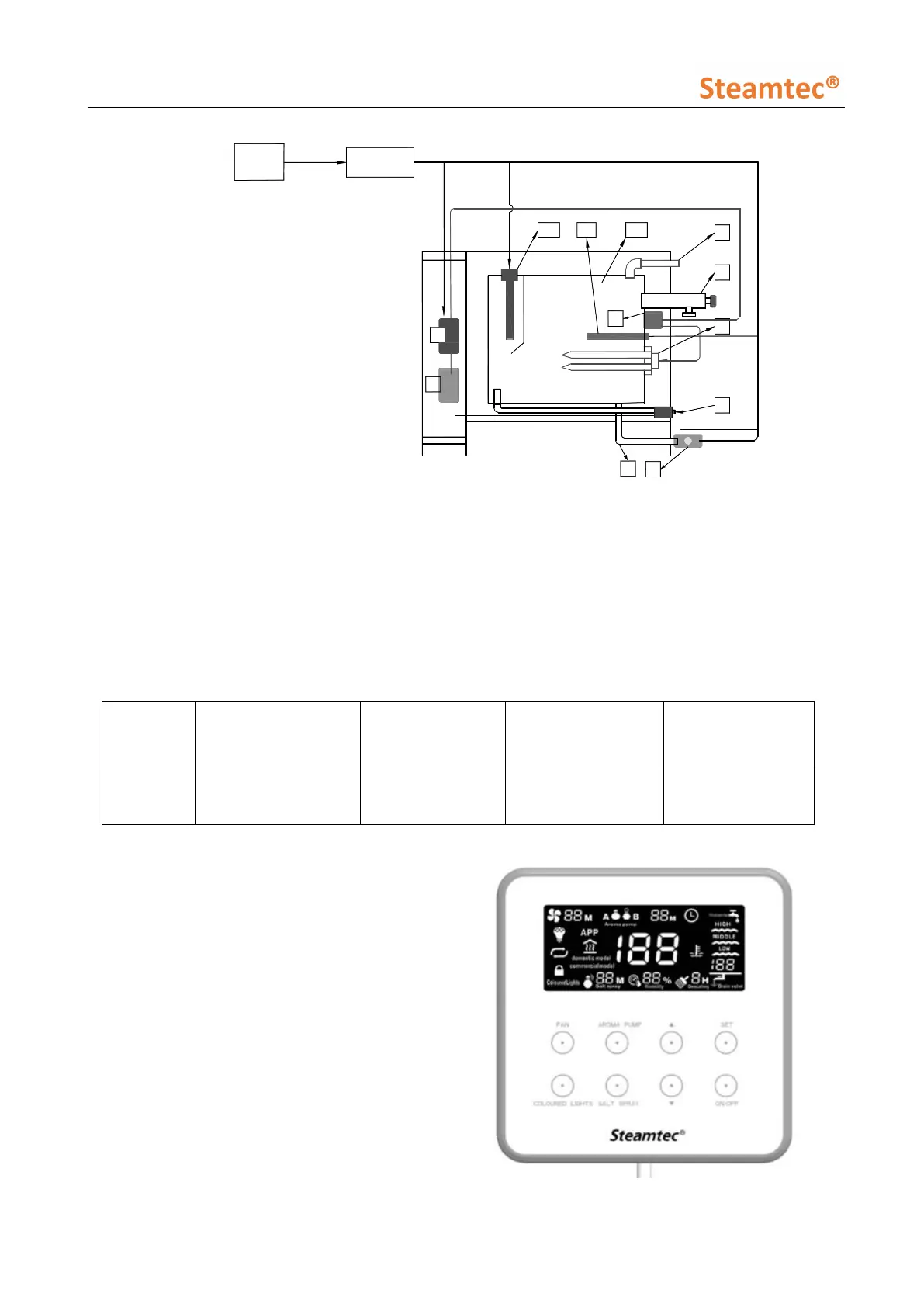

Figure 3 Steam generator schematic diagram
5.3. Controller parameters and dimension
Controller
model
Controlling time
range (minutes)
Temperature
showing range
Temperature
controlling range
Dimension
(mm)
AIO
1~60 or long-term
(CH)
6～60℃
(43℉～140℉)
35～60°C
(95℉～140℉)
103*103*45
Table 3
Notes:
AIO Controller can be installed inside the
steam room.
However, we recommend you to install the
controller outside the steam room to extend
its service life.
Figure 4 AIO controller
1. Steam outlet
2. Safety valve
3. Heating elements
4. Solenoid water inlet
valve
5. Drain valve
6. Drain pipe
7. High-temperature
protection
8. Wire terminal
9. Sub-board (relay)
10. Water level sensor
11. Temperature sensor
12. Inner water tank
13. Central box 14. Controller
