Steamtec AIO - Page 23

_________________________________________________________________________________
TOLO SAUNA info@tolosauna.com www.tolosauna.com
23
terminal blocks
heating element 1 heating element 2
heating element 3 heating element 4
heating element 6heating element 5
L1 L2 L3
N
L3L2L1
Over-heat protection
4506
NO
COM COM
NO
5 46
13
NO
COM
NO
COM COM
NO
5
4
6
13
NO
COM
cathode
AIO 15kw European 380 ~ 415V 3 Phases

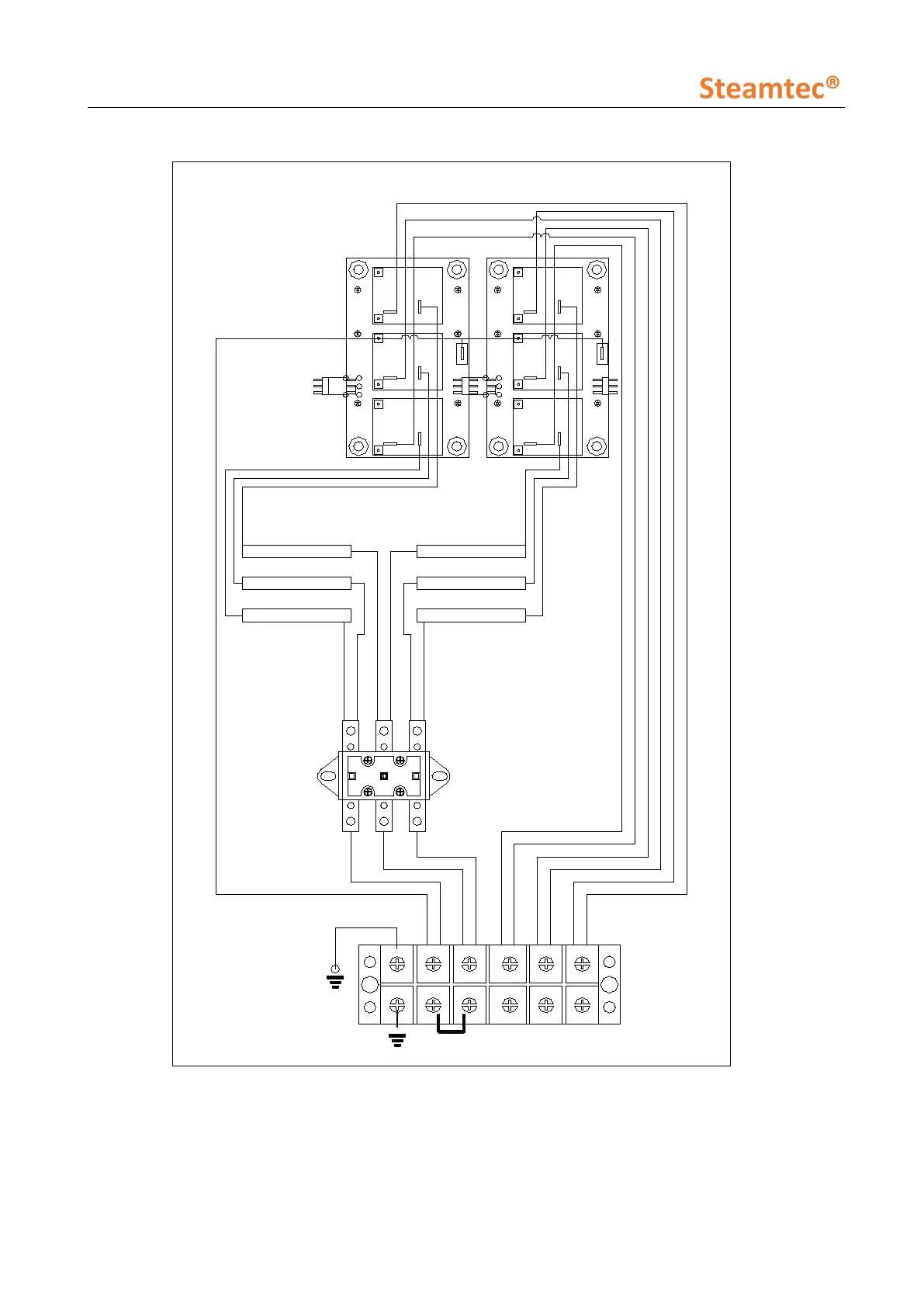

Figure 19
