SteFly Canopy Flasher Manual Version 1.2 8

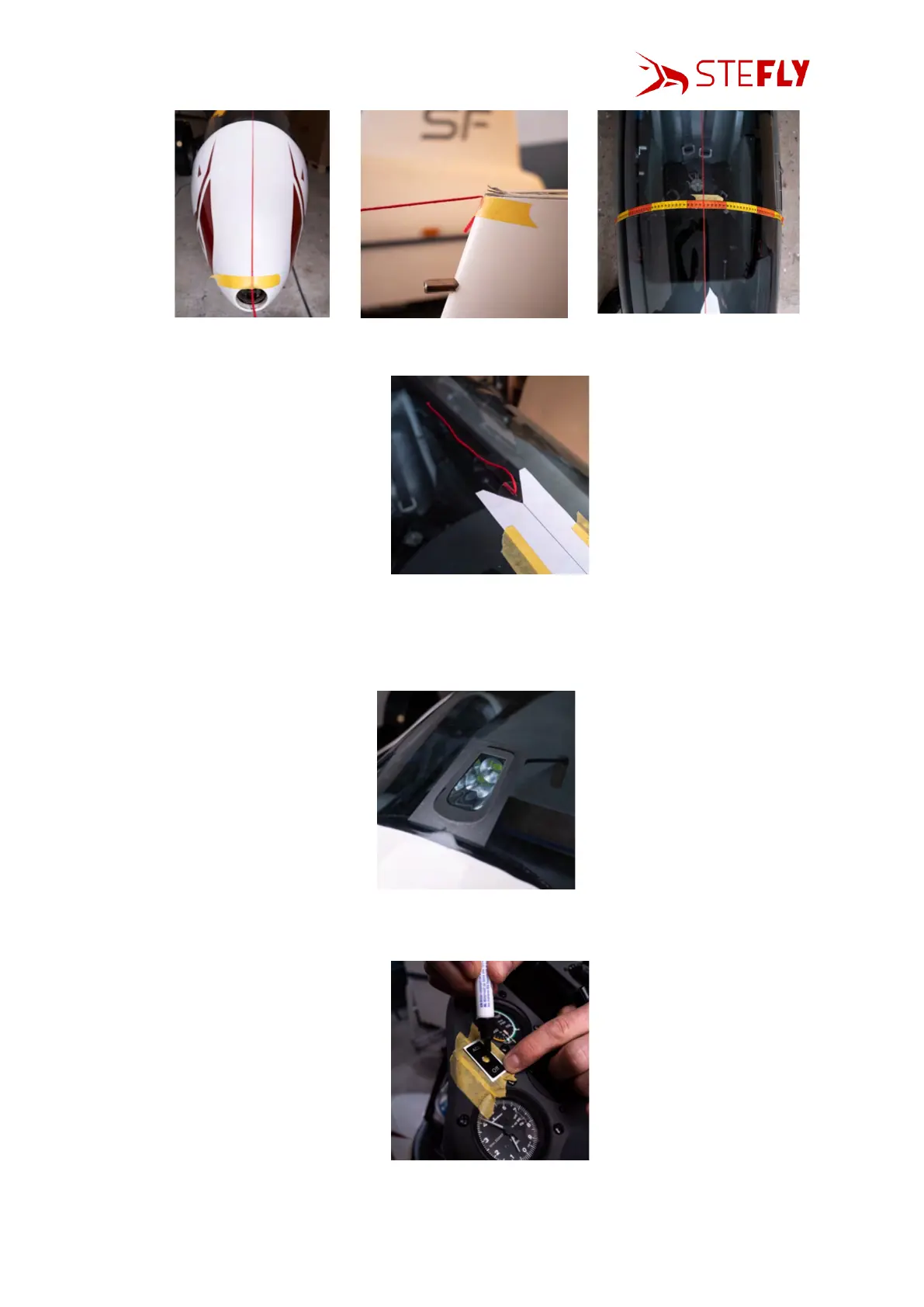

• Optional: attach the yaw string on the center line using the paper template
• Stick the adhesive template with the outline of the canopy flasher on the outside of the
canopy. Remove the protective film from the canopy flasher and stick it to the canopy
according to the template. Once the 3M VHB Tape is in contact with the canopy, do not try to
reposition the canopy flasher. Apply moderate pressure for durable adhesion.
• Position the on/off switch in the instrument panel. The labeling board of the switch also
serves as a drilling template (drilling diameter 6 mm).
• Fasten the control box in front of the instrument panel (screws and clamps / cable ties /
Velcro)
