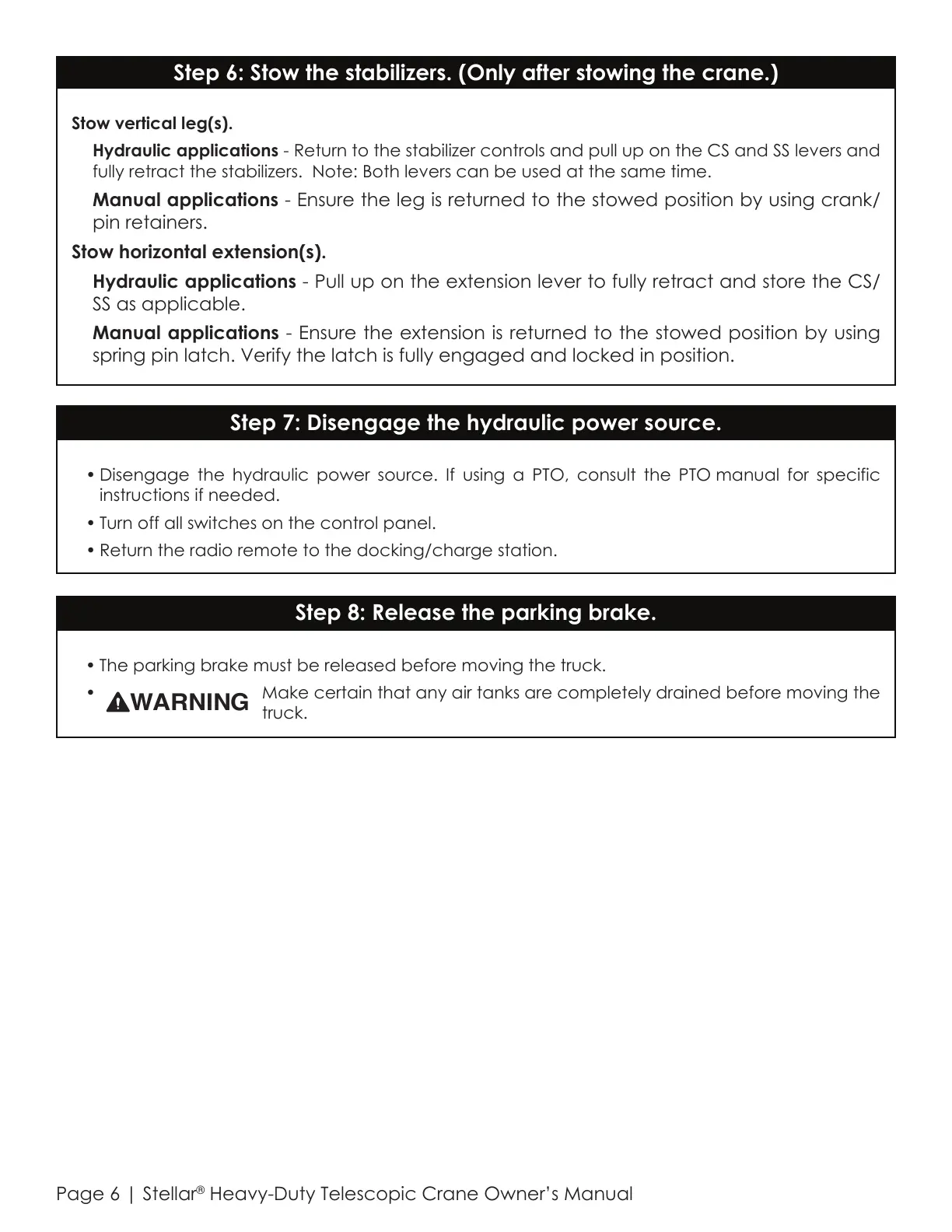

Page 6 | Stellar
®
Heavy-Duty Telescopic Crane Owner’s Manual
• The parking brake must be released before moving the truck.
•
Make certain that any air tanks are completely drained before moving the
truck.
• Disengage the hydraulic power source. If using a PTO, consult the PTO manual for specific
instructions if needed.
• Turn off all switches on the control panel.
• Return the radio remote to the docking/charge station.
Stow vertical leg(s).
Hydraulic applications - Return to the stabilizer controls and pull up on the CS and SS levers and
fully retract the stabilizers. Note: Both levers can be used at the same time.
Manual applications - Ensure the leg is returned to the stowed position by using crank/
pin retainers.
Stow horizontal extension(s).
Hydraulic applications - Pull up on the extension lever to fully retract and store the CS/
SS as applicable.
Manual applications - Ensure the extension is returned to the stowed position by using
spring pin latch. Verify the latch is fully engaged and locked in position.
Step 8: Release the parking brake.
Step 7: Disengage the hydraulic power source.
Step 6: Stow the stabilizers. (Only after stowing the crane.)
