Stenner Pumps 85M5 - INSTALLATION DIAGRAM

US and Canada 800.683.2378, International 904.641.1666 Classic Series
17

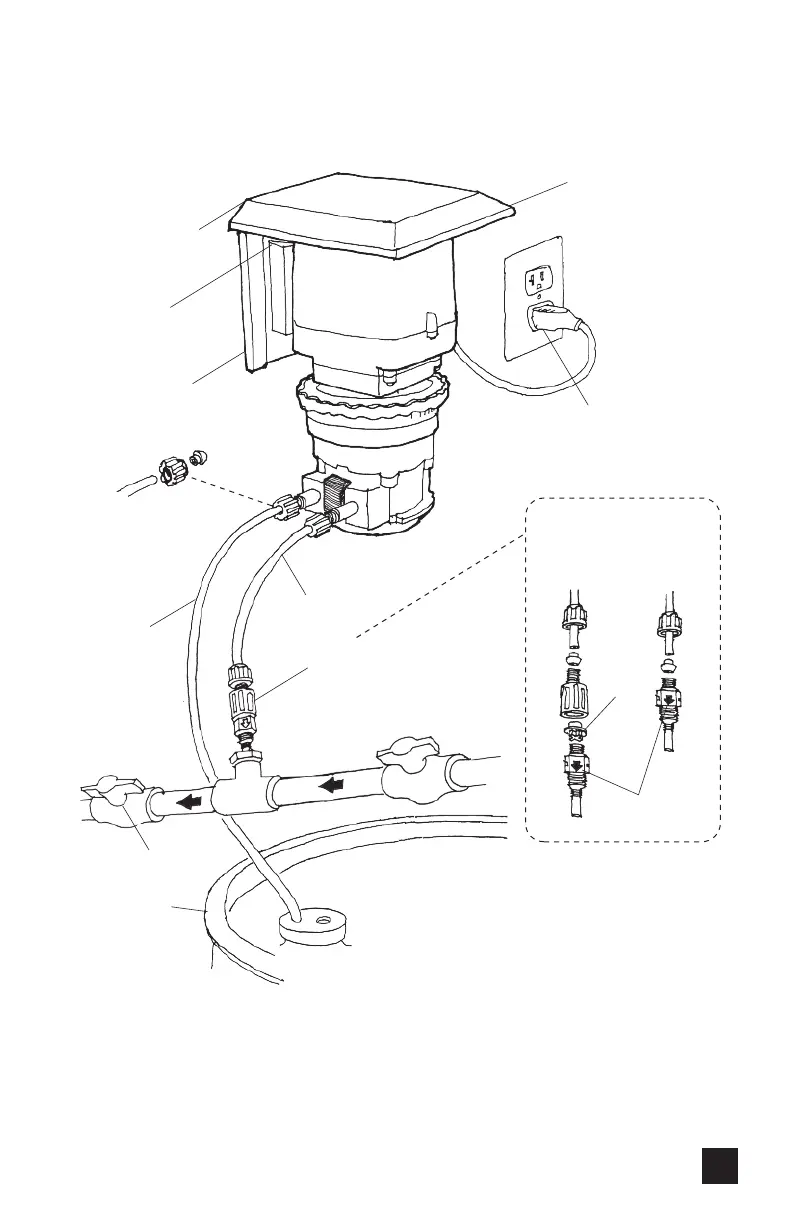

INSTALLATION DIAGRAM
Rain Roof slides into
wall mounting bracket
(no tools necessary).
On/Off Switch (under
roof, not visible this view)
Vertical Wall Mounting Bracket
(requires 2 screws)
Discharge Line
Disassembled View
Suction Line
Solution Tank
Shut-Off Valve
Grounded Power Outlet;
protected by Ground-Fault
Circuit-Interrupter (GFCI)
Always use Rain Roof
for outdoor use or if
metering pump is
subject to washdowns.
Injection
Fitting
25 psi max.
Duckbill
Check Valve
100 psi max.
Flow direction
of solution
Disassembled View
Duckbill
Duckbill Check Valve
or Injection Fitting
